2GR-FSE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE COOL AIR INTAKE DUCT SEAL Removal
3. REMOVE V-BANK COVER Removal
4. REMOVE NO. 1 AIR CLEANER INLET Removal
5. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair
6. REMOVE ENGINE UNDER COVER (for 2WD)
7. REMOVE ENGINE UNDER COVER (for 4WD)
8. REMOVE REAR ENGINE UNDER COVER LH (for 2WD)
9. REMOVE V-RIBBED BELT Removal
10. REMOVE OIL FILTER BRACKET (for 4WD) Removal
11. REMOVE OIL FILTER BRACKET SUB-ASSEMBLY (for 4WD) Removal
12. DISCONNECT NO. 1 COOLER REFRIGERANT SUCTION HOSE Removal
13. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY Removal
14. REMOVE COOLER COMPRESSOR ASSEMBLY (for 2WD) Removal
15. REMOVE COOLER COMPRESSOR ASSEMBLY (for 4WD) Removal
16. REMOVE CRANKSHAFT POSITION SENSOR

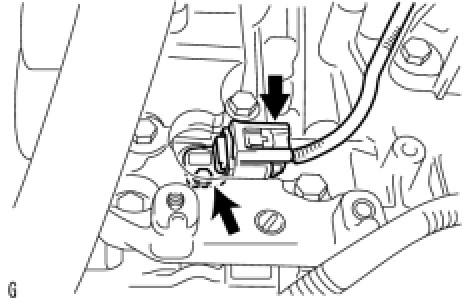

(a) Disconnect the sensor connector.
(b) Remove the bolt and sensor.
