Installation

2GR-FSE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSTALLATION

INSTALLATION

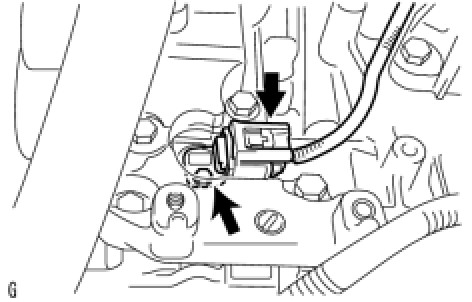

1. INSTALL CRANKSHAFT POSITION SENSOR
(a) Apply a coat of engine oil to the O-ring of the sensor.





(b) Install the sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(c) Connect the crankshaft position sensor connector.
2. ADJUST COMPRESSOR OIL Installation
3. INSTALL COOLER COMPRESSOR ASSEMBLY (for 2WD) Installation
4. TEMPORARILY TIGHTEN COOLER COMPRESSOR ASSEMBLY (for 4WD) Installation
5. INSTALL OIL FILTER BRACKET SUB-ASSEMBLY (for 4WD) Installation
6. INSTALL OIL FILTER BRACKET (for 4WD) Installation
7. TIGHTEN COOLER COMPRESSOR ASSEMBLY (for 4WD) Installation
8. CONNECT DISCHARGE HOSE SUB-ASSEMBLY Installation
9. CONNECT NO. 1 COOLER REFRIGERANT SUCTION HOSE Installation
10. INSTALL V-RIBBED BELT Installation
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
12. CHARGE REFRIGERANT Service and Repair
13. WARM UP ENGINE Service and Repair
14. INSPECT FOR LEAKAGE OF REFRIGERANT Service and Repair
15. INSTALL REAR ENGINE UNDER COVER LH (for 2WD)
16. INSTALL ENGINE UNDER COVER (for 4WD)
17. INSTALL ENGINE UNDER COVER (for 2WD)
18. INSTALL NO. 1 AIR CLEANER INLET Installation
19. INSTALL V-BANK COVER Installation
20. INSTALL COOL AIR INTAKE DUCT SEAL Installation
21. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
