Removal

2GR-FSE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: REMOVAL

REMOVAL

1. DISCHARGE FUEL SYSTEM PRESSURE Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

3. REMOVE COOL AIR INTAKE DUCT SEAL Removal
4. REMOVE ENGINE ROOM SIDE COVER RH Removal
5. REMOVE ENGINE ROOM SIDE COVER LH Removal
6. REMOVE V-BANK COVER Removal
7. REMOVE FRONT UPPER FENDER PROTECTOR LH Removal
8. REMOVE FRONT UPPER FENDER PROTECTOR RH Removal
9. REMOVE FRONT FENDER TO COWL SIDE SEAL LH Removal
10. REMOVE FRONT FENDER TO COWL SIDE SEAL RH Removal
11. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH Removal
12. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH Removal
13. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Removal
14. DRAIN ENGINE COOLANT Service and Repair
15. DISCONNECT NO. 2 VENTILATION HOSE Removal
16. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE Removal
17. REMOVE THROTTLE BODY Removal
18. REMOVE INTAKE AIR SURGE TANK Removal
19. REMOVE INTAKE MANIFOLD Removal

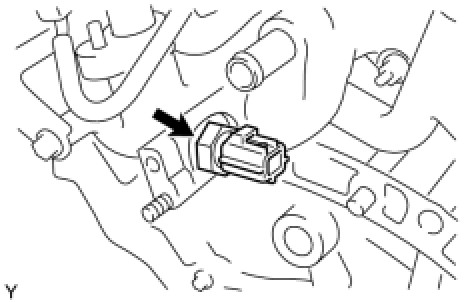

20. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
(a) Disconnect the sensor connector.





(b) Remove the sensor.
(c) Remove the gasket from the sensor.
