Side Turn Signal Light Assembly

LIGHTING: SIDE TURN SIGNAL LIGHT ASSEMBLY: INSPECTION

INSPECTION

1. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY

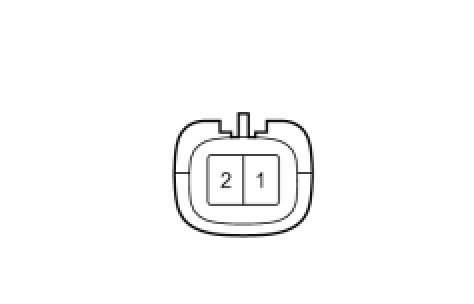

(a) Connect the (+) lead from the battery to terminal 2 and the (-) lead to terminal 1.
(b) Check that the side turn signal light comes on.
OK:
The light comes on.
If the result is not as specified, replace the side turn signal light assembly.
