LIGHTING: SIDE TURN SIGNAL LIGHT ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE OUTER MIRROR Removal
2. REMOVE OUTER MIRROR LIGHT ASSEMBLY

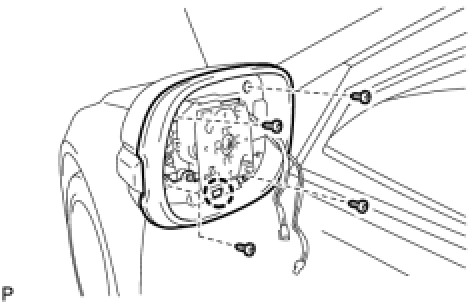

(a) Remove the 4 screws.
(b) Disengage the claw and remove the outer rear view mirror visor.

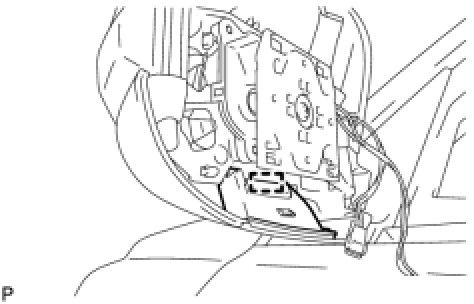

(c) Disengage the guide and remove the outer mirror light assembly.
3. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY

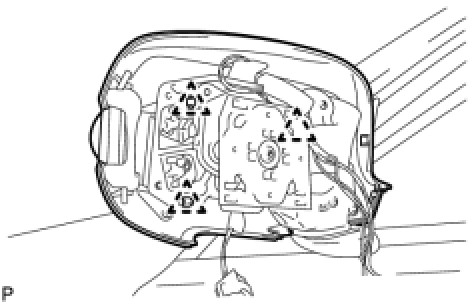

(a) Disengage the 3 clips.
(b) Partially remove the adhesive tape around the wire harness.
HINT: Remove the adhesive tape only as necessary to remove the wire harness.

(c) Disconnect the connector and remove the outer rear view mirror cover with side turn signal light.

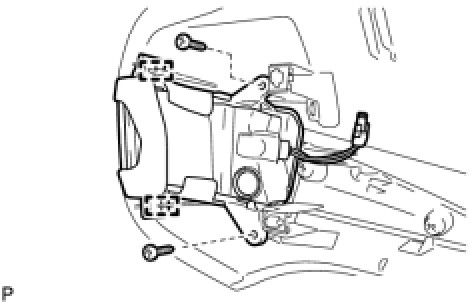

(d) Remove the 2 screws.
(e) Disengage the 2 guides and remove the side turn signal light assembly.
