Installation

LIGHTING: HEIGHT CONTROL SENSOR: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. INSTALL HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR





(a) Install the height control sensor with the 2 bolts.
Torque: 13.5 Nm (138 kgf-cm, 10 ft-lbf)

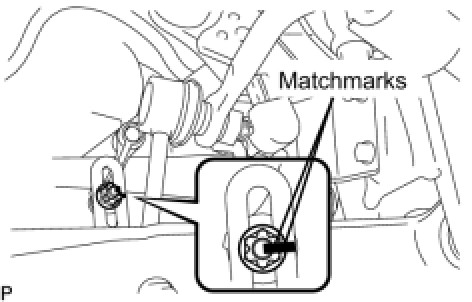

(b) Align matchmarks on the height control sensor and bracket.
(c) Install the nut.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
(d) Connect the connector.
(e) Install the rear tire.
2. INSTALL HEIGHT CONTROL SENSOR SUB-ASSEMBLY FRONT





(a) Install the height control sensor with the 2 bolts.
Torque: 13.5 Nm (138 kgf-cm, 10 ft-lbf)





(b) 4WD:
Install the height control sensor link with the bolt to the lower arm.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)





(c) 2WD:
Install the height control sensor link with the nut to the lower arm.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
(d) Install the front tire.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

5. ADJUST HEADLIGHT AIMING Adjustments
