Installation

LIGHTING: FOG LIGHT ASSEMBLY: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.





1. INSTALL FOG LIGHT BULB

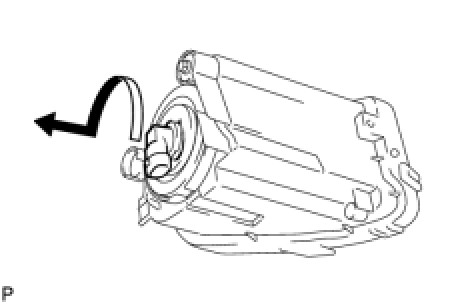

(a) Turn the fog light bulb in the direction indicated by the arrow and install it.





2. INSTALL FOG LIGHT ASSEMBLY
(a) Attach the 2 claws and install the fog light.
(b) Install the bolt.
3. INSTALL FRONT BUMPER ASSEMBLY Installation
4. INSTALL COOL AIR INTAKE DUCT SEAL Installation
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

7. ADJUST FOG LIGHT AIM
Adjustments
