Multiplex Communication System [AVC-LAN]

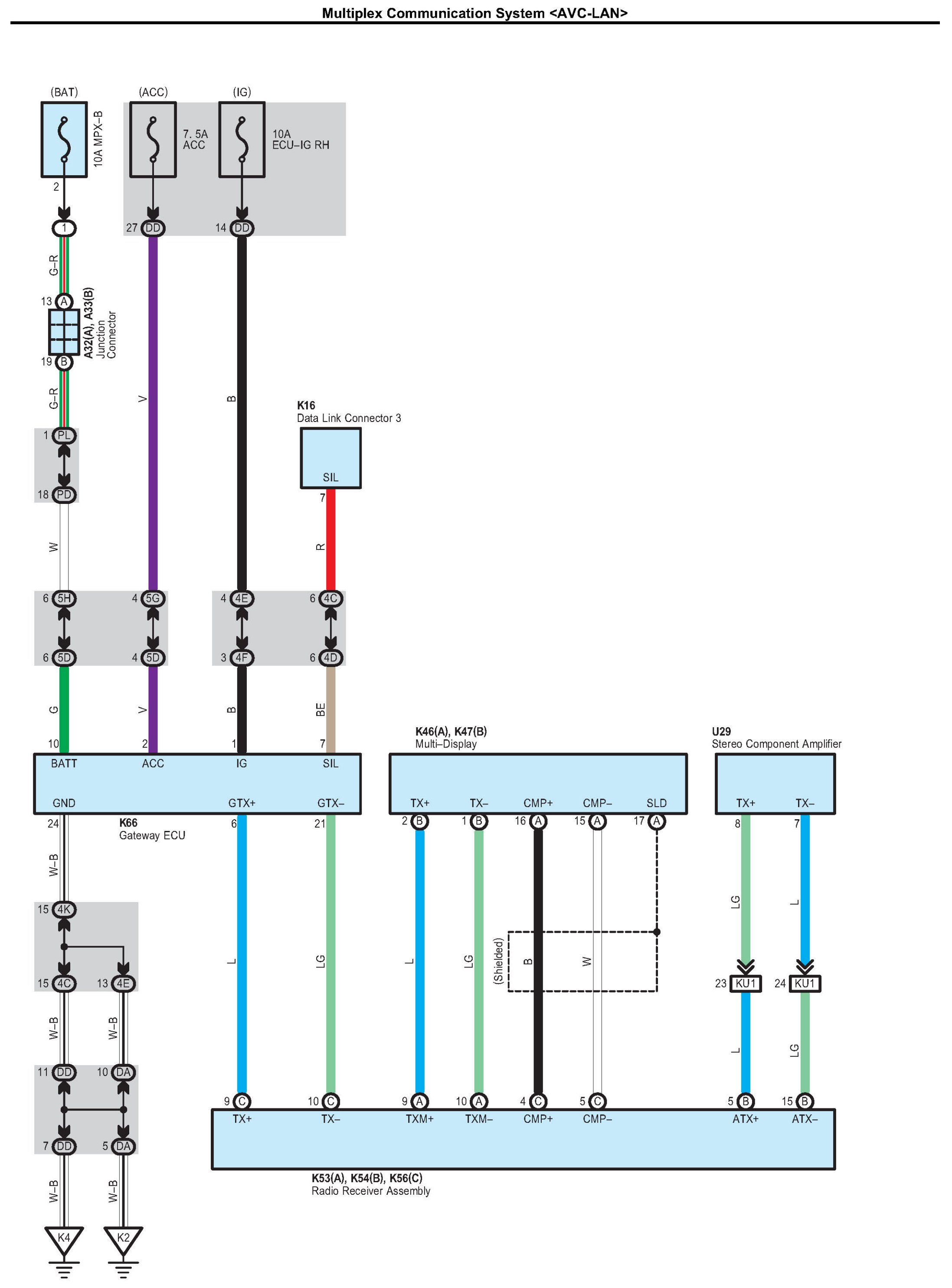

Multiplex Communication System [AVC-LAN]:

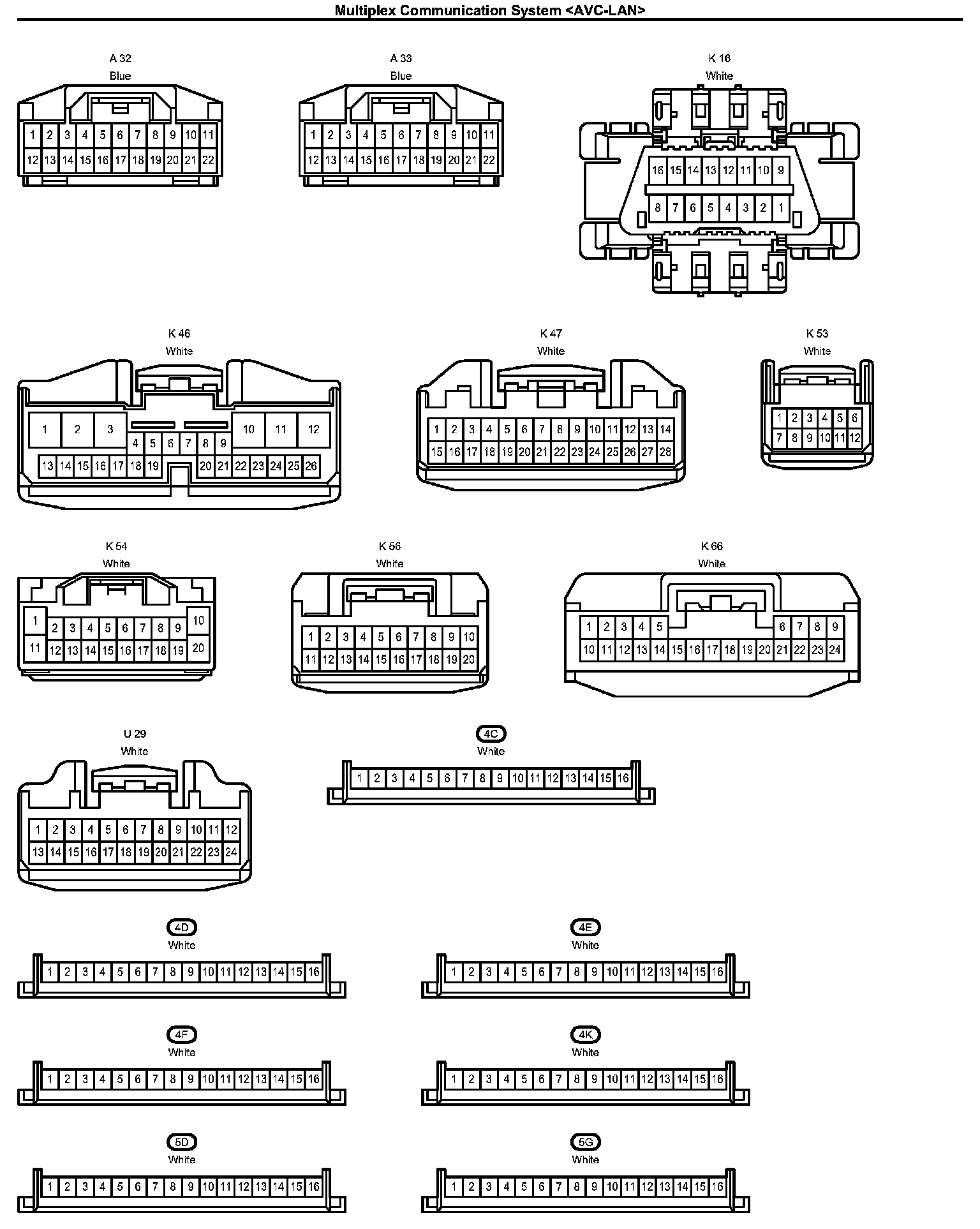

Connectors Part 1:

Connectors Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
