Rear Fog Light

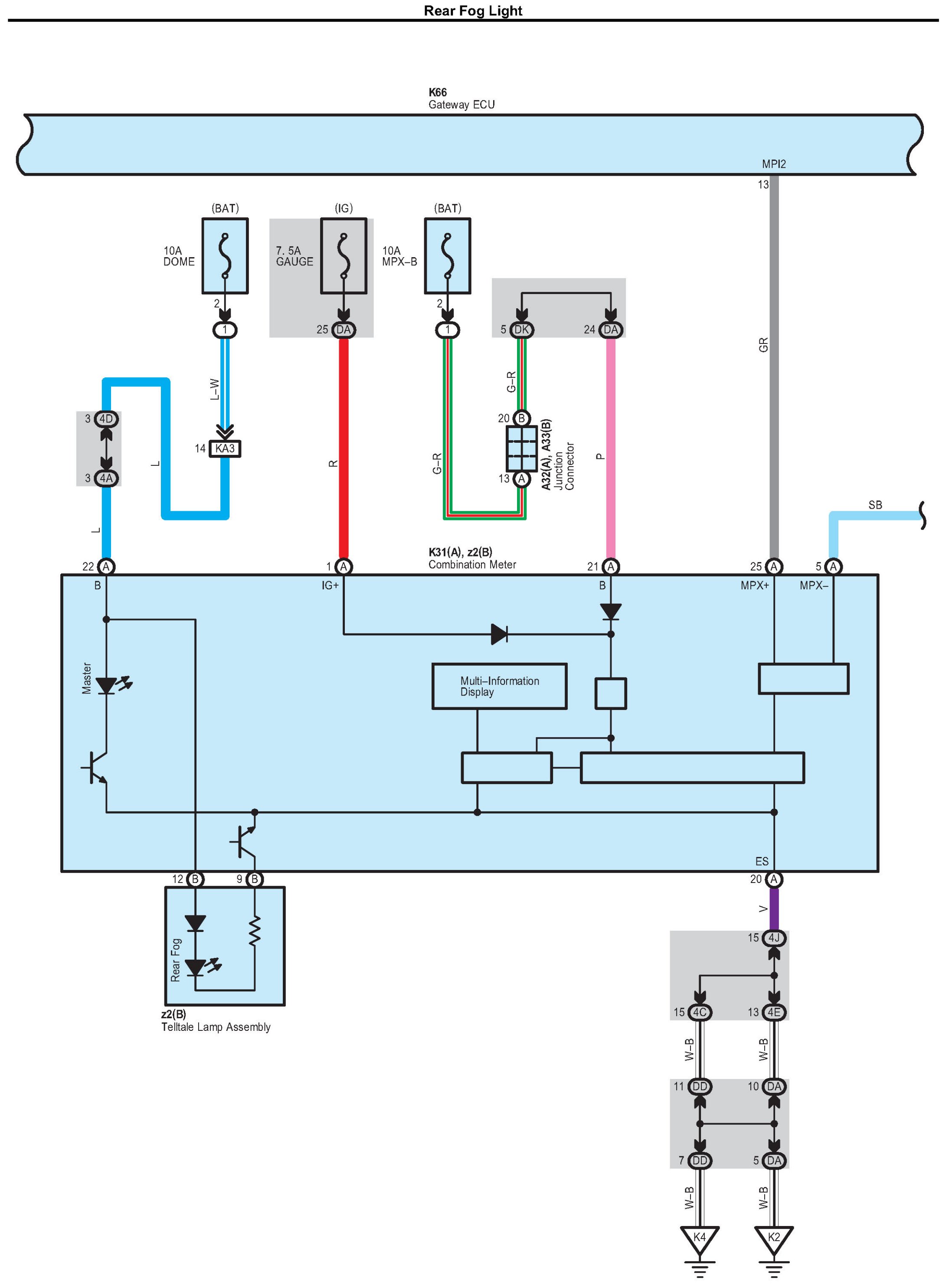

Rear Fog Light Part 1:

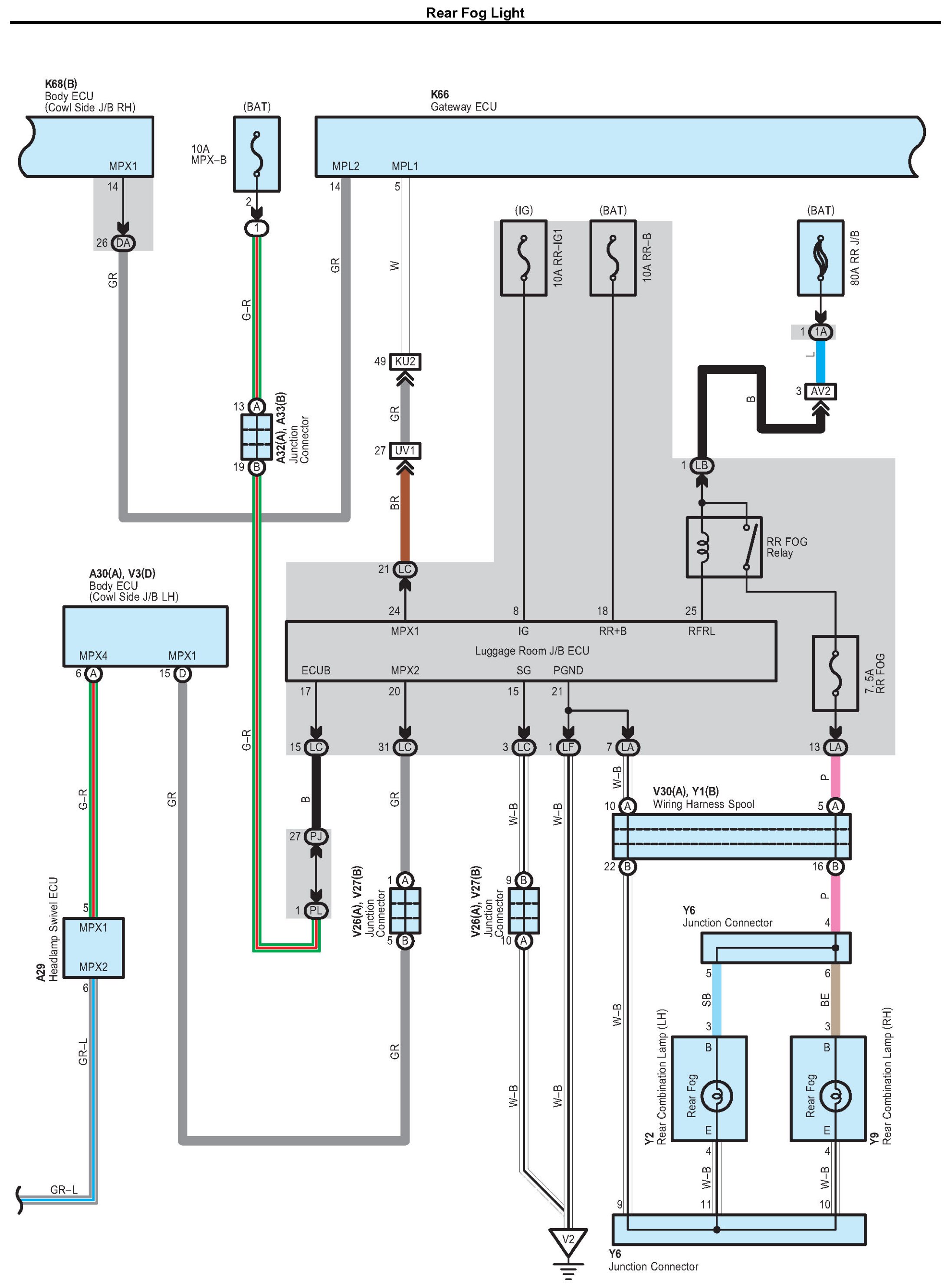

Rear Fog Light Part 2:

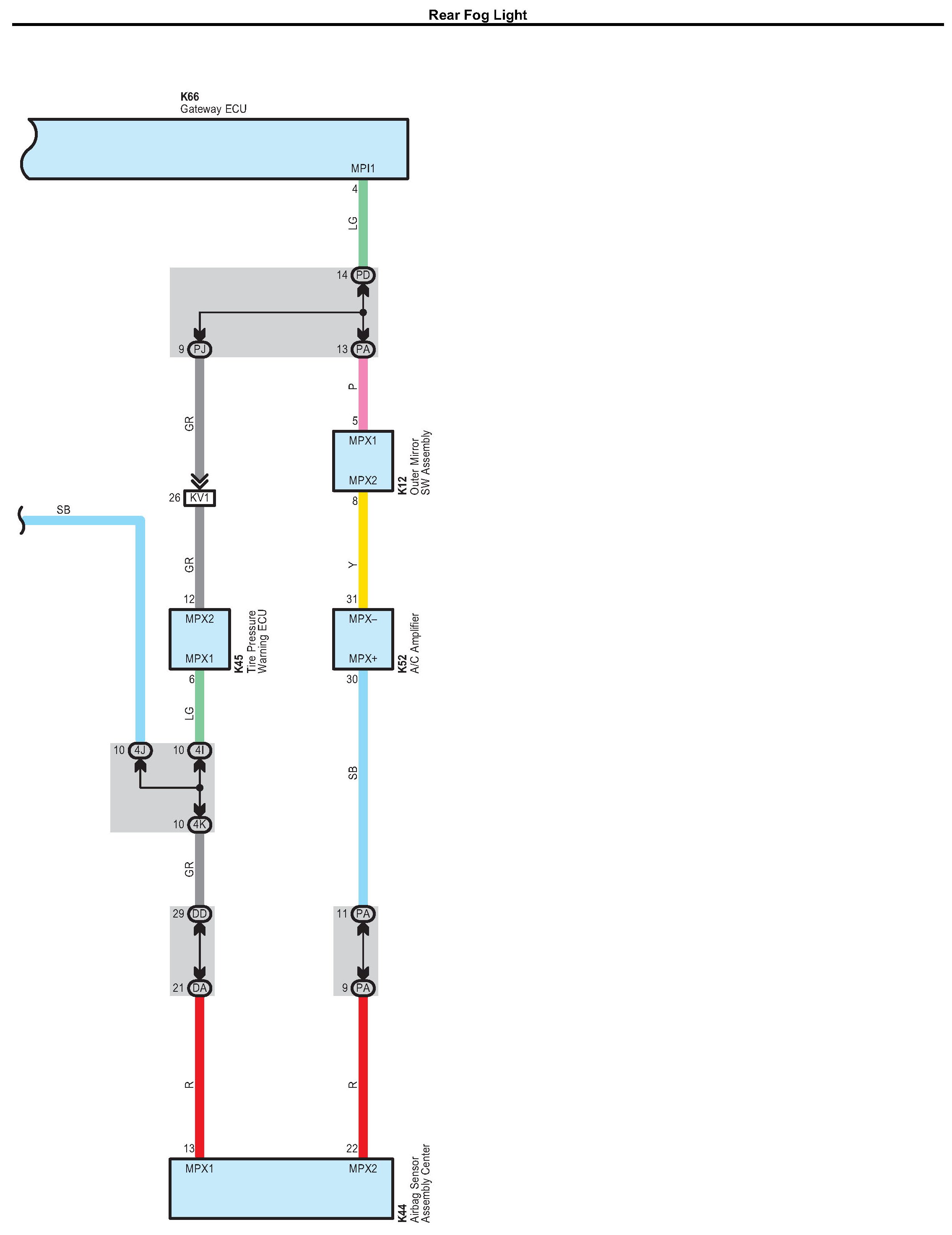

Rear Fog Light Part 3:

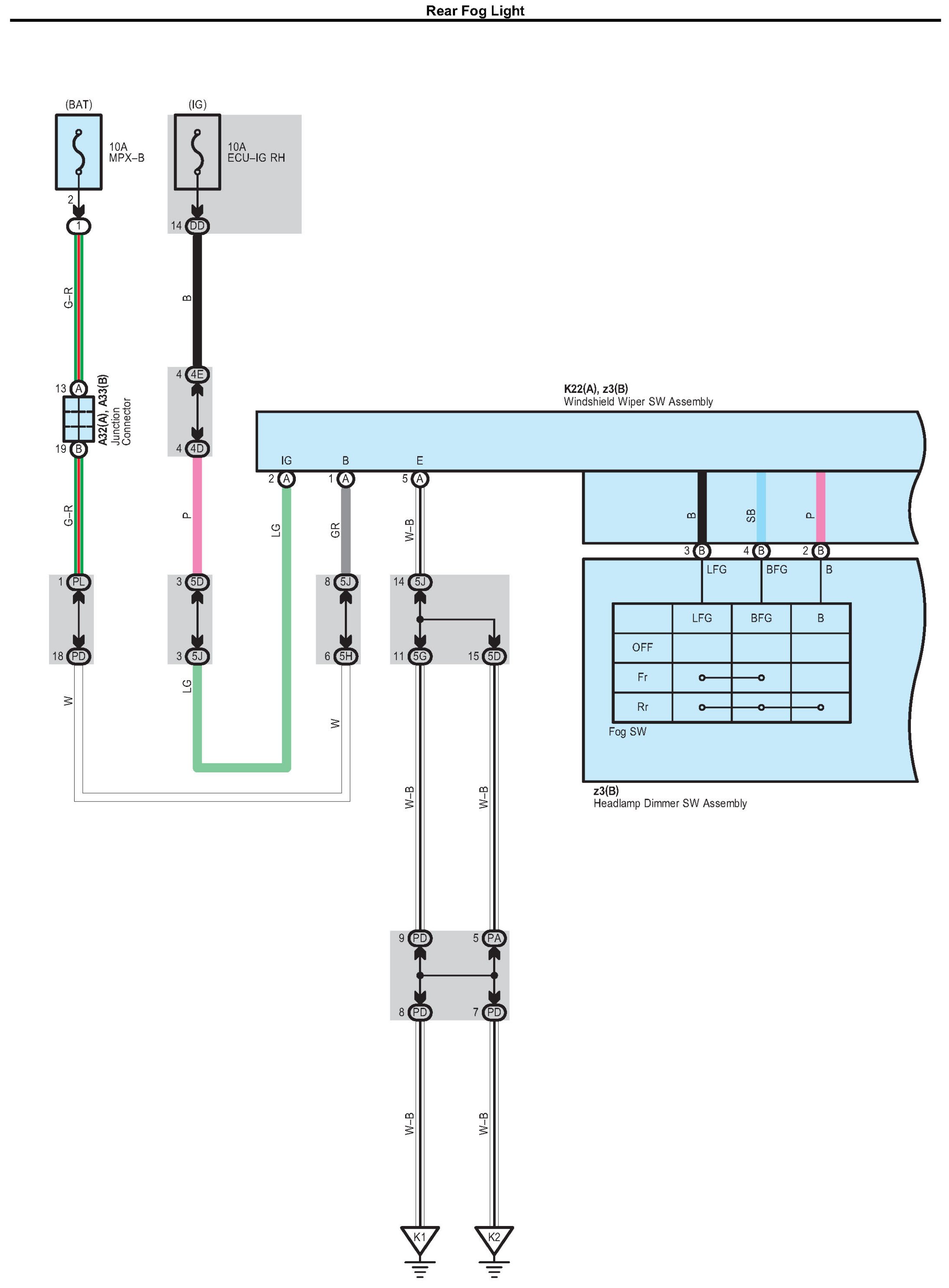

Rear Fog Light Part 4:

Rear Fog Light Part 5:

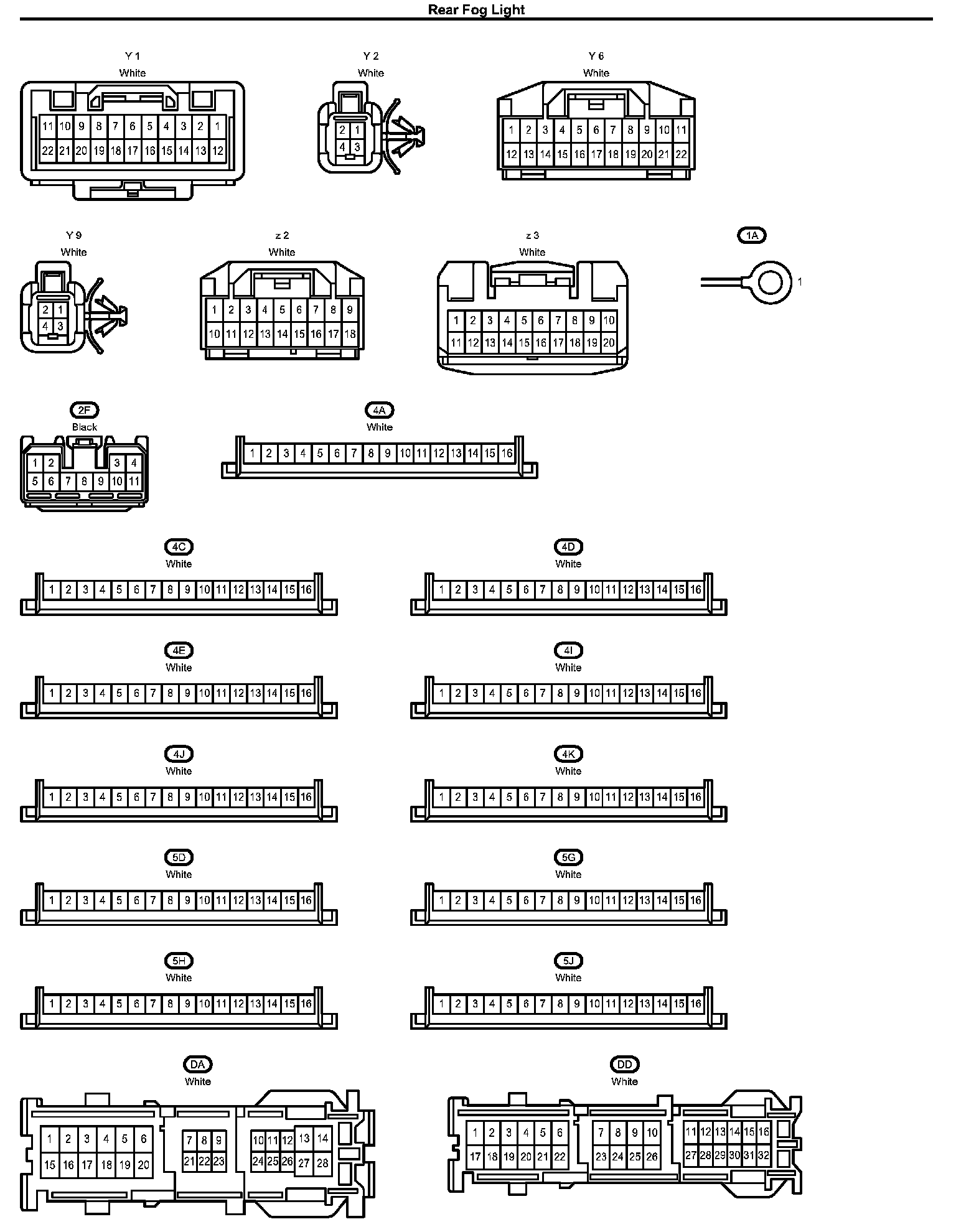

Connectors Part 1:

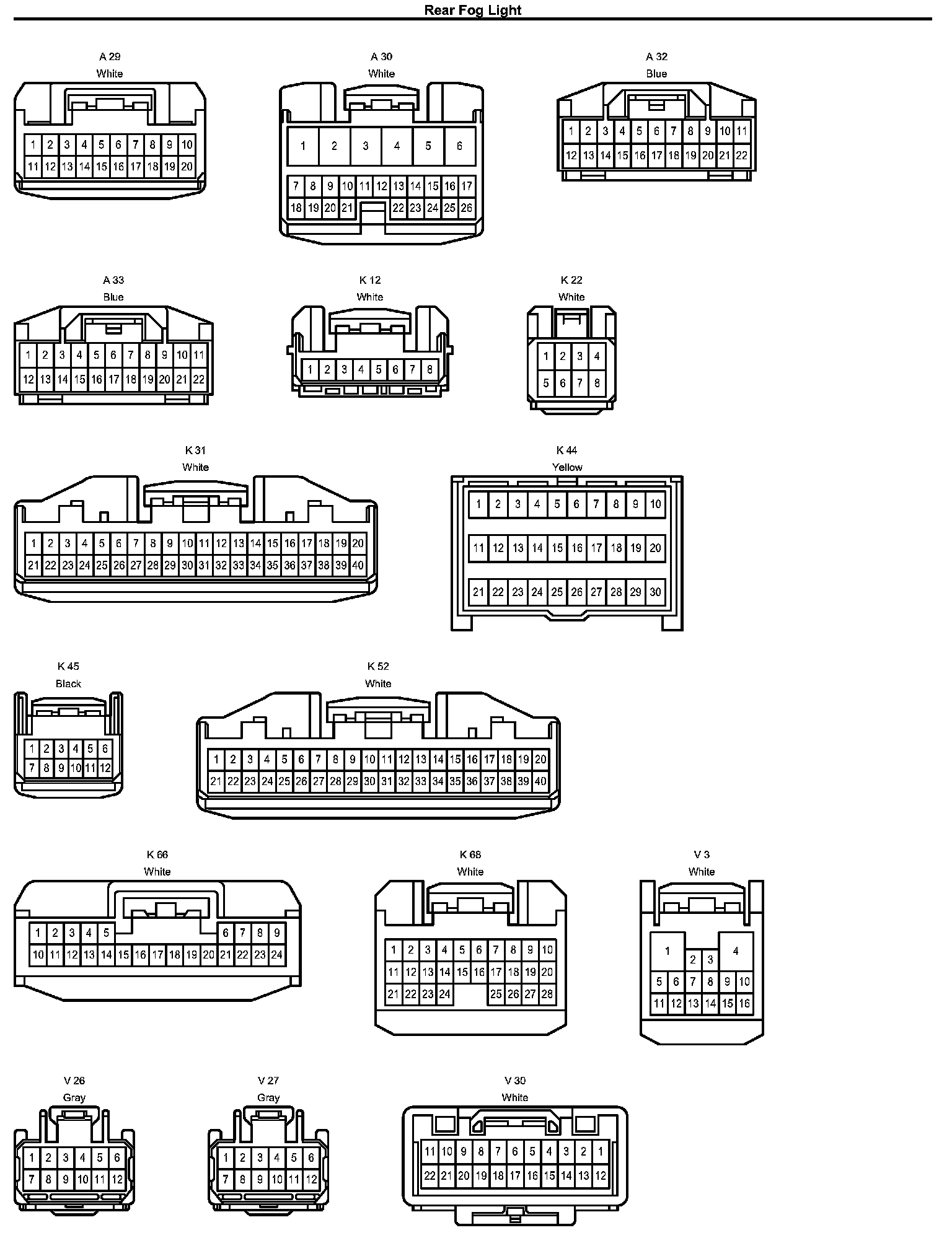

Connectors Part 2:

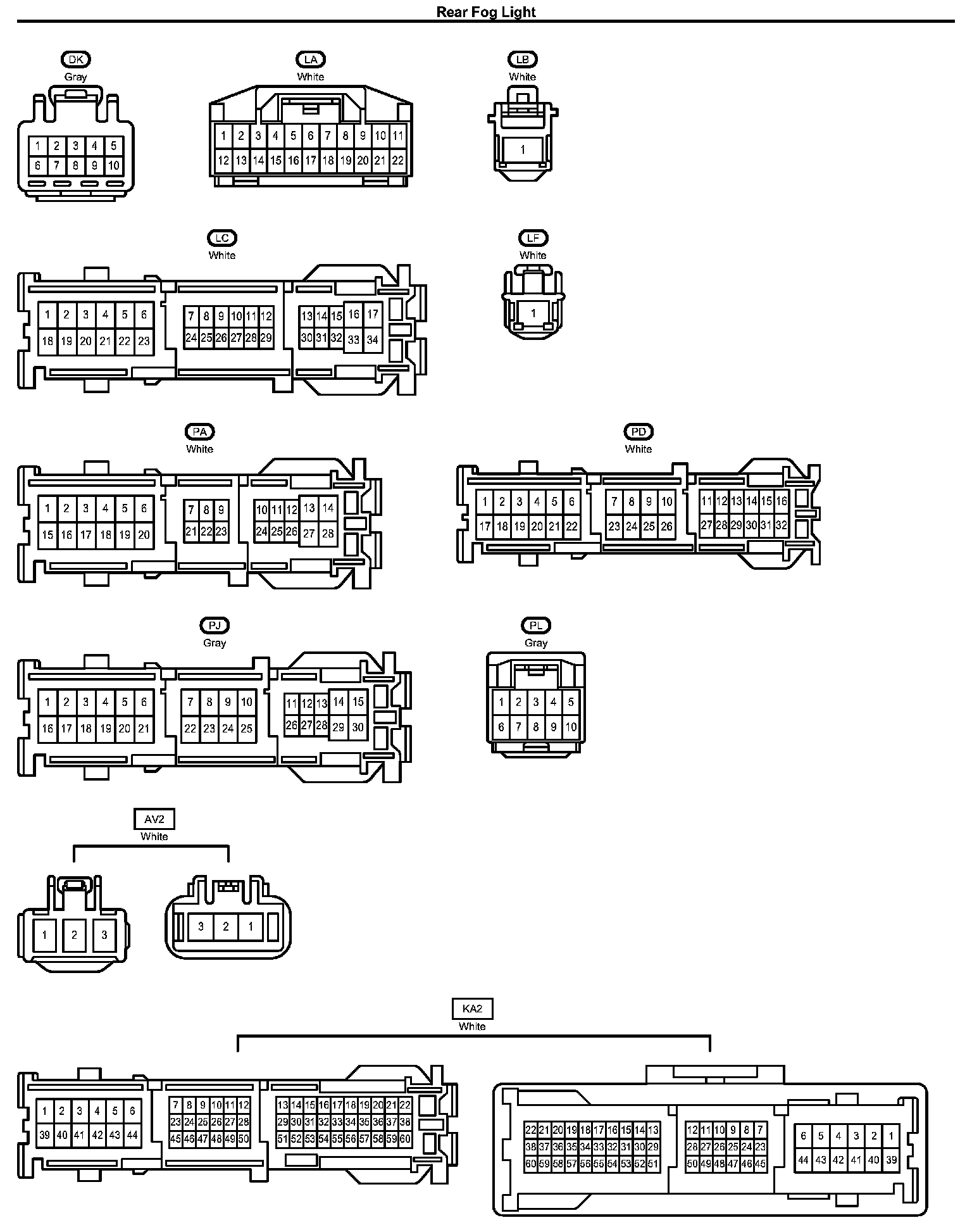

Connectors Part 3:

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
