Dynamic Radar Cruise Control System

CRUISE CONTROL: DYNAMIC RADAR CRUISE CONTROL SYSTEM: TERMINALS OF ECU

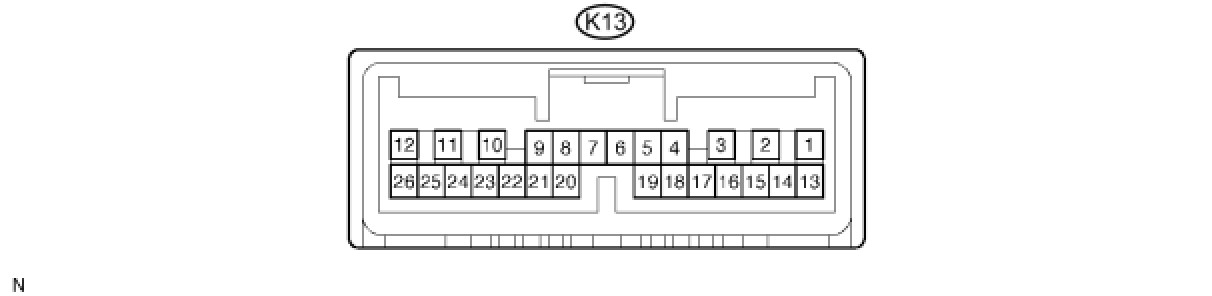

TERMINALS OF ECU

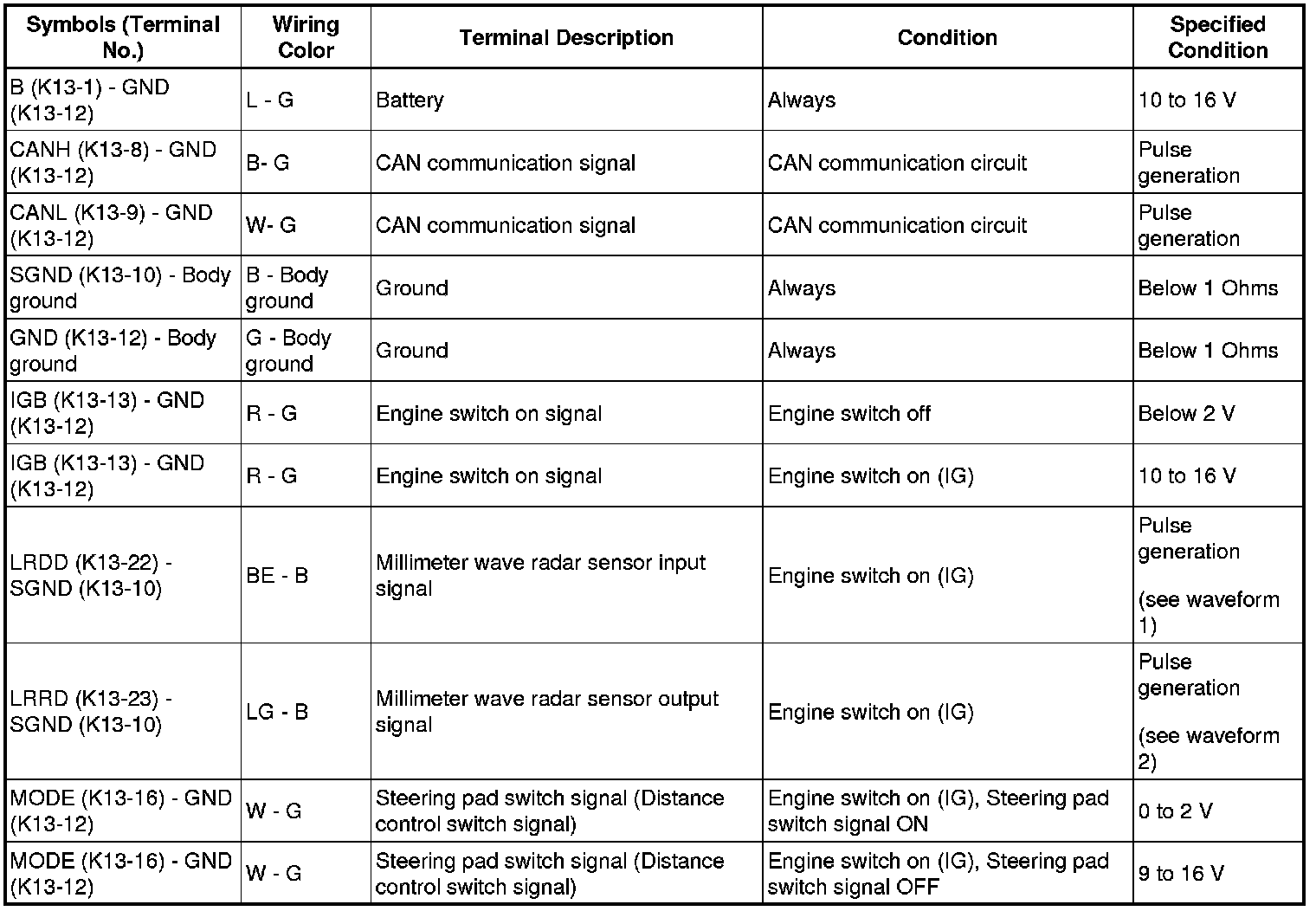

1. CHECK DISTANCE CONTROL ECU

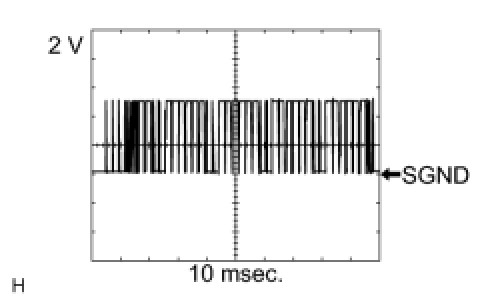

(a) Reference: waveform 1
- Terminal: LRDD - SGND
- Gauge set: 2 V/DIV., 10 msec./DIV.
- Condition: Engine switch on (IG)





(b) Reference: waveform 2
- Terminal: LRRD - SGND
- Gauge set: 2 V/DIV., 5 msec./DIV.
- Condition: Engine switch on (IG)

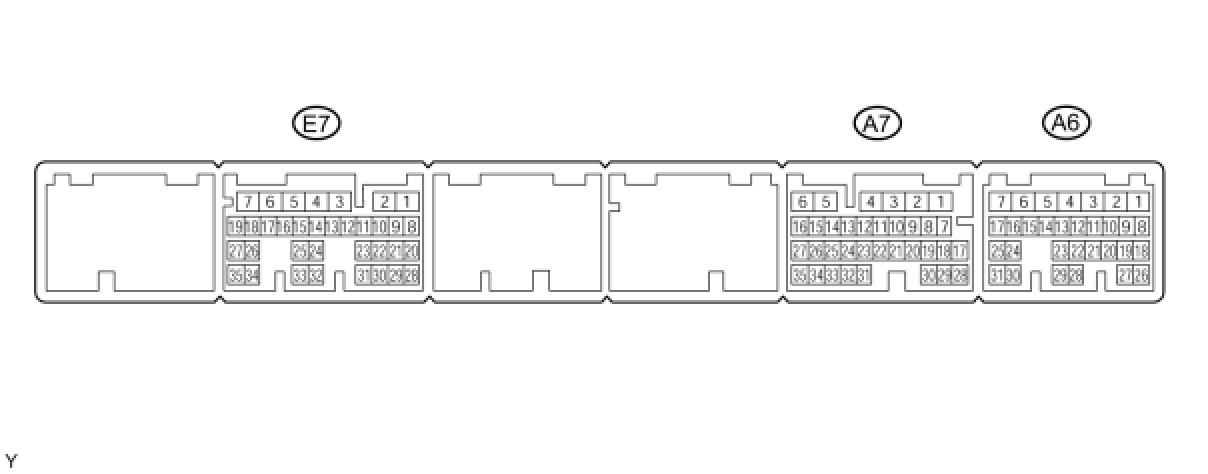

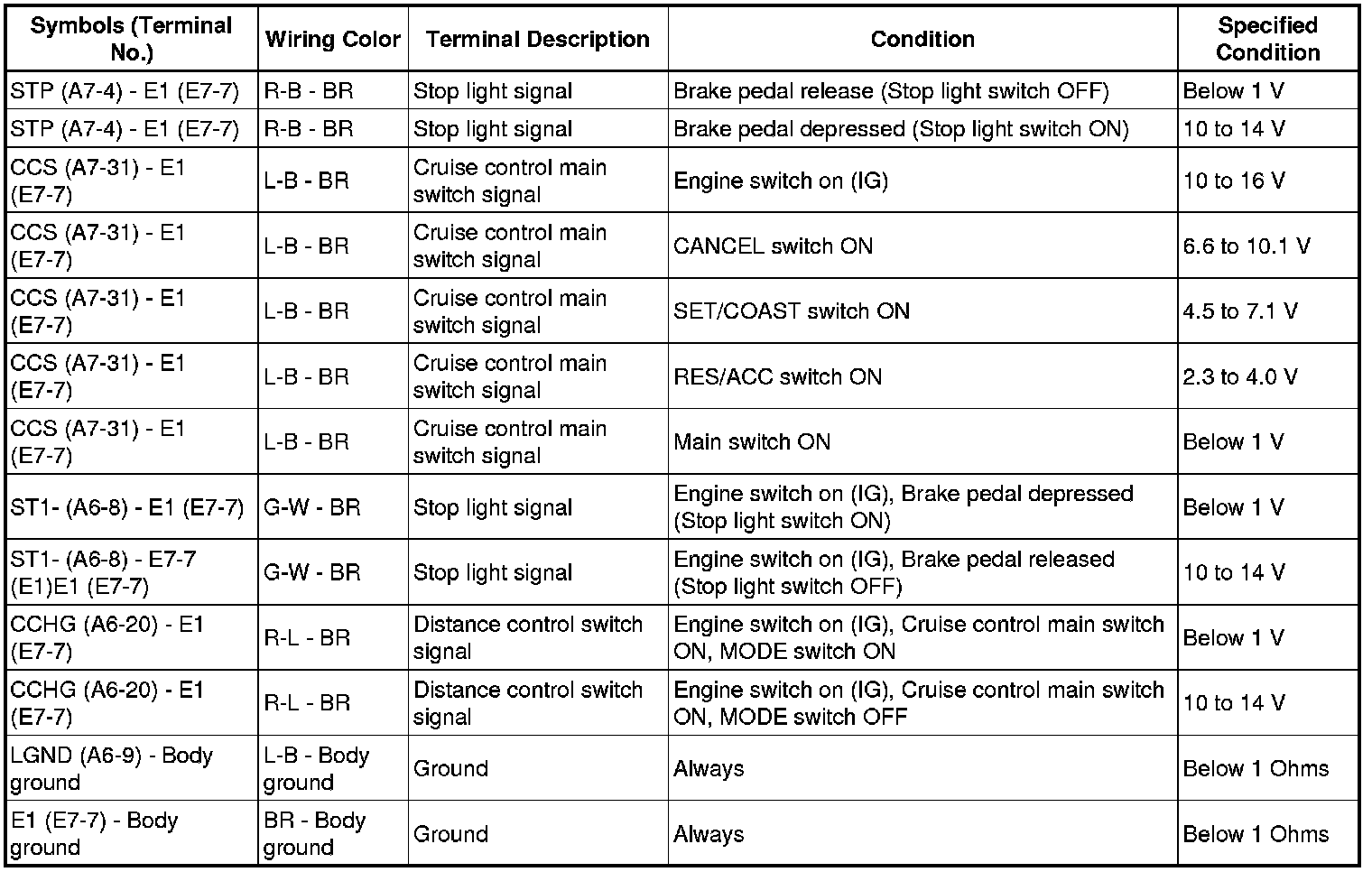

2. CHECK ECM (for 1UR-FSE)









If the value is not within the standard range, the ECM may have a malfunction.

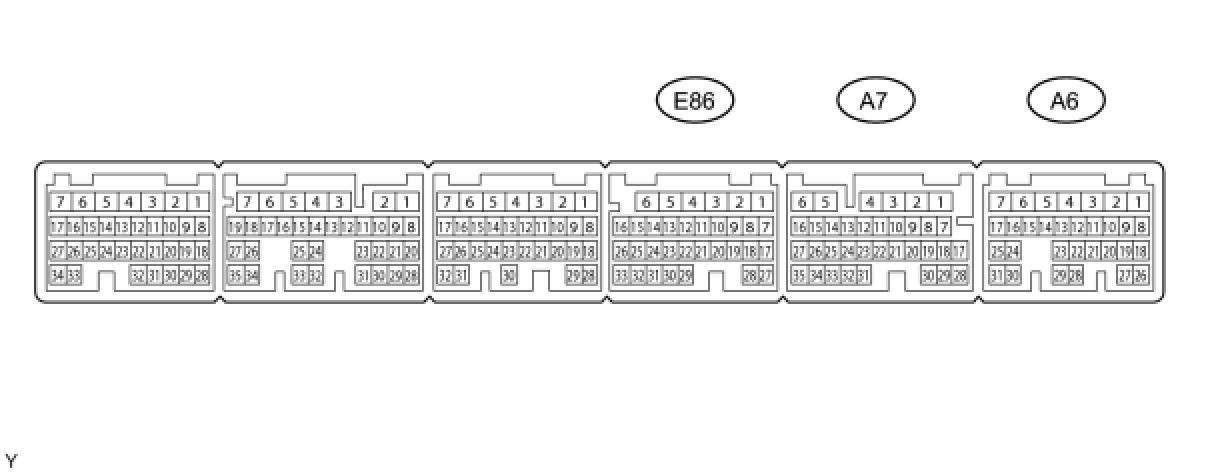

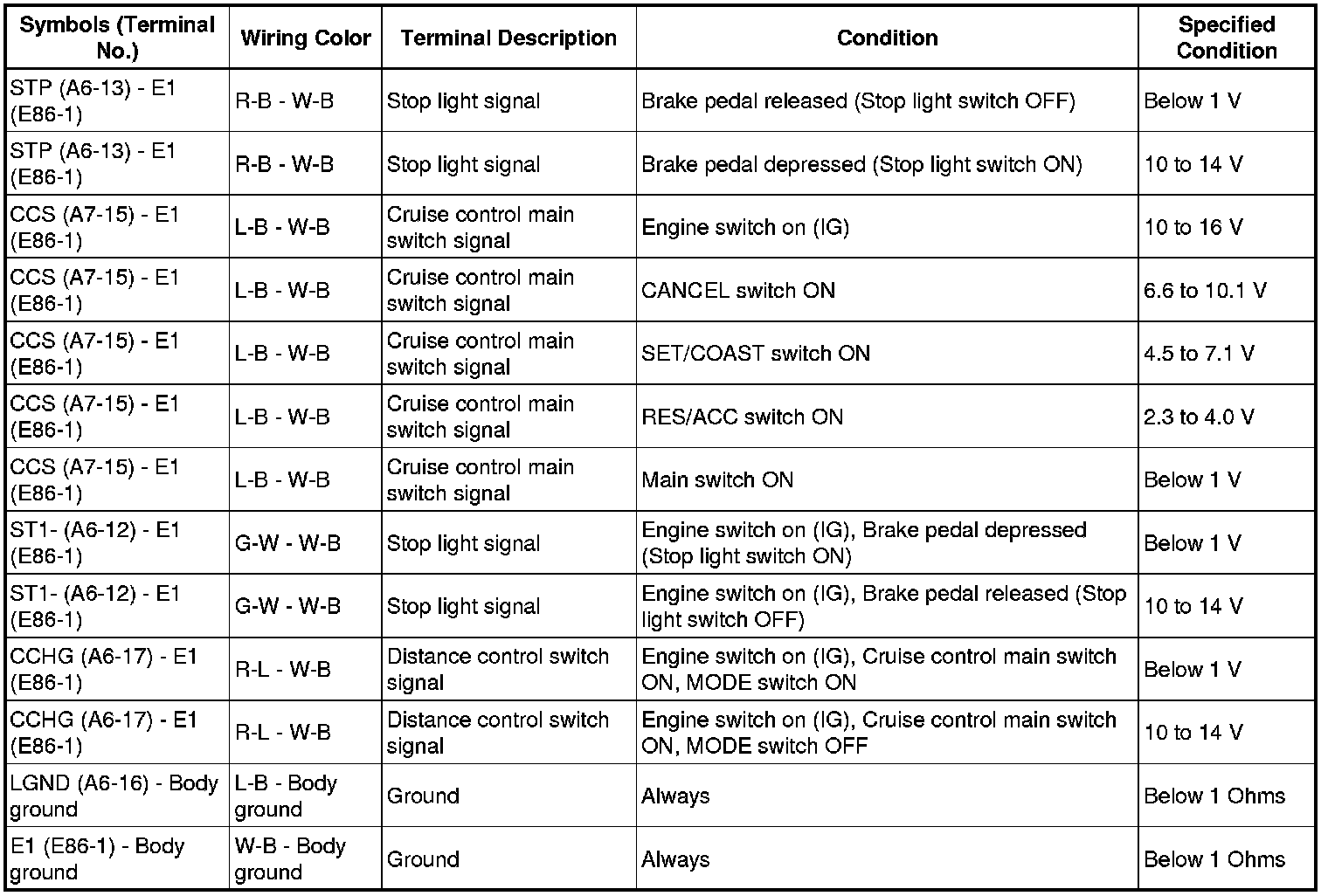

3. CHECK ECM (for 2GR-FSE)









If the value is not within the standard range, the ECM may have a malfunction.

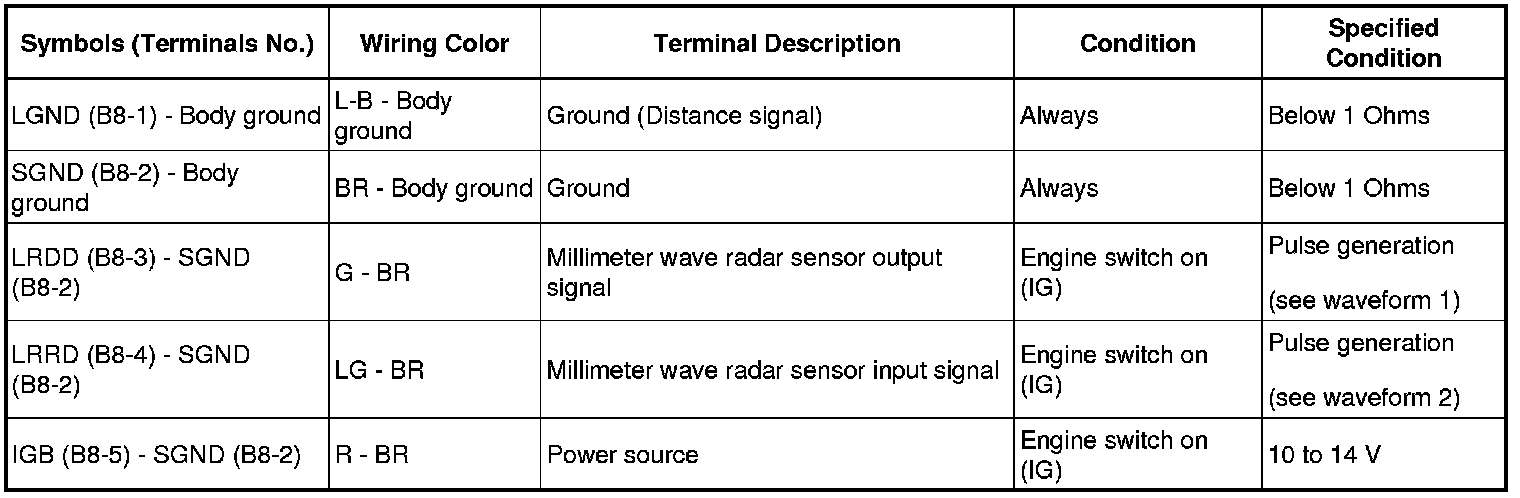

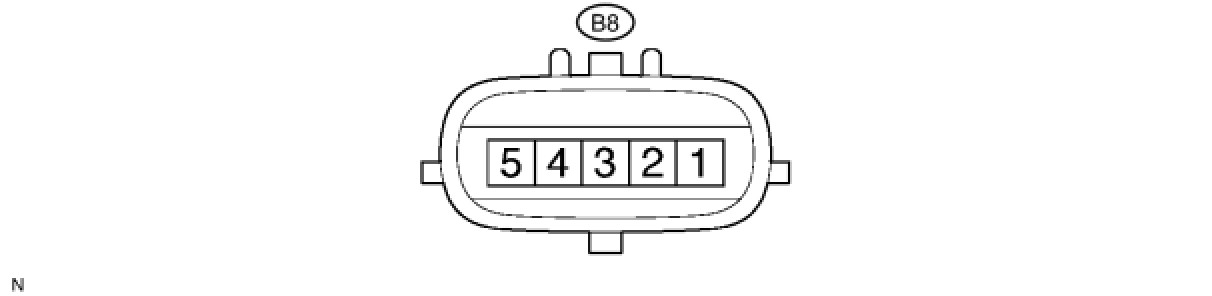

4. CHECK MILLIMETER WAVE RADAR SENSOR













(a) Reference: waveform 1
- Terminal: LRDD - SGND
- Gauge set: 2 V/DIV., 10 msec./DIV.
- Condition: Engine switch on (IG)





(b) Reference: waveform 2
- Terminal: LRRD - SGND
- Gauge set: 2 V/DIV., 5 msec./DIV.
- Condition: Engine switch on (IG)
