Cruise Control Switch Circuit

CRUISE CONTROL: CRUISE CONTROL SYSTEM: Cruise Control Switch Circuit

Cruise Control Switch Circuit

DESCRIPTION

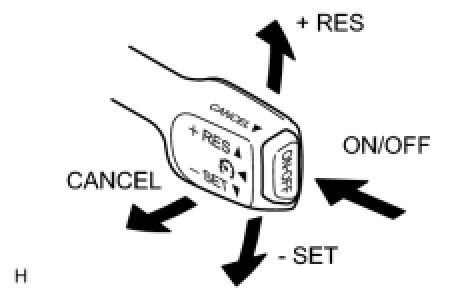

The cruise control main switch operates 7 functions: SET, COAST, TAP-DOWN, RESUME, ACCEL, TAP-UP, and CANCEL. The SET, TAP-DOWN and COAST functions, and the RESUME, TAP-UP and ACCEL functions are operated with the same switch. The cruise control main switch is an automatic return type switch which turns on only while operating it in each arrow direction and turns off after releasing it. The internal contact point of the cruise control main switch is turned on with the switch operation. Then the ECM reads the resistance value that has been changed by the switch operation to control SET, COAST, RESUME, ACCEL and CANCEL.

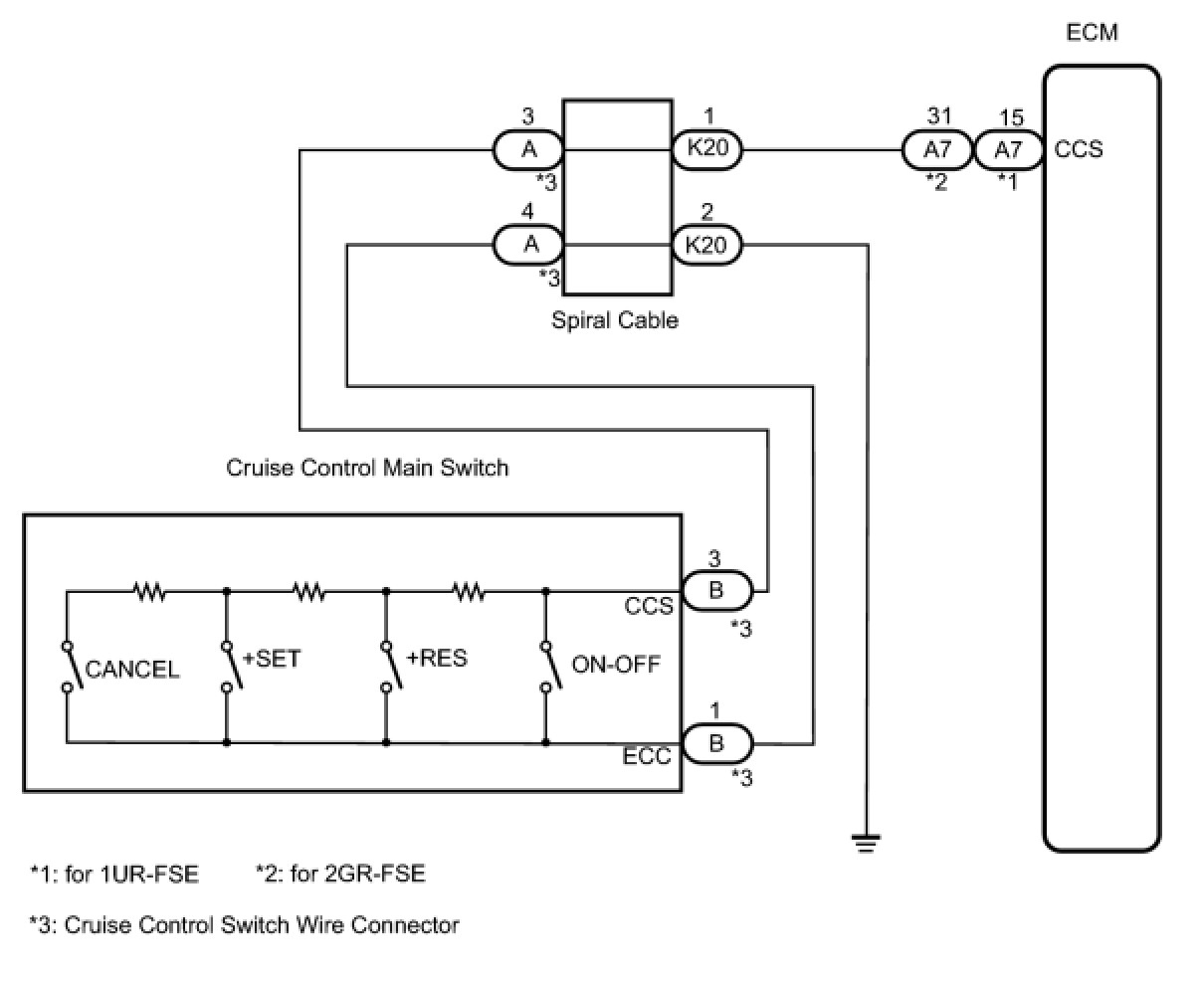

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM




(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG) and turn the Techstream main switch ON.

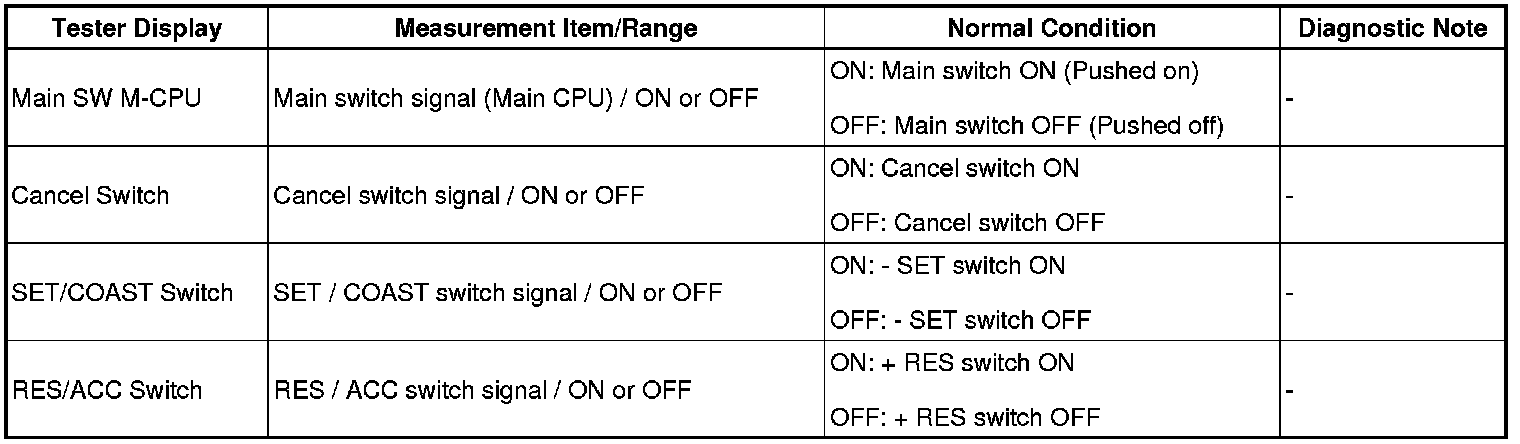

(c) Check the Data List for proper functioning of the cruise control main switch.

ECM (Cruise control):





OK:
When cruise control main switch operation is performed, the results will be same as above.

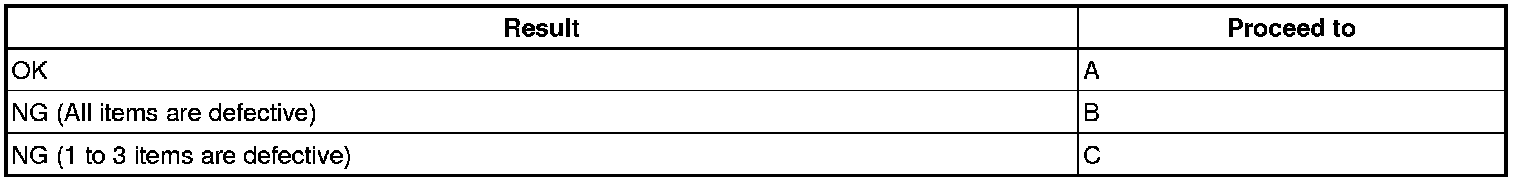

Result:





C -- REPLACE CRUISE CONTROL MAIN SWITCH
B -- INSPECT CRUISE CONTROL MAIN SWITCH
A -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
2. INSPECT CRUISE CONTROL MAIN SWITCH
(a) Disconnect the cruise control main switch connector.

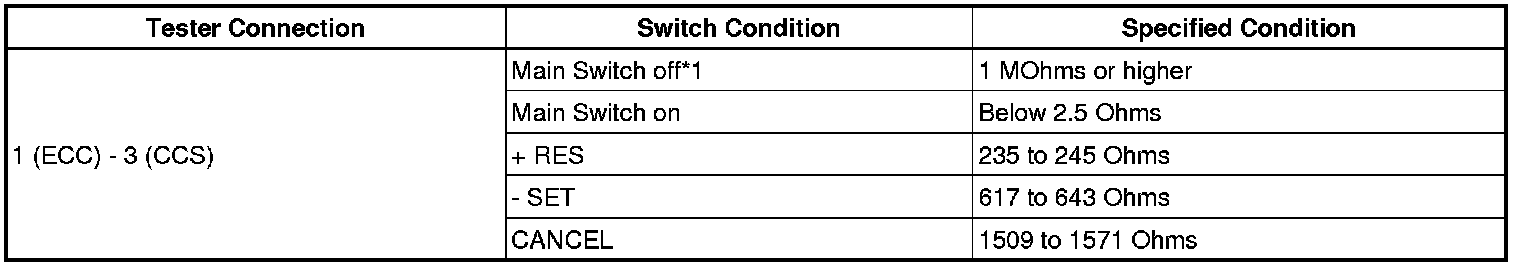

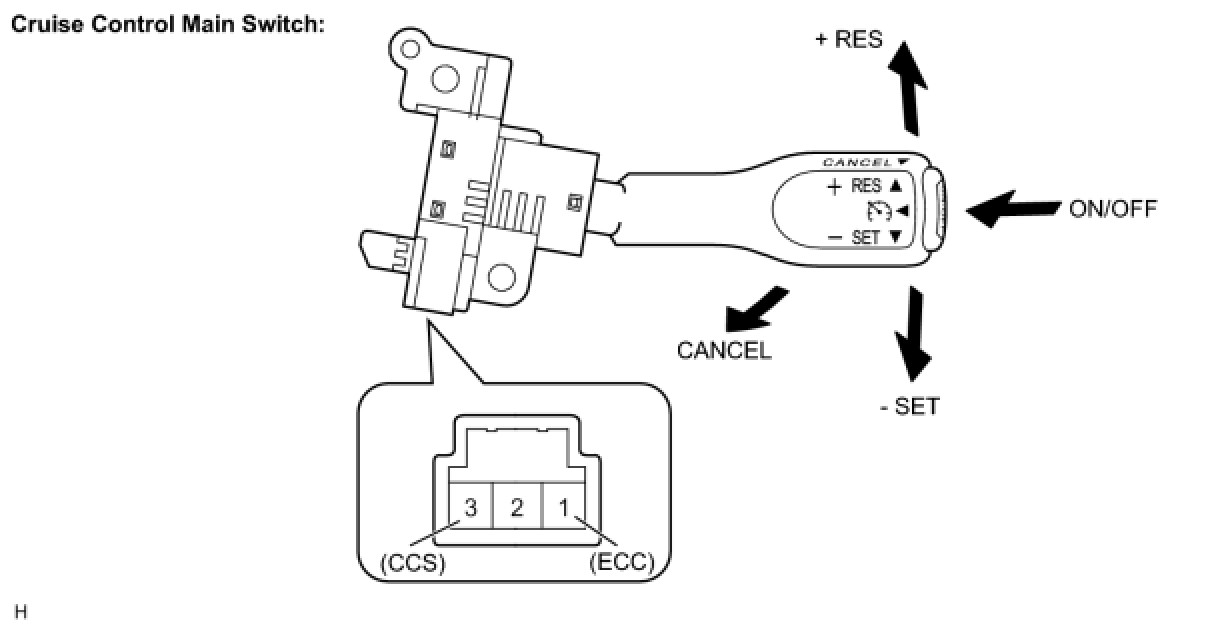

(b) Measure the resistance according to the value(s) in the table below.





Standard Resistance:






*1: Lever is in the neutral position
NG -- REPLACE CRUISE CONTROL MAIN SWITCH
OK -- Continue to next step.

3. CHECK CRUISE CONTROL SWITCH WIRE
(a) Disconnect the connector from the spiral cable.

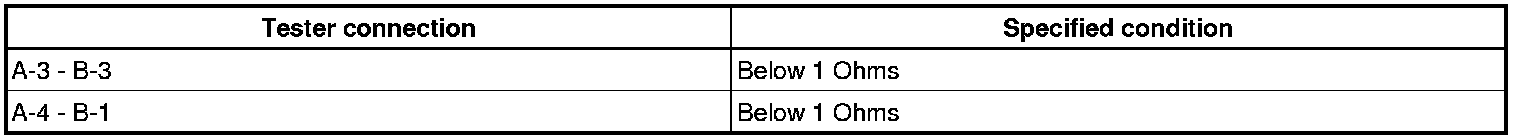

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance





NG -- REPLACE CRUISE CONTROL SWITCH WIRE
OK -- Continue to next step.

4. INSPECT SPIRAL CABLE




(a) Disconnect the A and K20 spiral cable connectors.

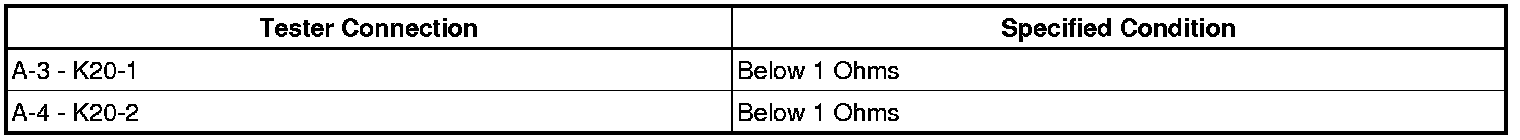

(b) Measure the resistance of the connectors.
Standard resistance:






NG -- REPLACE SPIRAL CABLE
OK -- Continue to next step.

5. CHECK WIRE HARNESS (SPIRAL CABLE - ECM AND BODY GROUND)

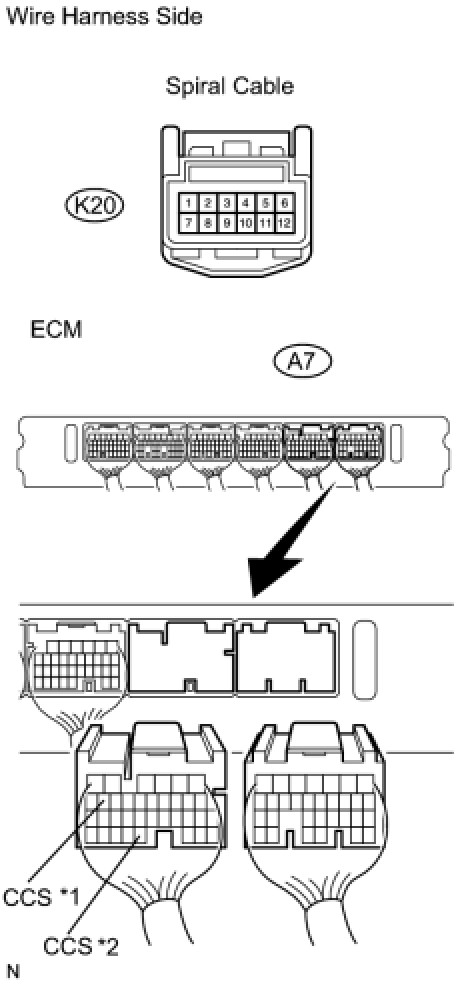

(a) Disconnect the A7 ECM connectors.

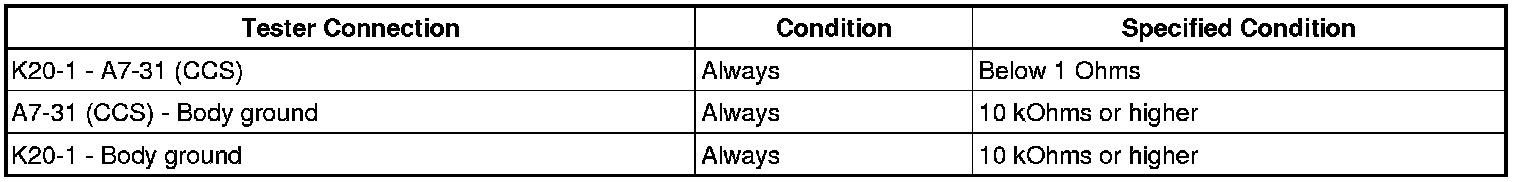

(b) Measure the resistance of the wire harness side connectors.
Standard resistance (for 1UR-FSE):






Standard resistance (for 2GR-FSE):





HINT:
- *1: for 1UR-FSE
- *2: for 2GR-FSE

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
