Electronically Controlled Brake System

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

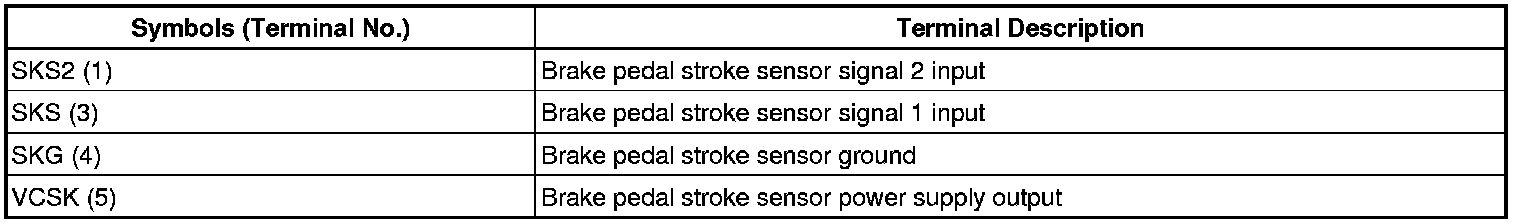

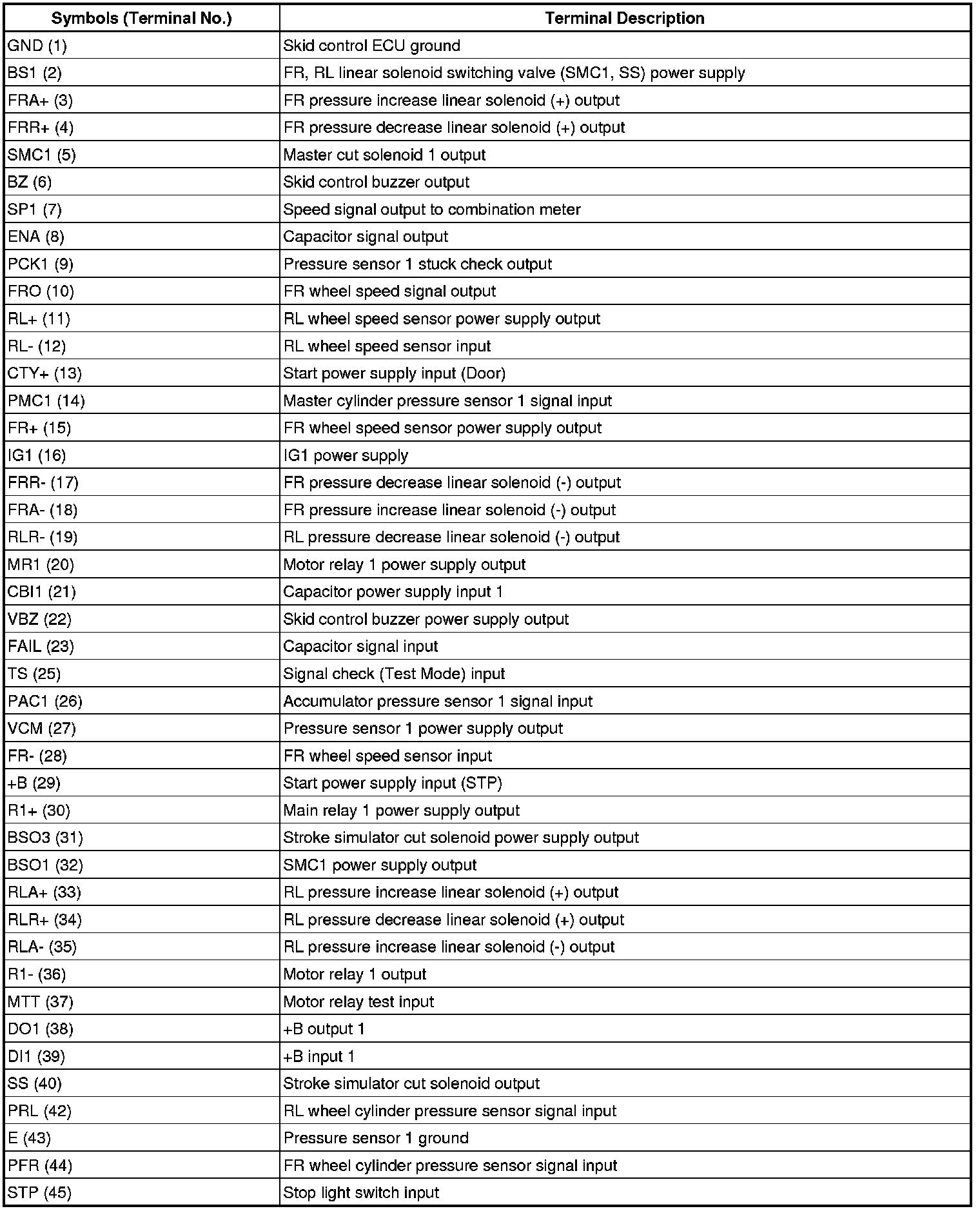

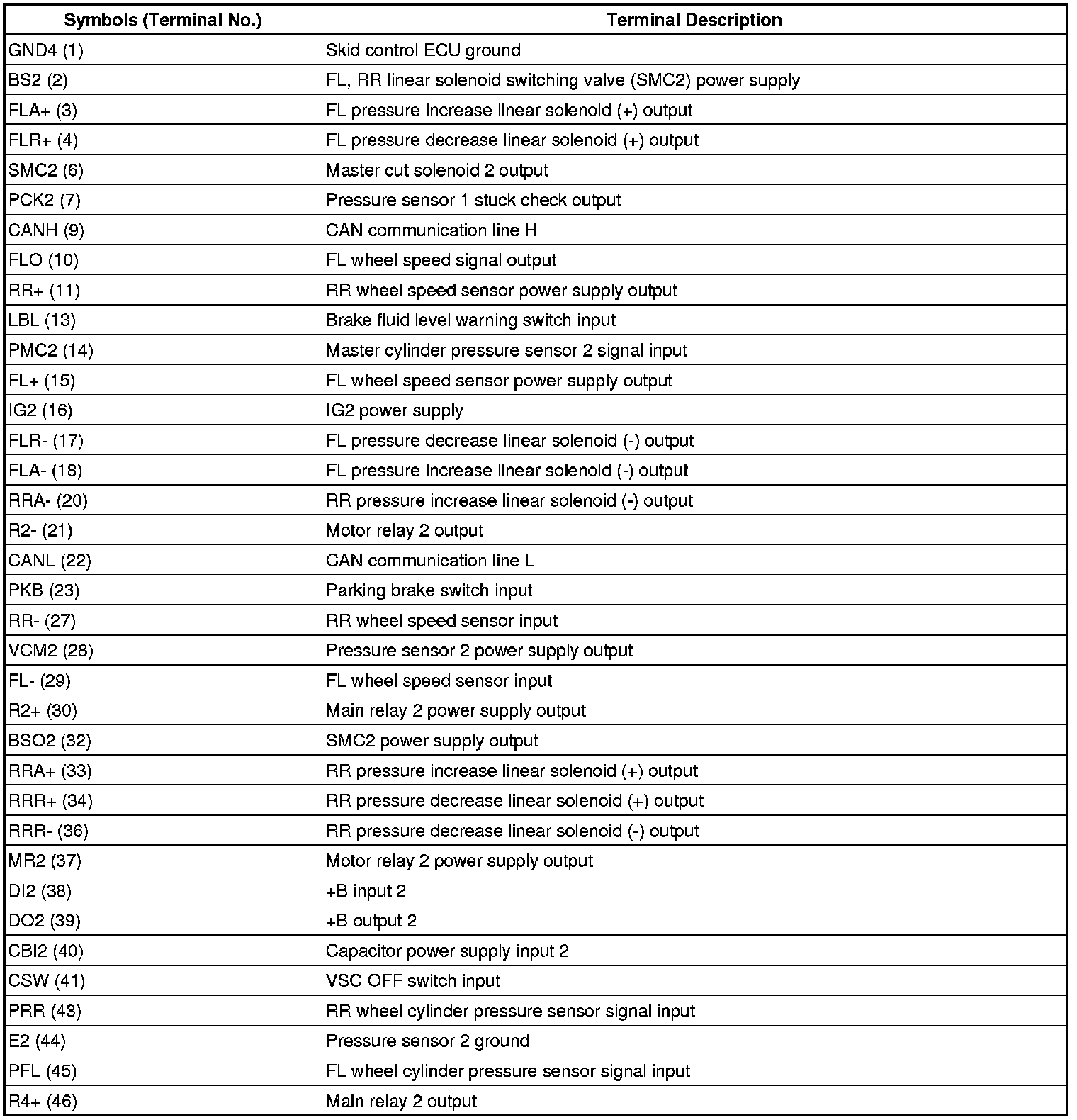

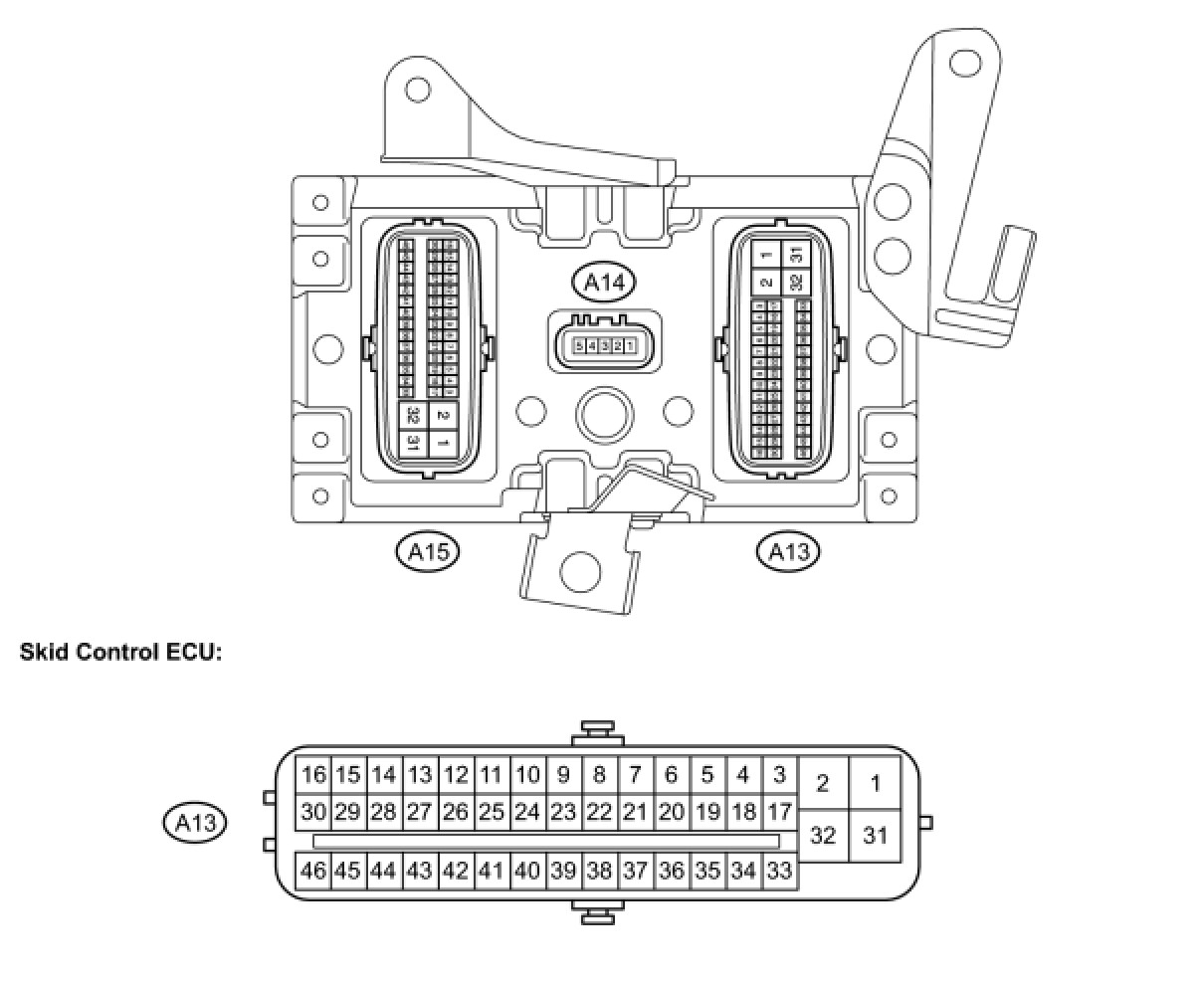

1. TERMINALS OF ECU

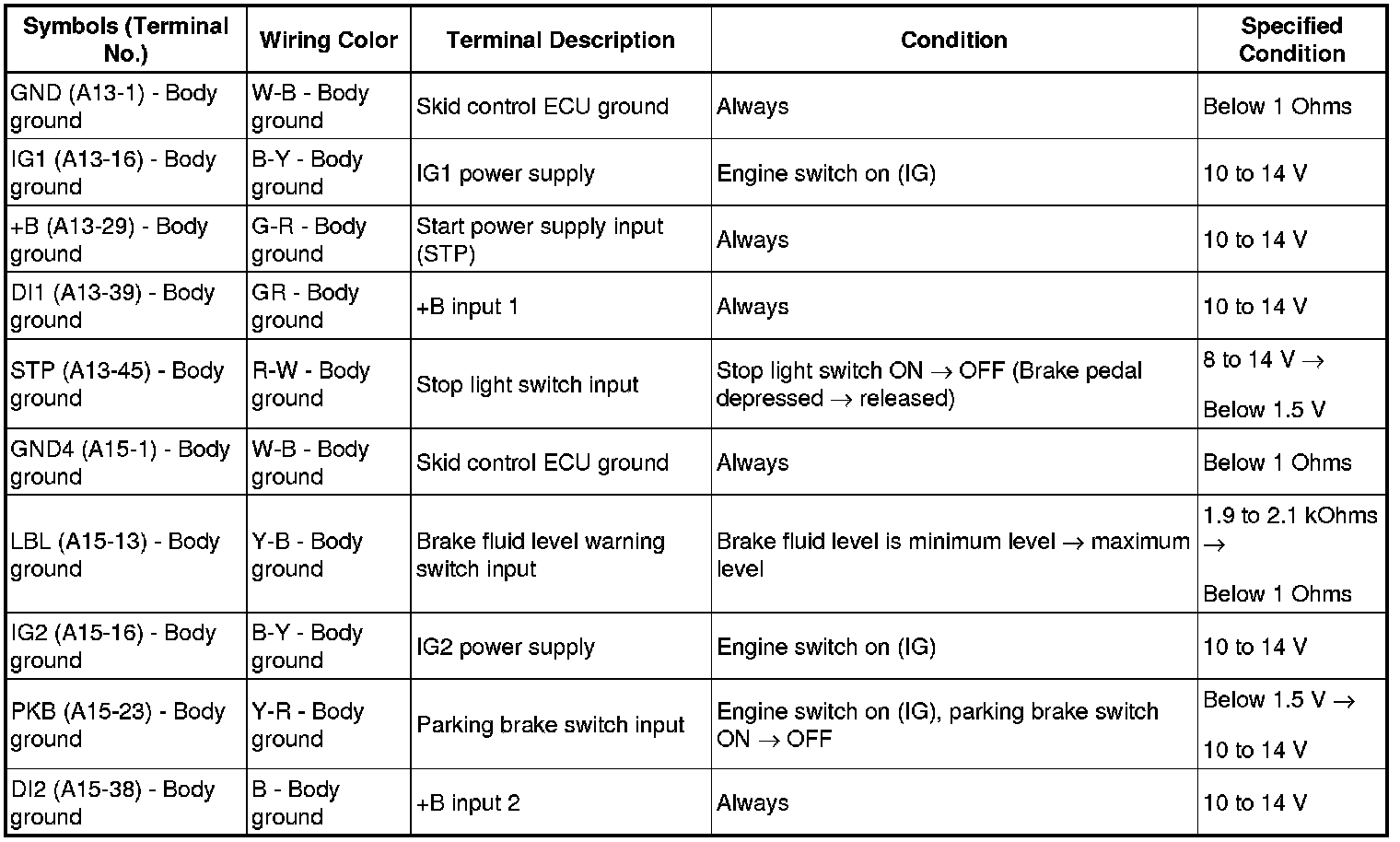

2. TERMINAL INSPECTION

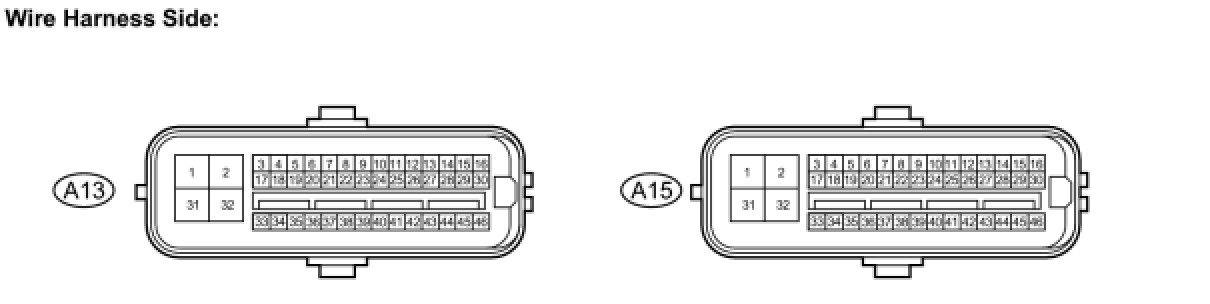

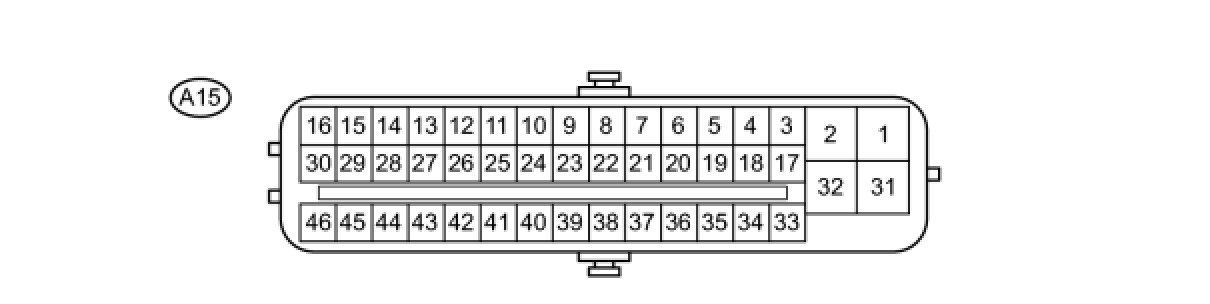

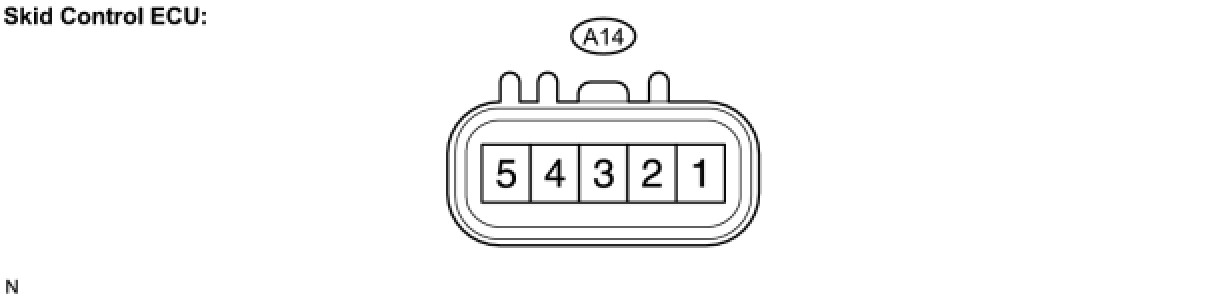

(a) Disconnect the connector and measure the voltage or resistance on the wire harness side.




HINT: Voltage cannot be measured with the connector connected to the skid control ECU as the connector is watertight.
