Power Door Lock Switch: Testing and Inspection

DOOR LOCK: DOOR CONTROL SWITCH: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION





1. INSPECT DOOR CONTROL SWITCH ASSEMBLY
(a) Measure the resistance of the switch.

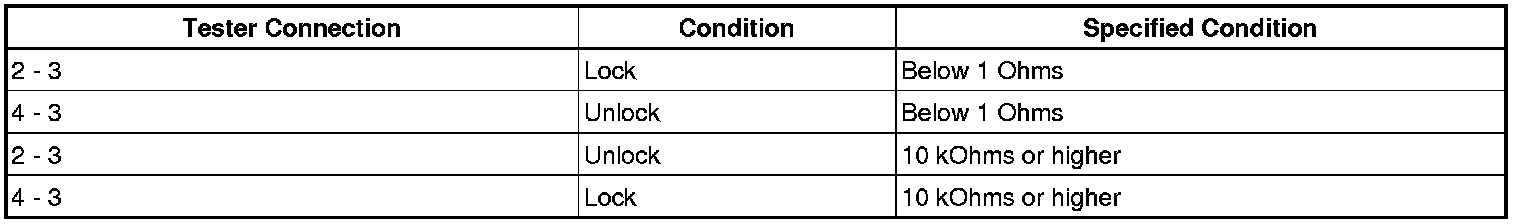

Standard resistance:





If the result is not as specified, replace the switch assembly.
