Pinout Values and Diagnostic Parameters

SLIDING ROOF: SLIDING ROOF SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

1. CHECK SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY (SLIDING ROOF ECU)

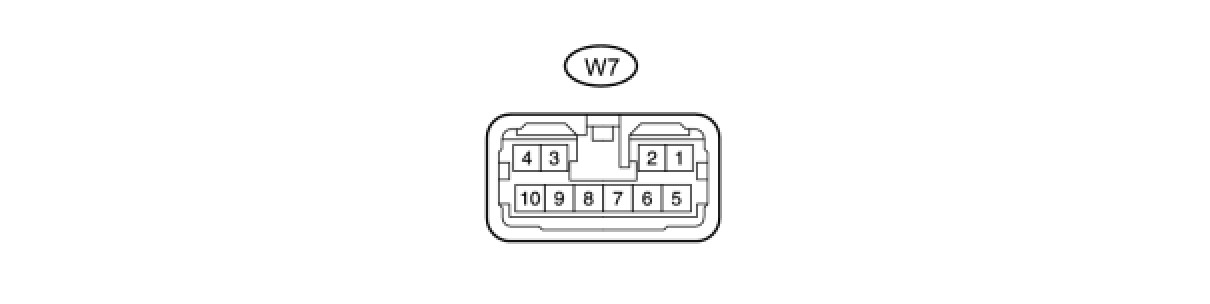

(a) Disconnect the W7 ECU connector.

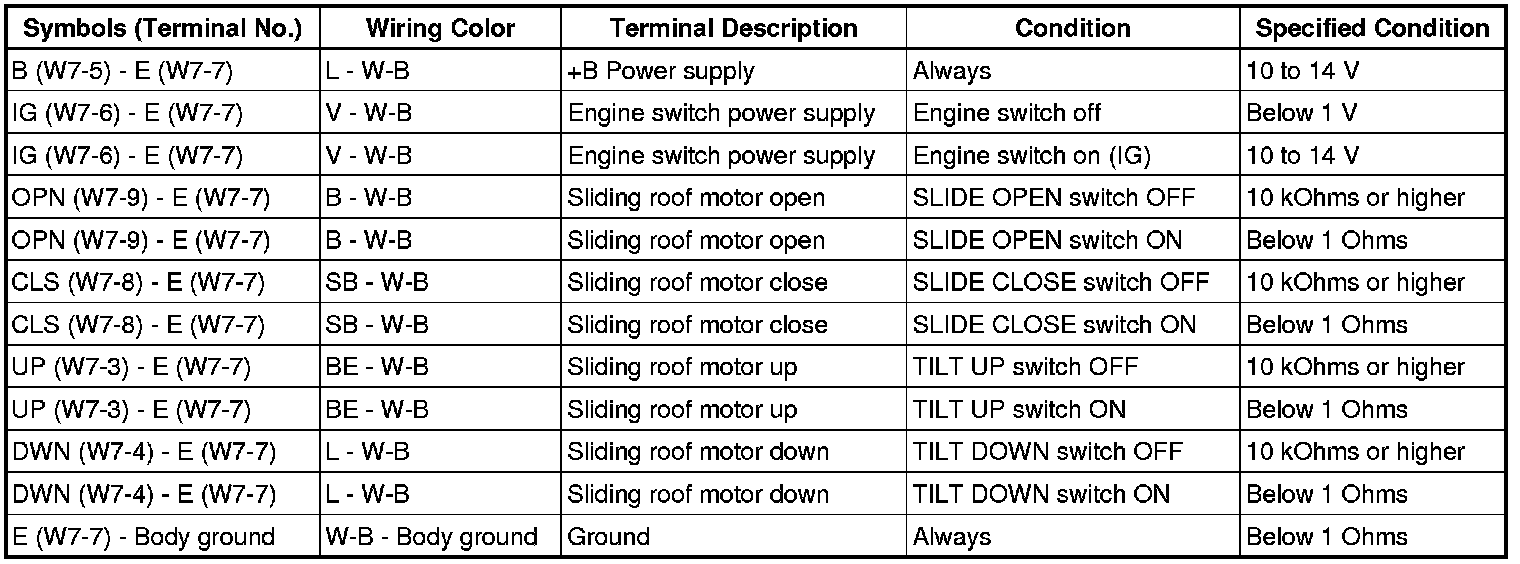

(b) Measure the resistance and voltage of the wire harness side connector.





If the result is not as specified, there may be a malfunction on the wire harness side connector.
(c) Reconnect the W7 ECU connector.

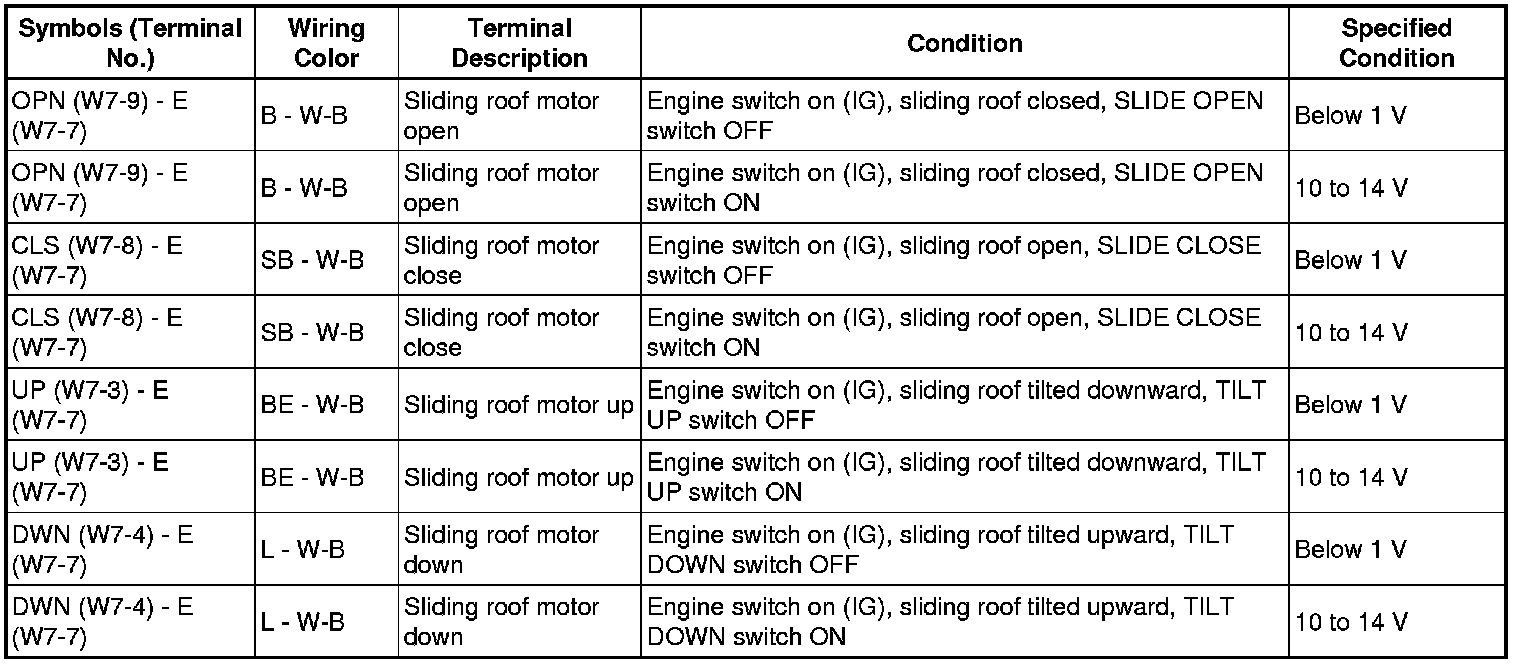

(d) Measure the voltage of the connector.





If the result is not as specified, the ECU may have a malfunction.
