Installation

MIRROR: INNER REAR VIEW MIRROR: INSTALLATION

INSTALLATION

1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY

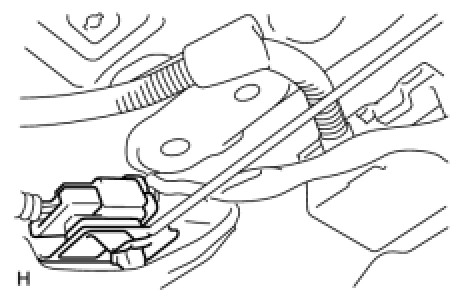

(a) Connect the connector.

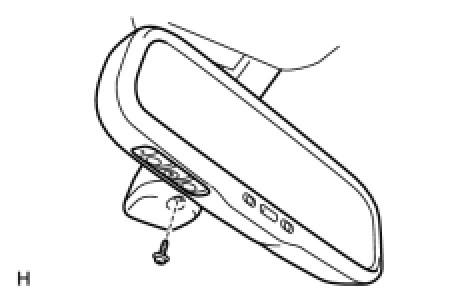

(b) Install the mirror with the screw.
2. INSTALL PERSONAL LIGHT ASSEMBLY Installation
3. INSTALL FRONT ROOF TOP GARNISH Installation
4. INSTALL INNER REAR VIEW MIRROR COVER
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
