Disposal

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR SUPPORT: DISPOSAL

DISPOSAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.





1. DISPOSE OF LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY
(a) Remove the support Removal.
(b) Horizontally fix the support in a vise with the piston-rod pulled out.

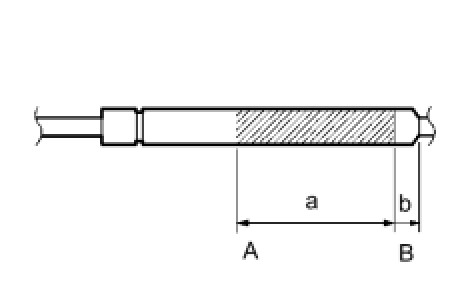

(c) Using a metal saw or equivalent, gradually cut any area between A and B to release the gas.
Specification:





CAUTION:
As metal debris may be blown outward by the gas, you must:
- Wear protective glasses.
- Cover the area being cut.
NOTE:
The gas is colorless, odorless and harmless.
