Luggage Compartment Door Open Switch Circuit

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR OPENER AND CLOSER SYSTEM: Luggage Compartment Door Open Switch Circuit

Luggage Compartment Door Open Switch Circuit

DESCRIPTION

The door unlock switch is built into the luggage compartment door striker.
This switch is turned on when the luggage compartment door is opened and turned off when the door is closed.

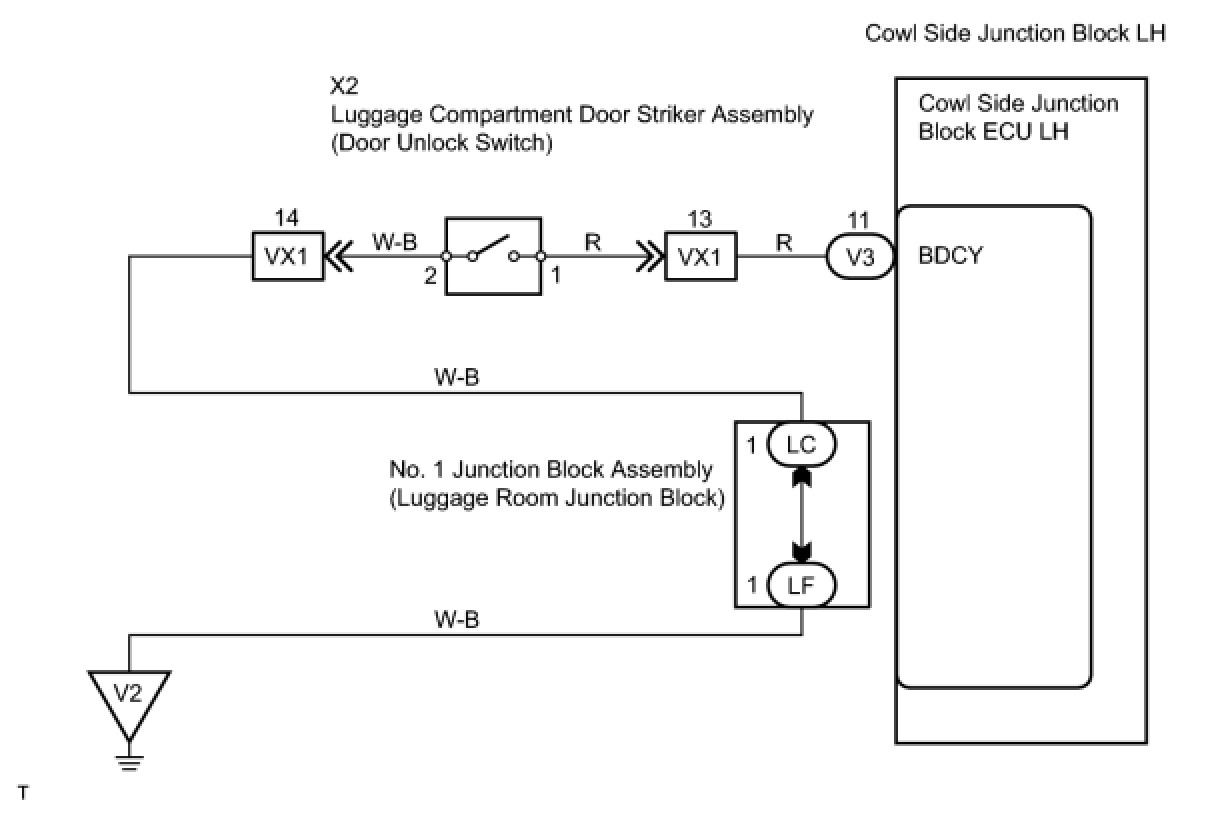

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT LUGGAGE COMPARTMENT DOOR STRIKER ASSEMBLY (DOOR UNLOCK SWITCH)




(a) Disconnect the X2 striker connector.

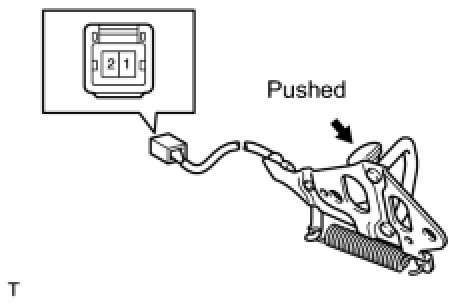

(b) Measure the resistance of the striker.

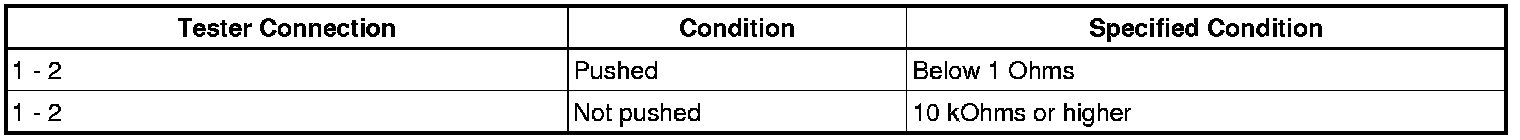

Standard resistance:






NG -- REPLACE LUGGAGE COMPARTMENT DOOR STRIKER ASSEMBLY
OK -- Continue to next step.

2. CHECK WIRE HARNESS (LUGGAGE COMPARTMENT DOOR STRIKER ASSEMBLY - COWL SIDE JUNCTION BLOCK ECU LH AND BODY GROUND)




(a) Disconnect the X2 striker connector.
(b) Disconnect the V3 ECU connector.

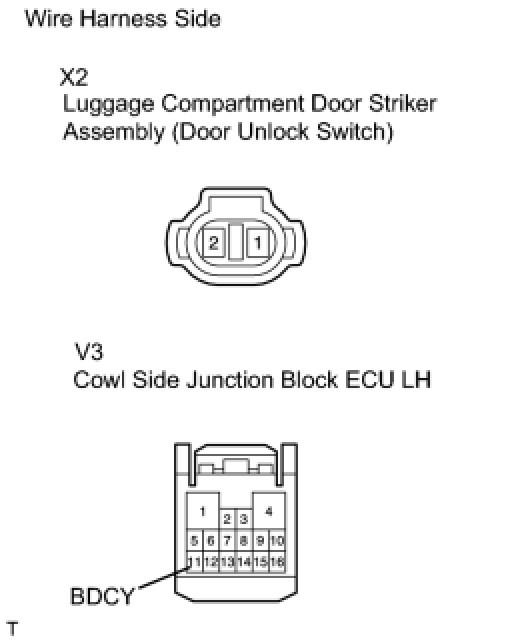

(c) Measure the resistance of the wire harness side connectors.

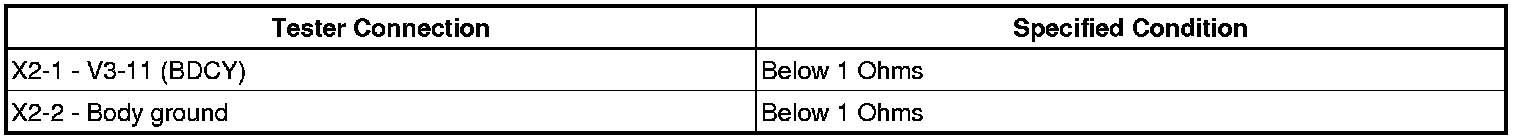

Standard resistance:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
