Problem Symptoms Table

ENGINE HOOD / DOOR: FUEL LID OPENER SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE
HINT:
- Use the below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
- Inspected the fuse related to this symptom before inspecting the suspected areas below.

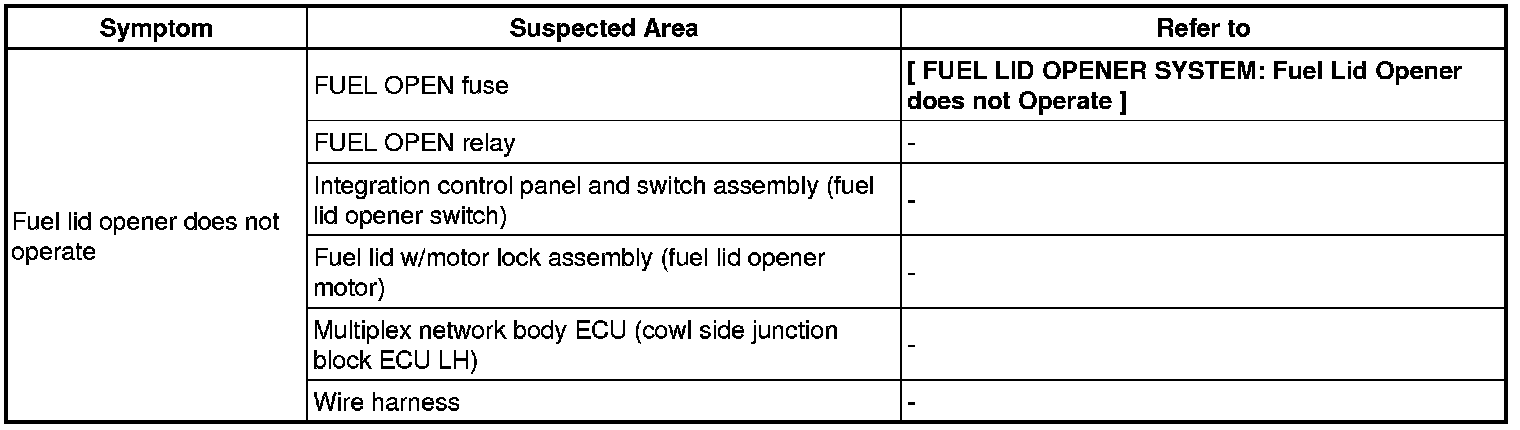

Fuel lid opener system
