On-Vehicle Inspection

ENGINE HOOD / DOOR: REAR DOOR: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT FRONT DOOR PANEL SUB-ASSEMBLY

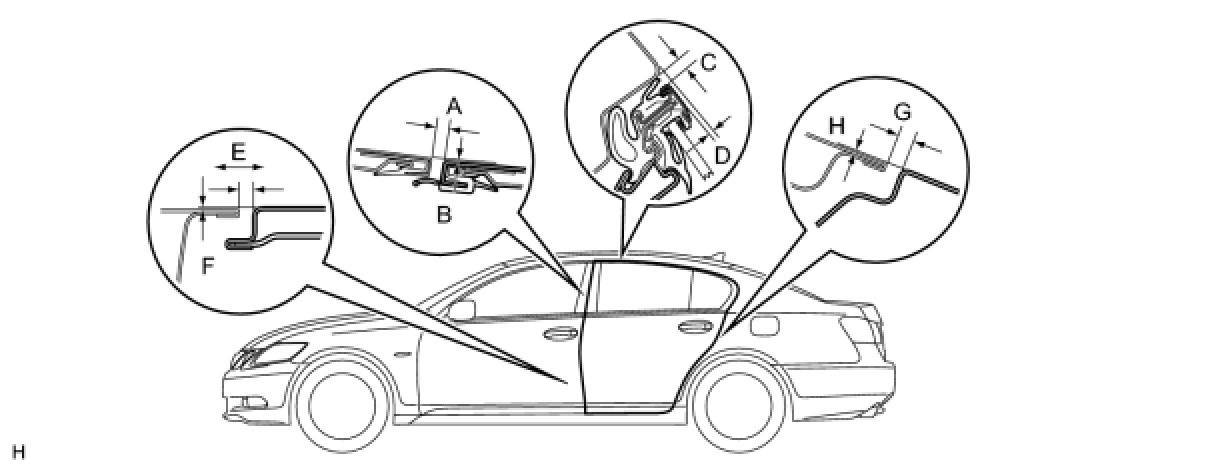

(a) Check that the clearance measurements of areas A to H are within the standard range.

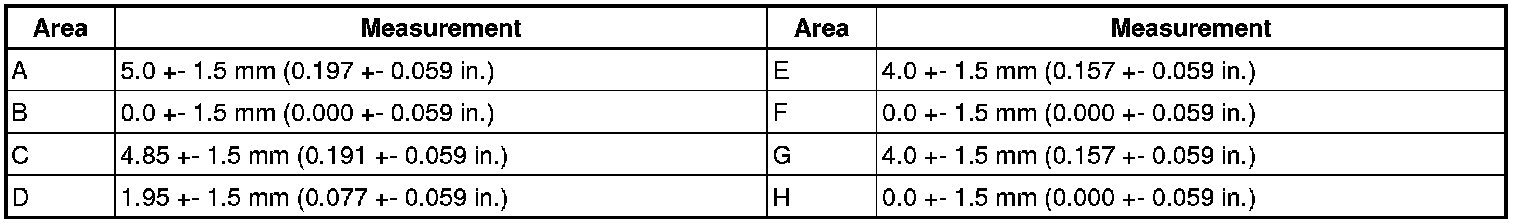

Standard clearance:
