Navigation Voice Circuit

NAVIGATION: NAVIGATION SYSTEM: Navigation Voice Circuit

Navigation Voice Circuit

DESCRIPTION

This circuit is used when the voice guidance in the navigation system is on.

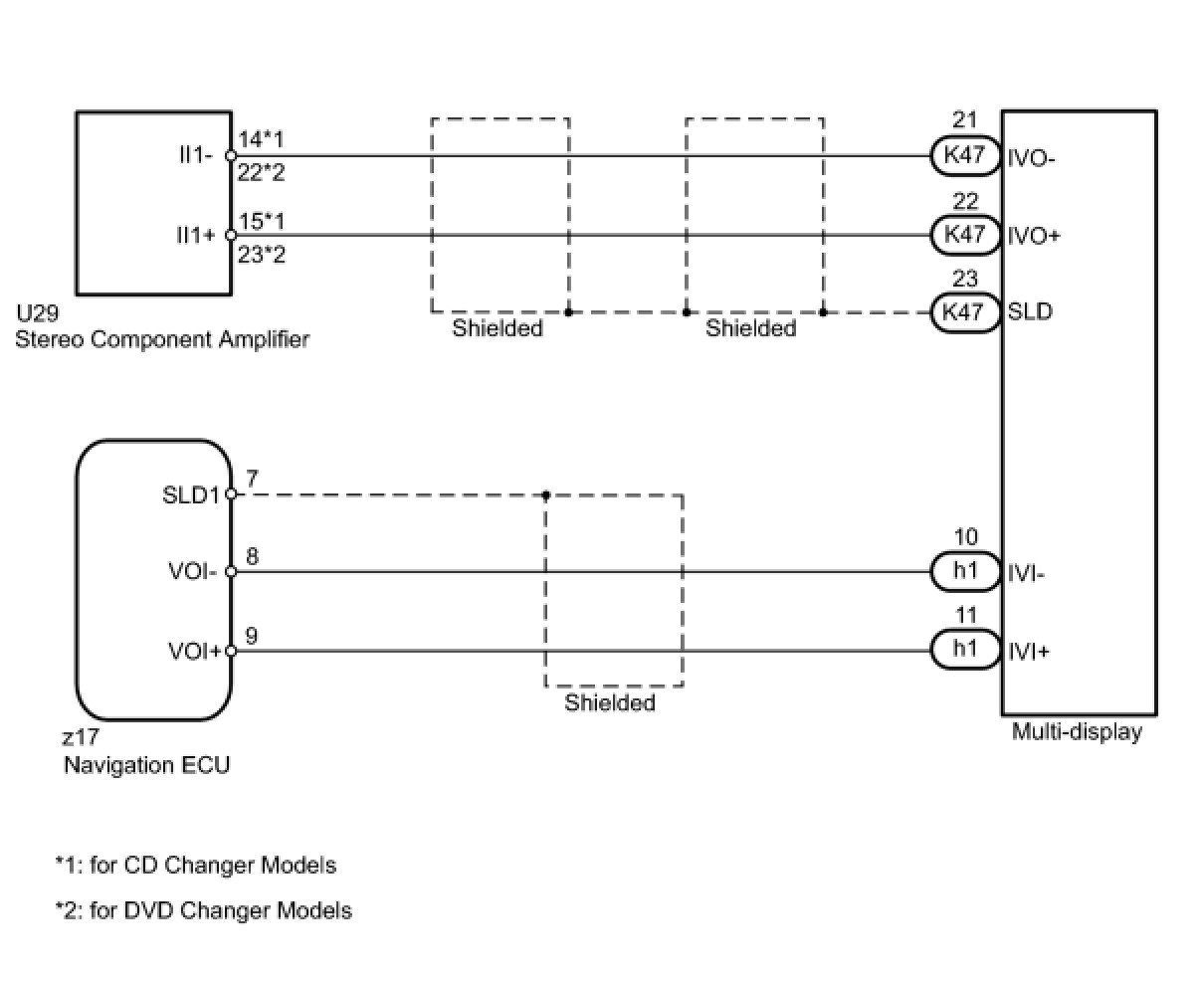

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - NAVIGATION ECU)

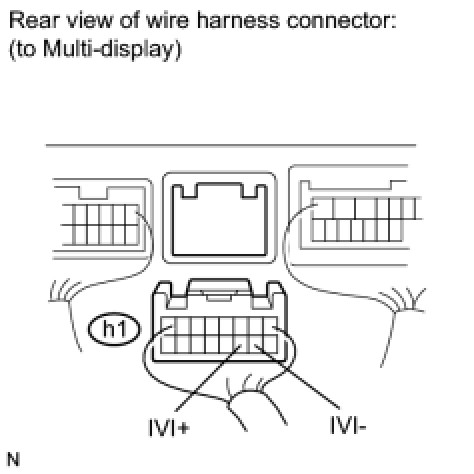

(a) Disconnect the h1 multi-display connector.

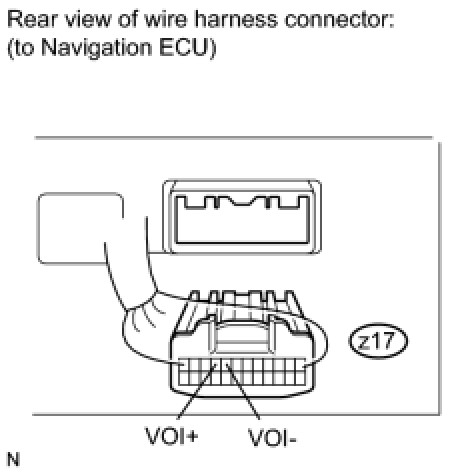

(b) Disconnect the z17 navigation ECU connector.

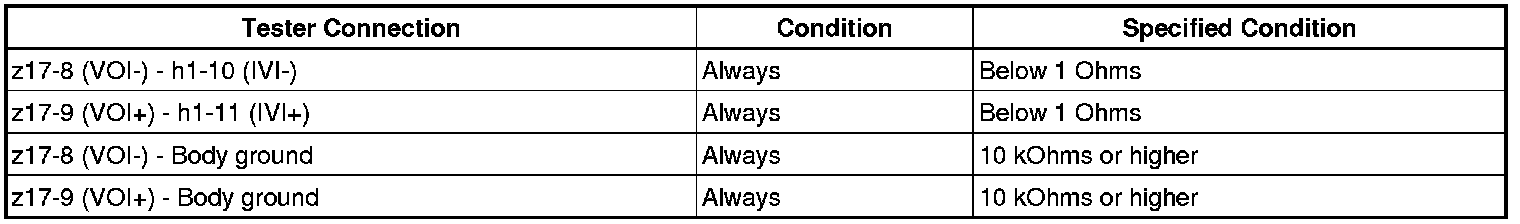

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. CHECK WIRE HARNESS (MULTI-DISPLAY - STEREO COMPONENT AMPLIFIER)

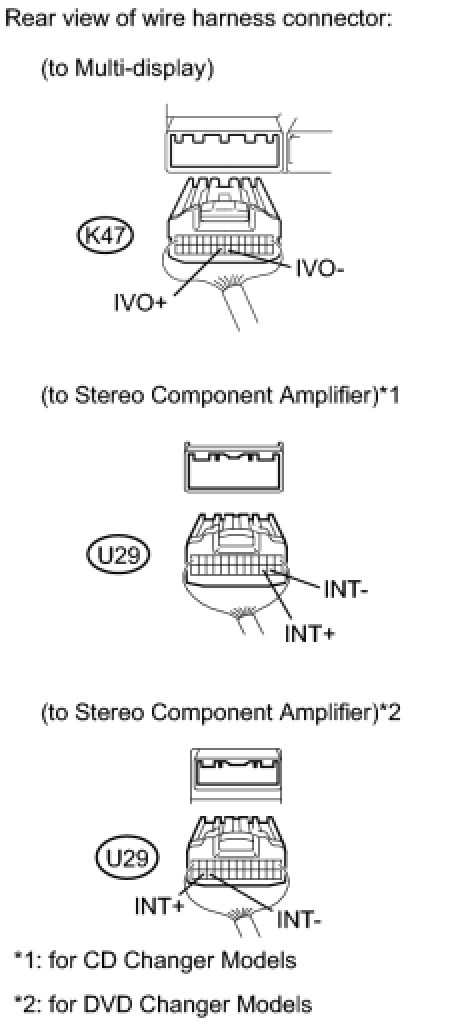

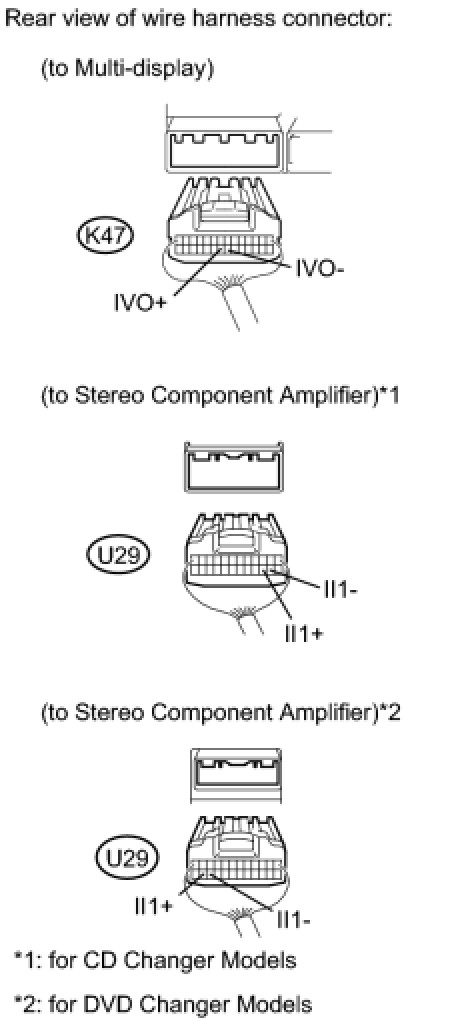

(a) Disconnect the K47 display connector.
(b) Disconnect the U29 amplifier connector.

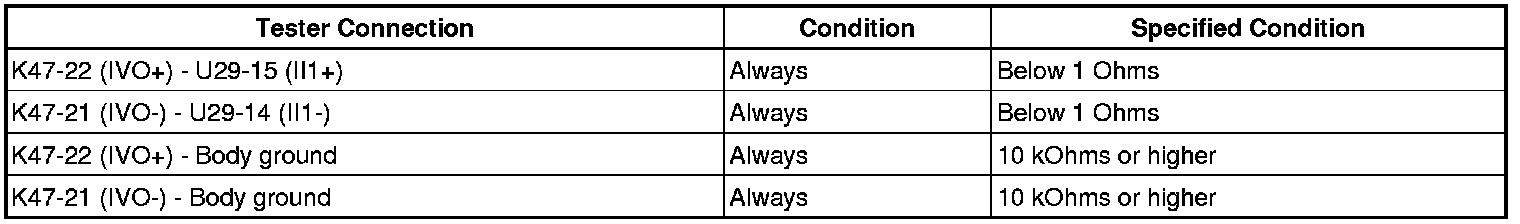

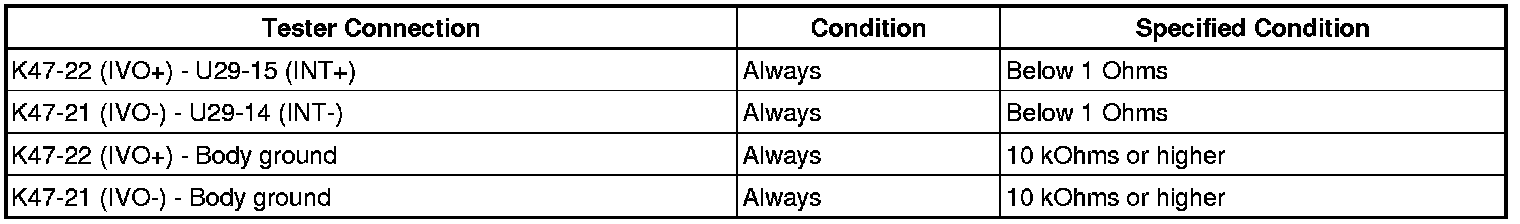

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
for CD changer models





for DVD changer models





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
