Intuitive Parking Assist System

PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

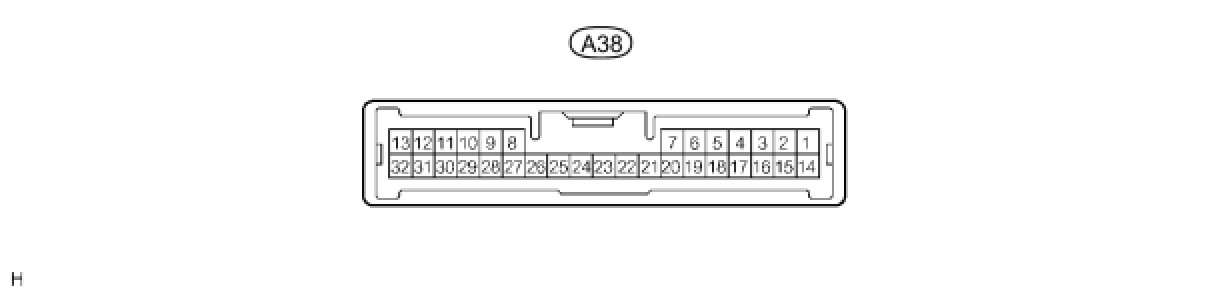

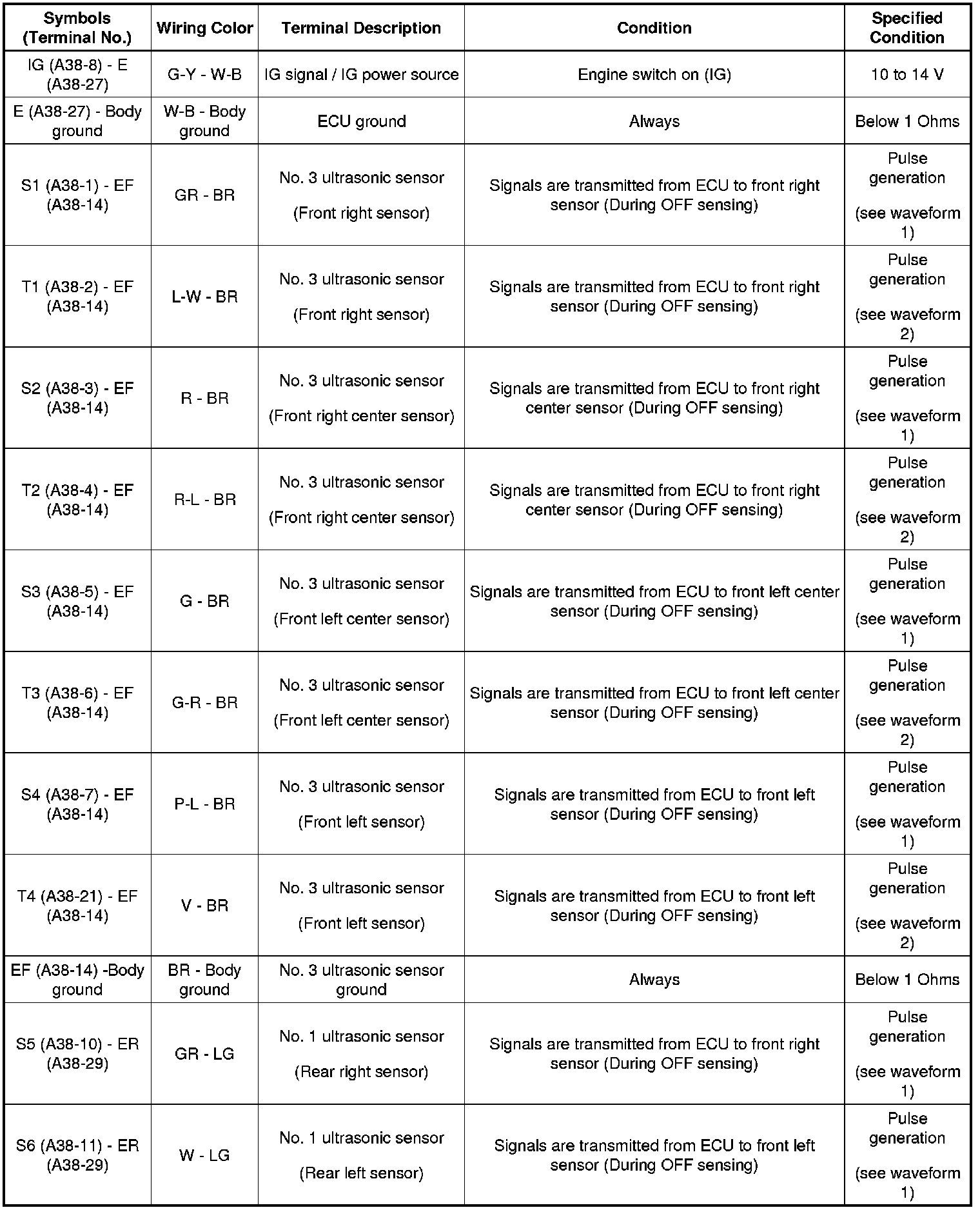

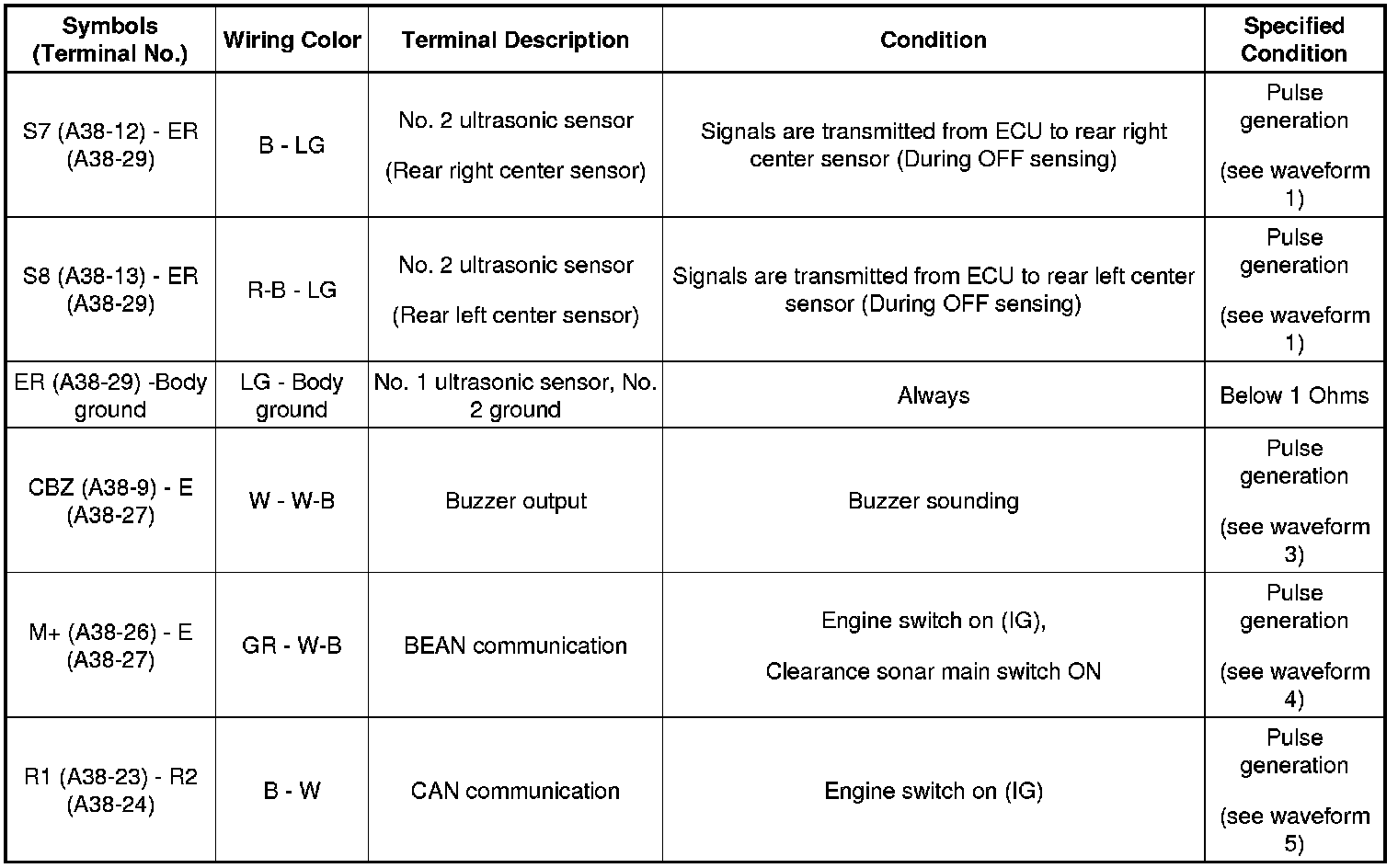

1. CHECK CLEARANCE WARNING ECU













(a) Reference:

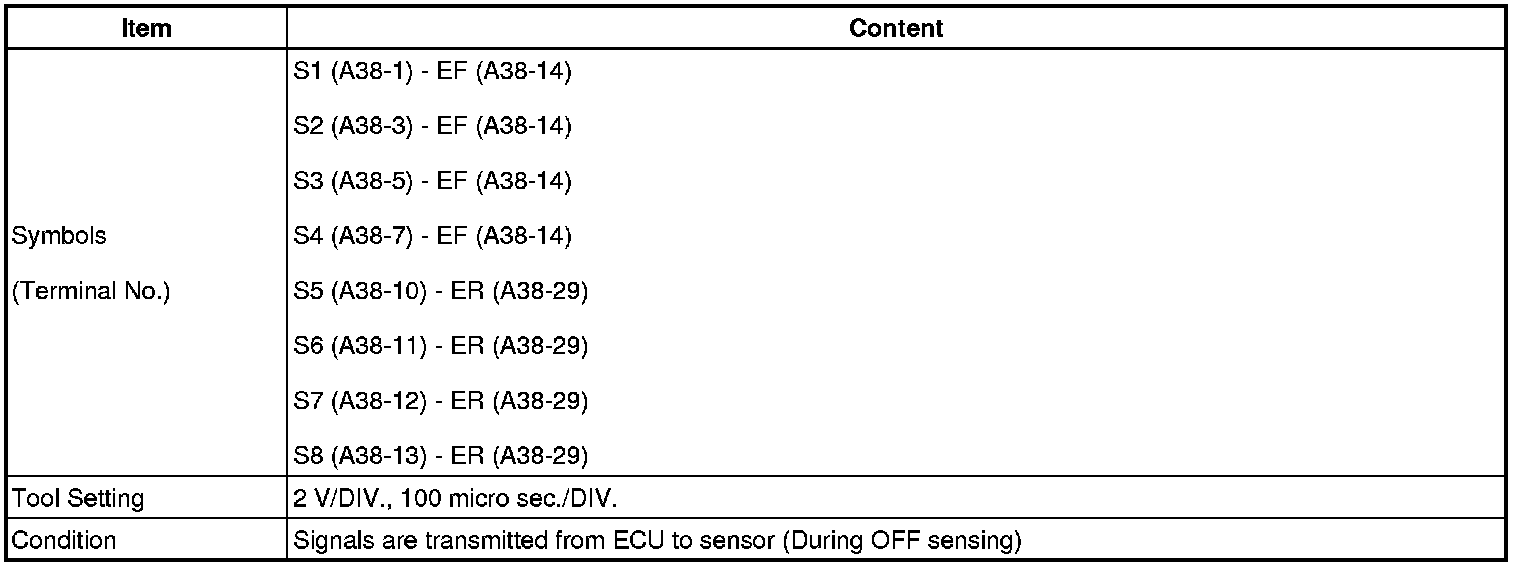

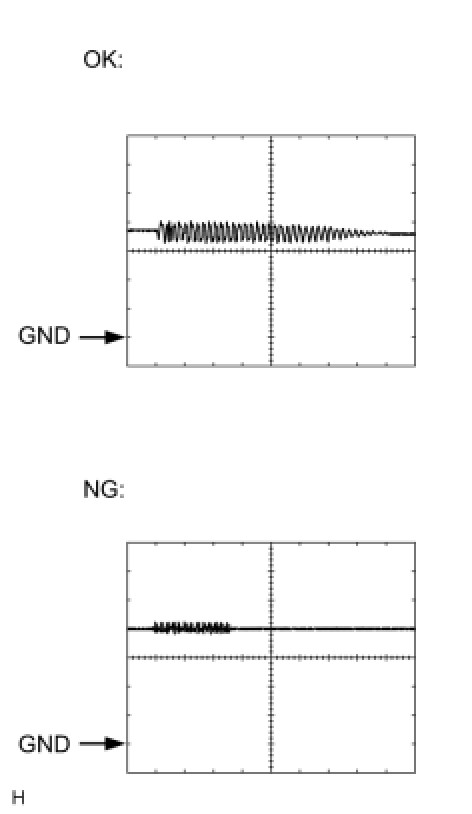

(1) Waveform 1

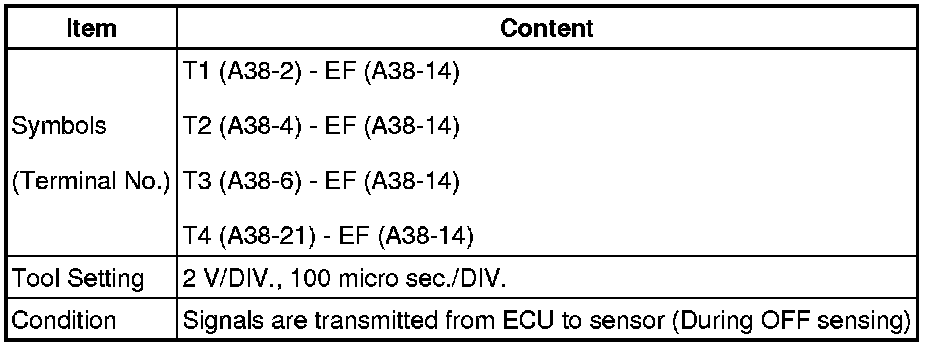

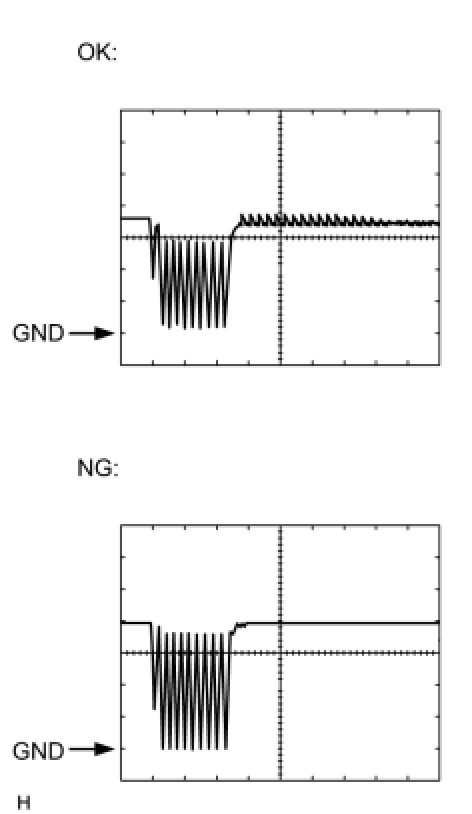

(2) Waveform 2

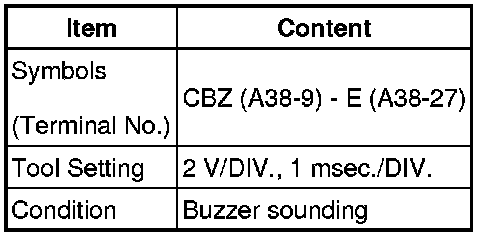

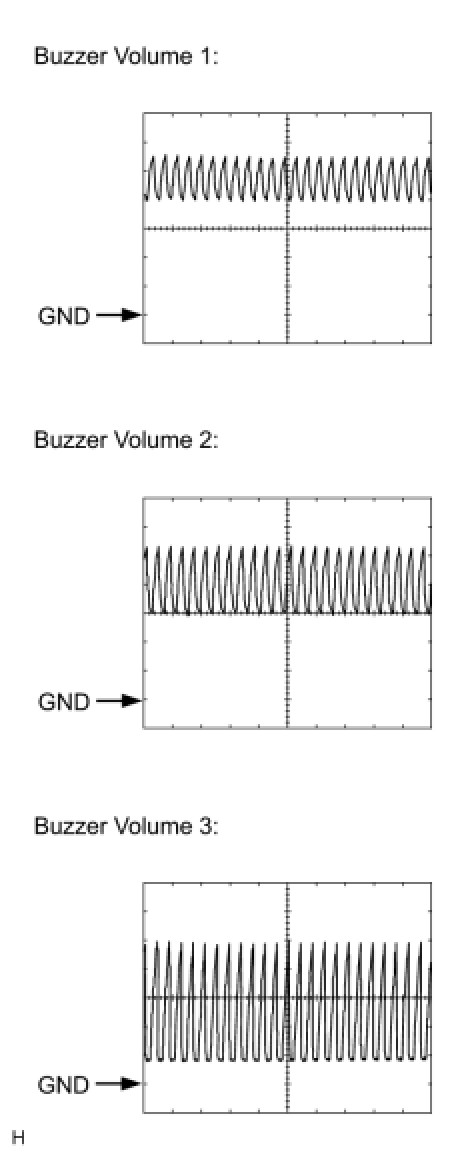

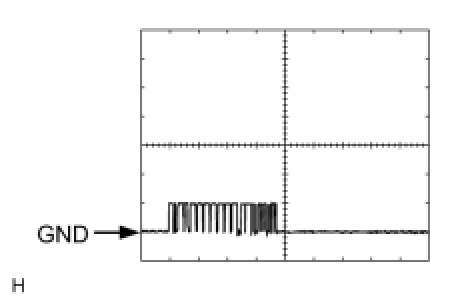

(3) Waveform 3

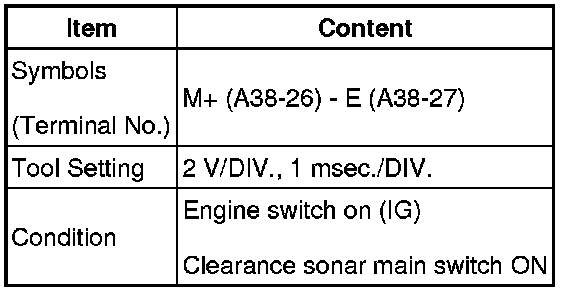

(4) Waveform 4

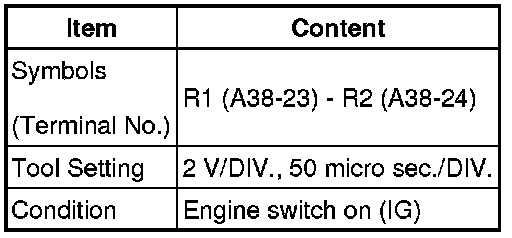

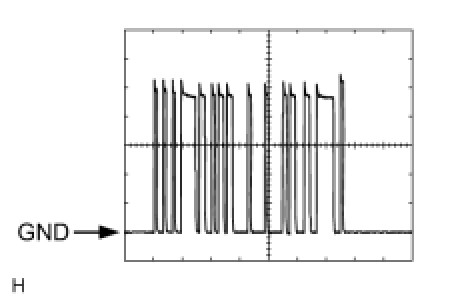

(5) Waveform 5
