Rear View Monitor System

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HOW TO PROCEED WITH TROUBLESHOOTING
HINT:
- Use theses procedures to troubleshoot the rear view monitor system.
- *: Use Techstream.

1. VEHICLE BROUGHT WORKSHOP
NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE
Standard voltage:
11 to 14 V
If the voltage is below 11 V, recharge or replace the battery before proceeding.
NEXT -- Continue to next step.

3. CHECK CAMERA LENS
(a) Check that the camera lens is not dirty with mud, foreign matter, etc.
NEXT -- Continue to next step.

4. BASIC INSPECTION
(a) Turn the engine switch on(ACC).
(b) Check whether or not the display appears on the multi-display.

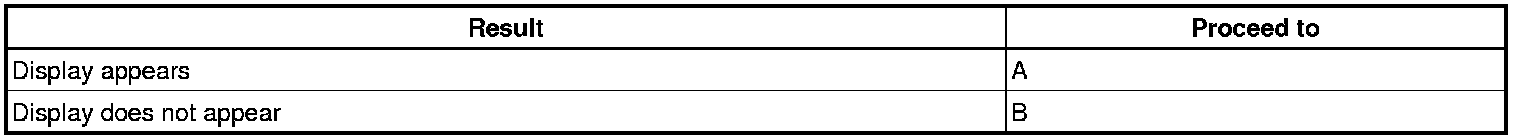

Result





B -- Go to NAVIGATION SYSTEM
A -- Continue to next step.

5. INSPECT COMMUNICATION FUNCTION OF CAN COMMUNICATION SYSTEM*
(a) Use Techstream to check if the CAN Communication System is functioning normally.

Result





B -- Go to CAN COMMUNICATION SYSTEM
A -- Continue to next step.

6. PROBLEM SYMPTOMS TABLE

Result





B -- Go to step 8
A -- Continue to next step.

7. OVERALL ANALYSIS AND TROUBLESHOOTING
(a) Terminals of ECU Rear View Monitor System.
NEXT -- Continue to next step.

8. ADJUST, REPAIR OR REPLACE
NEXT -- END
