Fail-Safe Chart

PRE-COLLISION: PRE-COLLISION SYSTEM: FAIL-SAFE CHART

FAIL-SAFE CHART

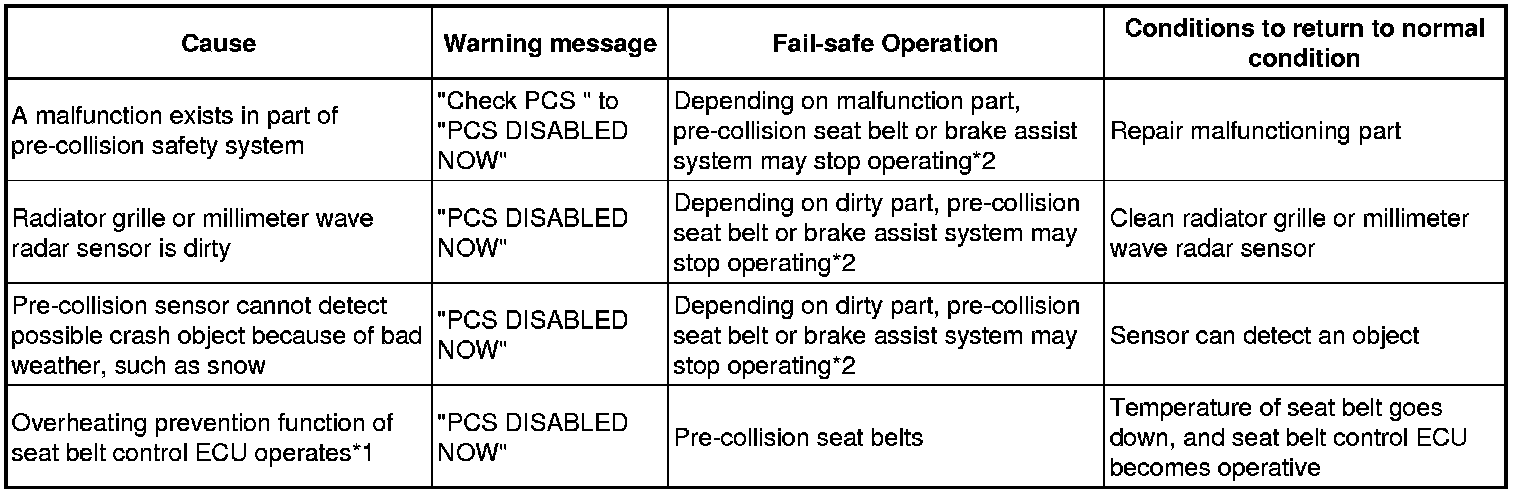

HINT: The pre-collision system fail-safe function and details are indicated in the table below.





*1: The overheating prevention function operates when the seat belt control ECU detects a rise in seat belt control ECU temperature because of excessive seat belt operation.
*2: The pre-collision seat belts operate only with sudden braking.
