Rear View Monitor System








PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: PARTS LOCATION

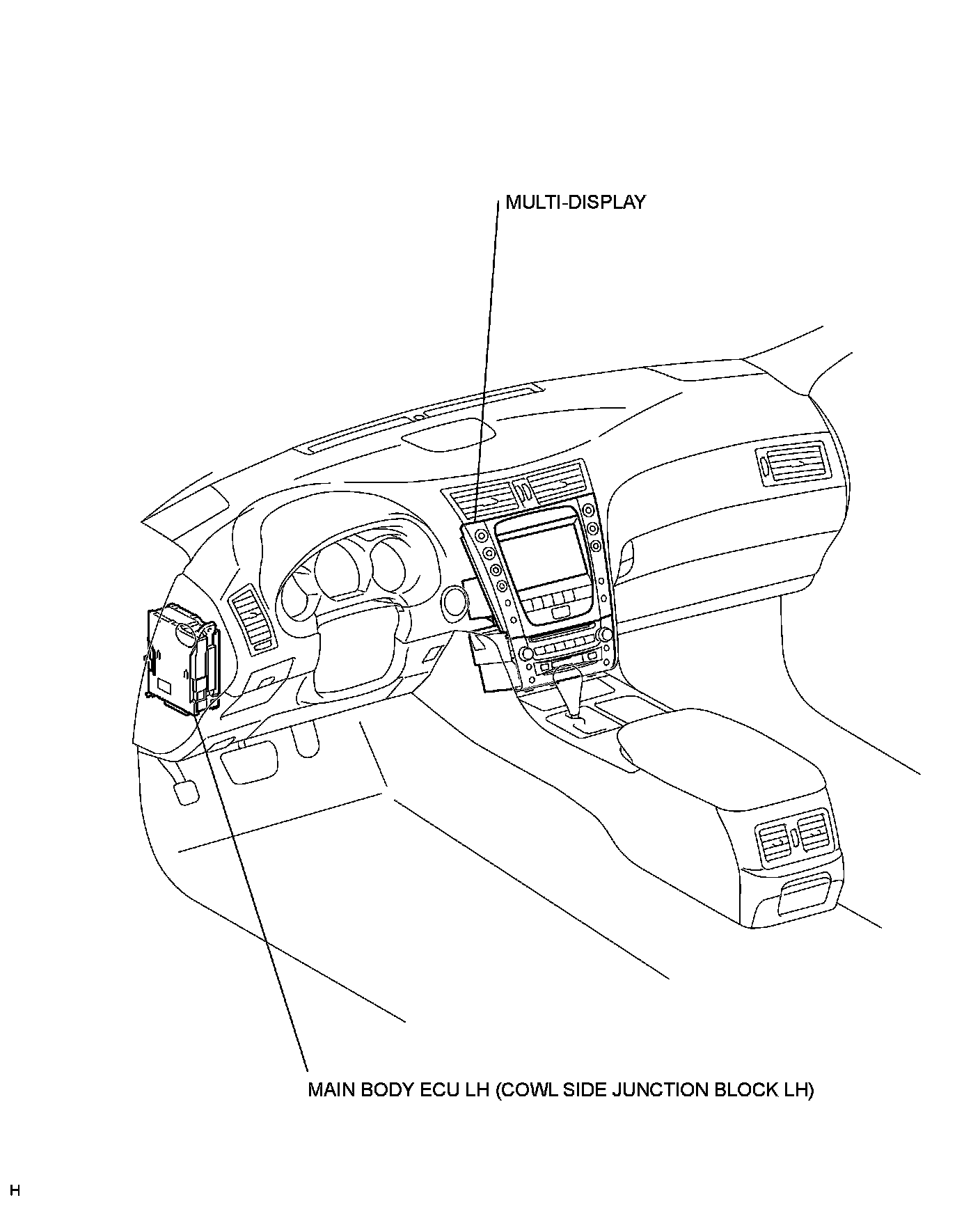

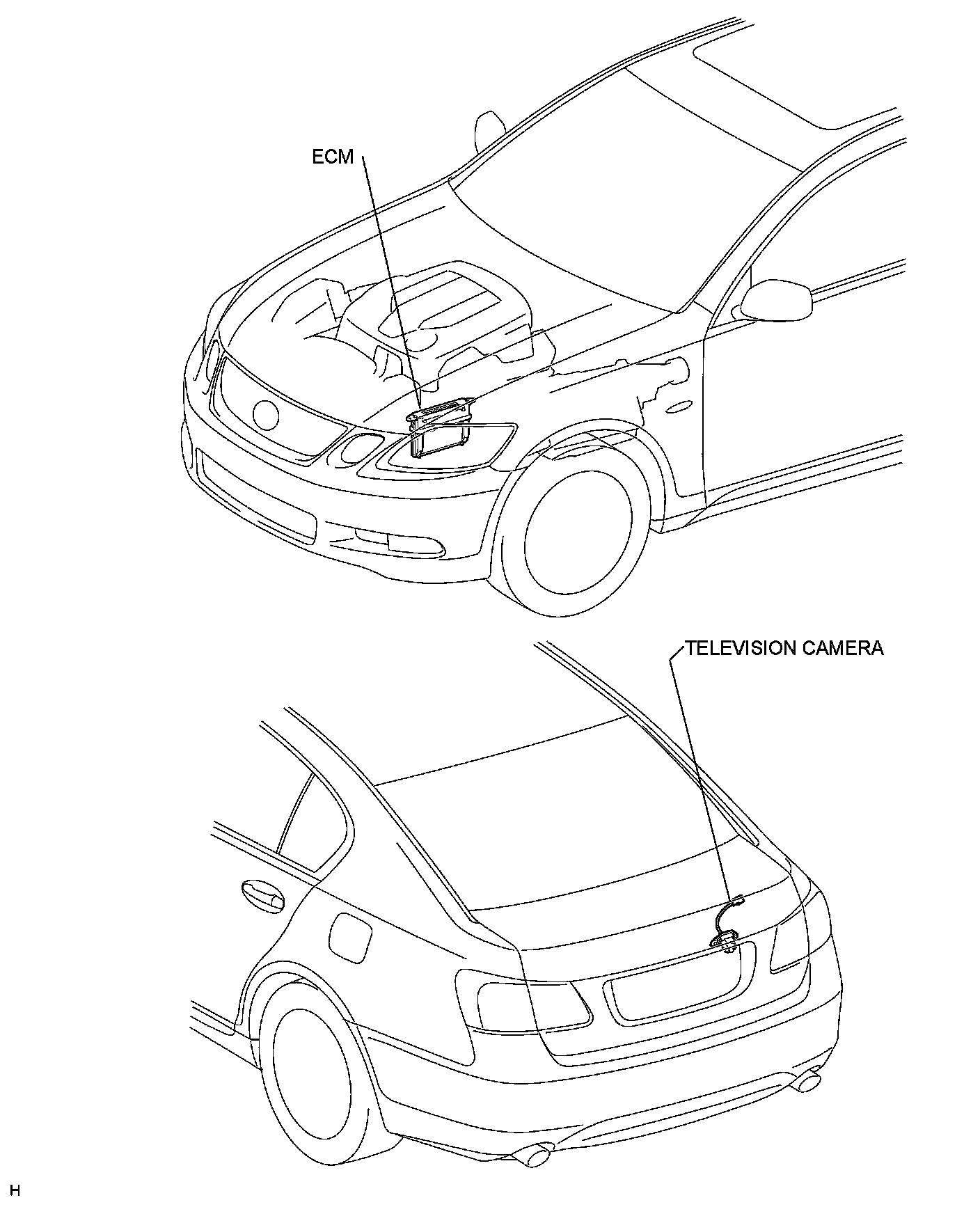

PARTS LOCATION

ILLUSTRATION
