Installation

PARK ASSIST / MONITORING: CLEARANCE WARNING BUZZER: INSTALLATION

INSTALLATION

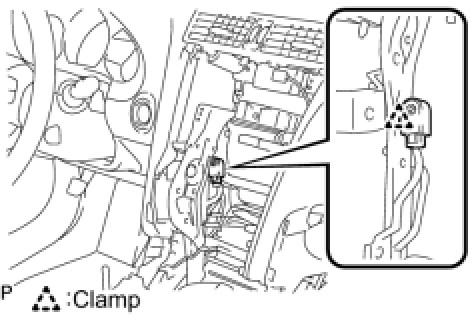

1. INSTALL NO. 1 CLEARANCE WARNING BUZZER
(a) Attach the clamp to install the clearance warning buzzer.
(b) Connect the connector.
2. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY Installation
3. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
4. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
5. INSTALL CONSOLE UPPER PANEL ASSEMBLY Installation
6. INSTALL FRONT CONSOLE UPPER PANEL GARNISH Installation
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
