PARK ASSIST / MONITORING: ULTRASONIC SENSOR: INSTALLATION

INSTALLATION





1. INSTALL NO. 1 ULTRASONIC SENSOR
(a) Install the sensor to the rear bumper.

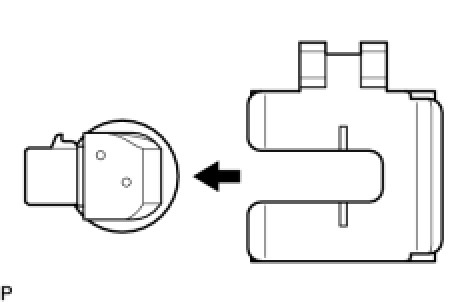

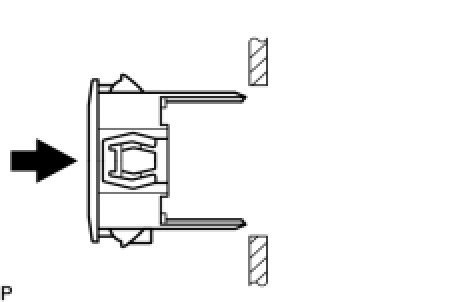

(b) Install the sensor retainer as shown in the illustration.

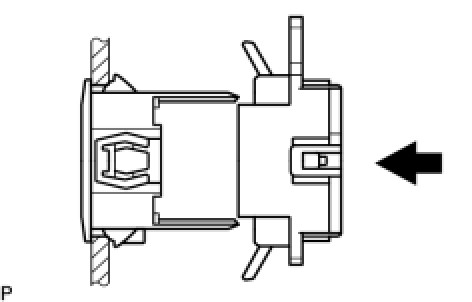

(c) Connect the sensor connector.





2. INSTALL NO. 2 ULTRASONIC SENSOR
(a) Install the sensor to the rear bumper.
(b) Install the sensor retainer as shown in the illustration.
(c) Connect the sensor connector.
3. INSTALL REAR BUMPER ASSEMBLY Installation
4. INSTALL REAR BUMPER NO. 1 PLATE
5. INSTALL NO. 3 ULTRASONIC SENSOR

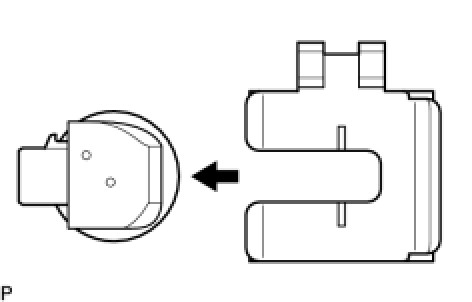

(a) Install the sensor retainer to the front bumper.





(b) Install the sensor as shown in the illustration.
(c) Connect the sensor connector.
6. INSTALL FRONT BUMPER ASSEMBLY Installation
7. INSTALL COOL AIR INTAKE DUCT SEAL Installation
8. ADJUST FOG LIGHT AIM Installation
