ENGINE IMMOBILIZER: CERTIFICATION ECU: INSTALLATION

INSTALLATION

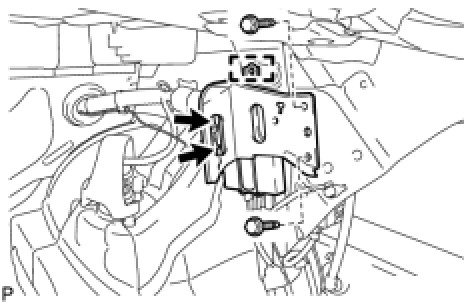

1. INSTALL CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)





(a) Engage the clamp.
(b) Install the certification ECU (smart key ECU assembly) with the 2 bolts.
(c) Connect the connectors.
2. INSTALL REAR ACCELERATION SENSOR (w/ AVS) Installation
3. INSTALL LUGGAGE COMPARTMENT TRIM INNER COVER RH Installation
4. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER Installation
5. INSTALL ROPE HOOK
6. INSTALL REAR FLOOR FINISH PLATE Installation
7. INSTALL ROPE HOOK ASSEMBLY
8. INSTALL TOOL BOX Installation
9. INSTALL TOOL BOX BOARD
10. INSTALL LUGGAGE COMPARTMENT TRIM SIDE COVER RH Installation
11. INSTALL LUGGAGE COMPARTMENT TRIM SIDE COVER LH Installation
12. INSTALL LUGGAGE COMPARTMENT FLOOR MAT Installation
13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

14. INSPECT ADAPTIVE VARIABLE SUSPENSION SYSTEM (w/ AVS)
(a) Inspect the adaptive variable suspension system Adaptive Variable Suspension System.
15. REGISTER ECU COMMUNICATION ID
NOTE:
When replacing the certification ECU (smart key ECU assembly), perform initialization Engine Immobilizer System.

16. REGISTER KEY
NOTE:
When replacing the certification ECU (smart key ECU assembly), perform initialization Engine Immobilizer System.
