Removal

AUDIO / VISUAL: RADIO ANTENNA CORD: REMOVAL

REMOVAL

1. SET RADIO RECEIVER ASSEMBLY TO SHIPMENT MODE Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

3. REMOVE FRONT CONSOLE UPPER PANEL GARNISH Removal
4. REMOVE CONSOLE UPPER PANEL ASSEMBLY Removal
5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal
6. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal
7. REMOVE CONSOLE BOX PLATE Removal
8. REMOVE CONSOLE BOX REGISTER ASSEMBLY Removal
9. REMOVE CONSOLE BOX Removal
10. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY Removal
11. CONFIRM RADIO RECEIVER ASSEMBLY SHIPMENT MODE Removal

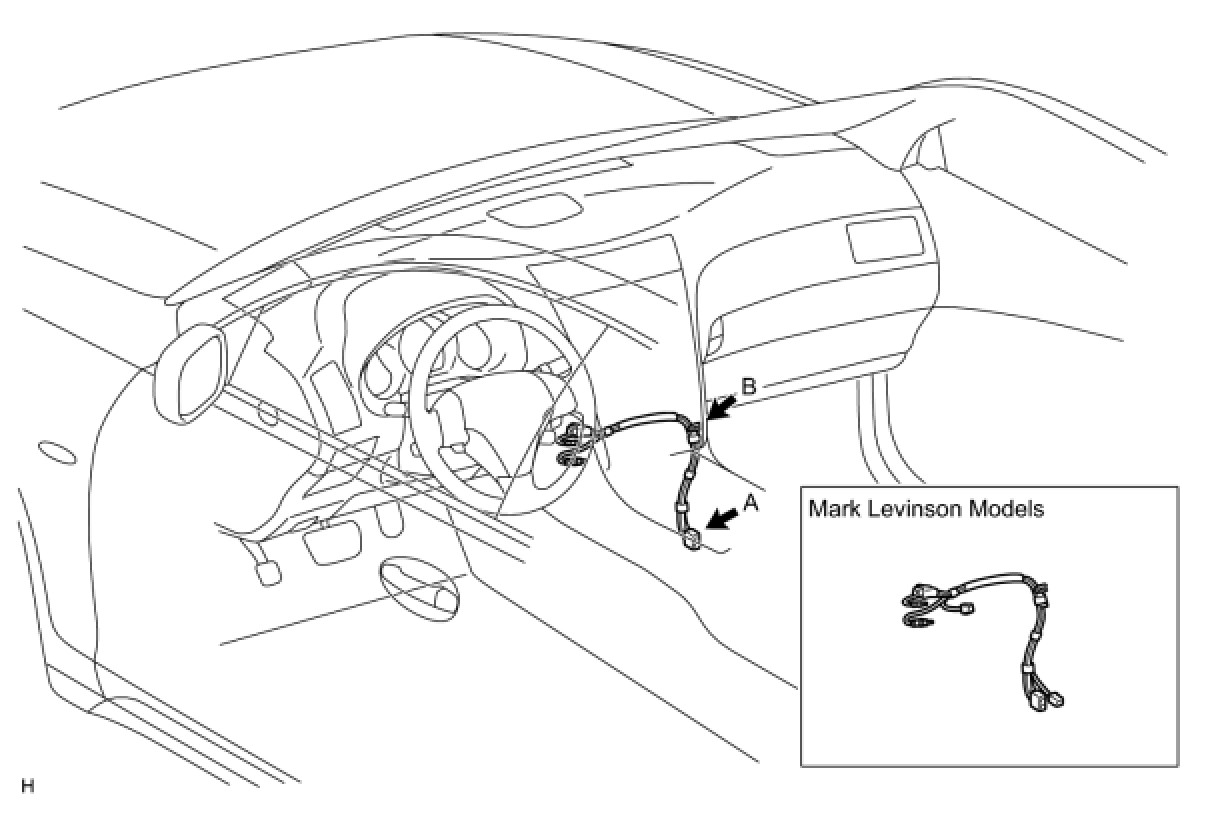

12. REMOVE ANTENNA CORD SUB-ASSEMBLY





(a) Disconnect the connector labeled A.
(b) Detach the clip labeled B and remove the antenna cord.
13. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
14. REMOVE REAR SEAT HEADREST ASSEMBLY LH AND RH
15. REMOVE REAR SEAT HEADREST ASSEMBLY CENTER
16. REMOVE REAR SEATBACK ASSEMBLY Removal
17. REMOVE REAR DOOR SCUFF PLATE RH Removal
18. REMOVE REAR SEAT SIDE GARNISH RH Removal

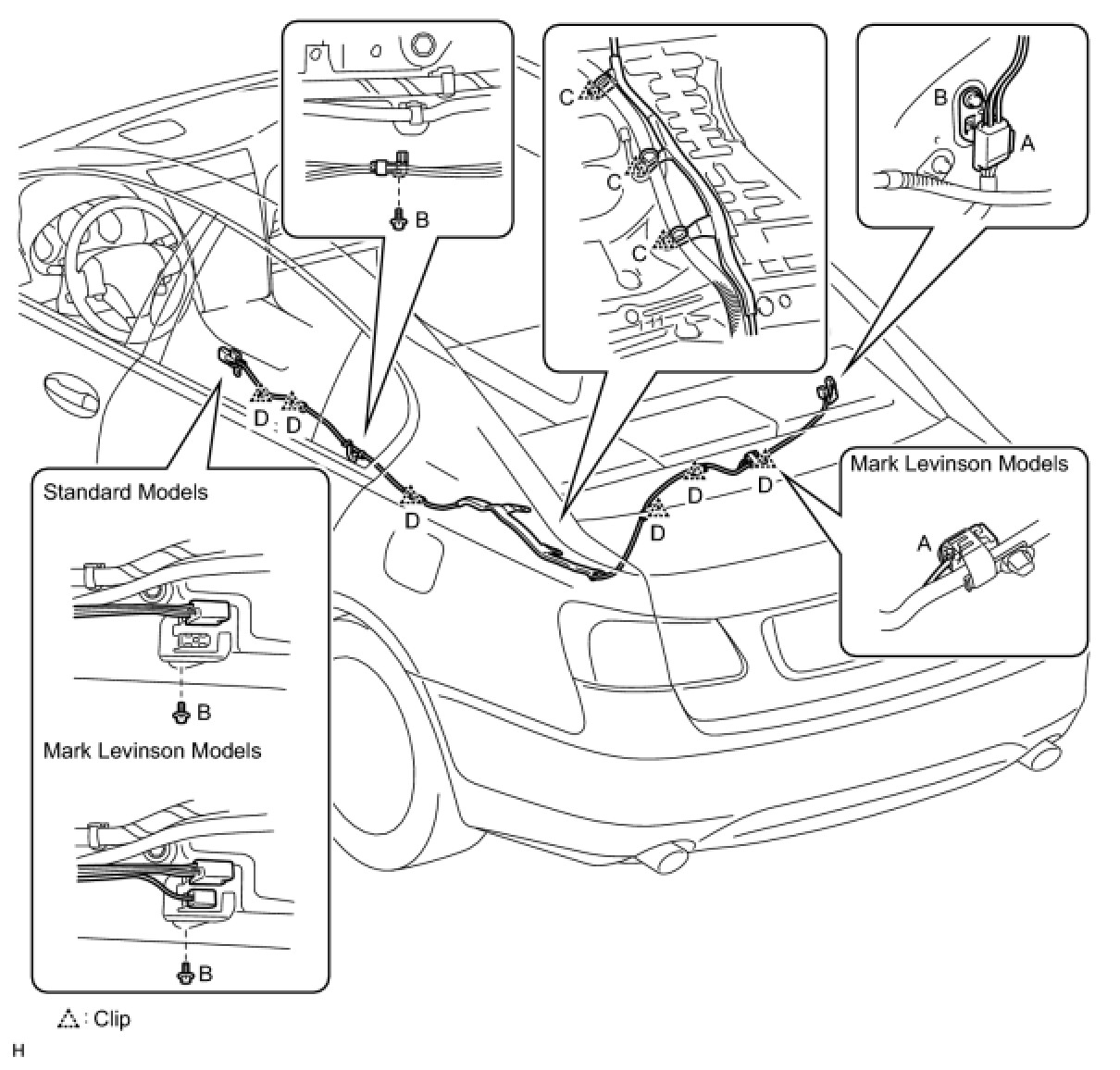

19. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY





(a) Disconnect the connectors labeled A.
(b) Remove the 3 bolts labeled B.
(c) Detach the antenna cord protector's 3 clips labeled C from the floor stud bolts.
(d) Detach the 6 clips labeled D and remove the antenna cord.
