A760E Automatic Transmission: Electronic Controlled Automatic Transmission System

A760E AUTOMATIC TRANSMISSION: ELECTRONIC CONTROLLED AUTOMATIC TRANSMISSION SYSTEM: U0100: Lost Communication with ECM / PCM "A"

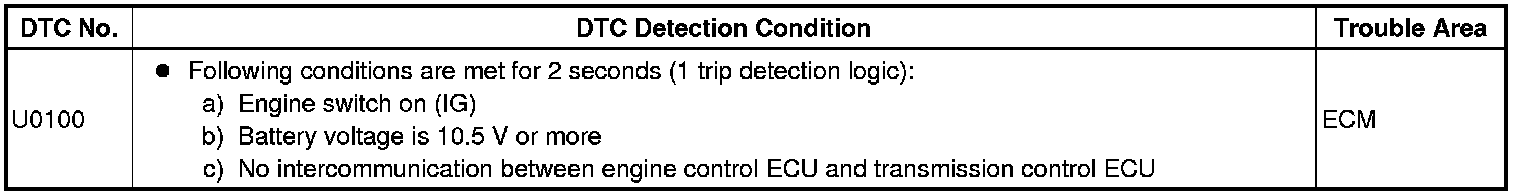

DTC U0100 - Lost Communication with ECM / PCM "A"

DESCRIPTION

The engine control unit and the transmission control unit are located inside the ECM. The engine control unit intercommunicates with the transmission control ECU through the Controller Area Network (CAN).
If there is a problem in this intercommunication, the ECM sets a DTC.

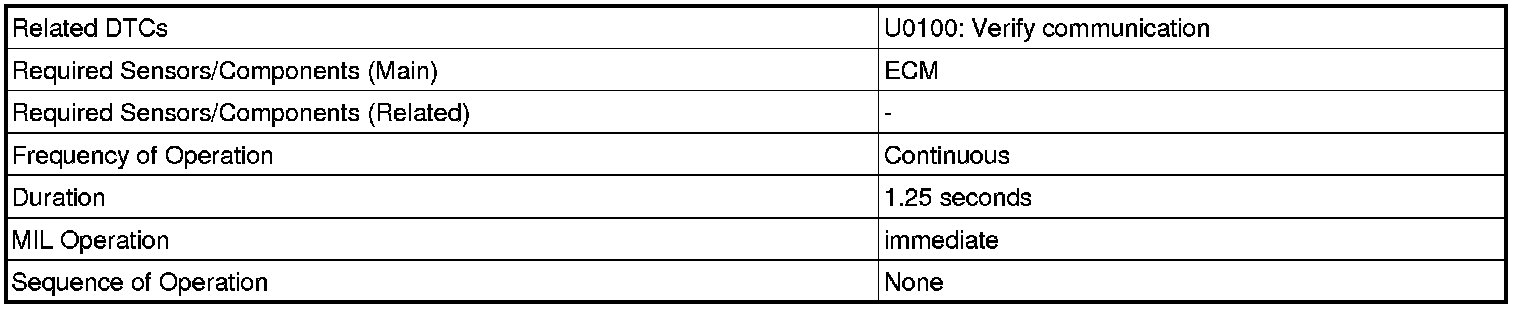

MONITOR STRATEGY

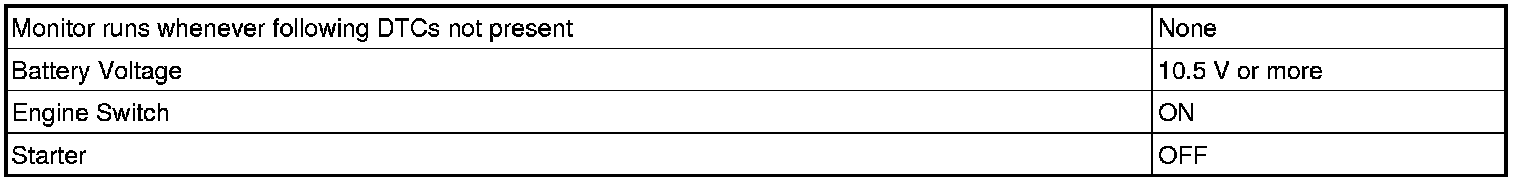

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





INSPECTION PROCEDURE

PROCEDURE

1. CHECK OTHER DTC OUTPUT (IN ADDITION TO DTC U0100)
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the tester ON.
(d) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
(e) Read DTCs.

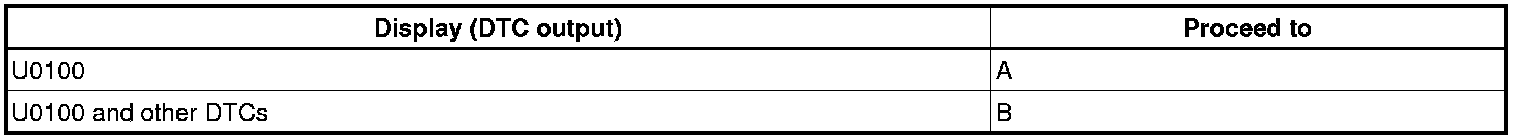

Result:






B -- GO TO DTC CHART
A -- REPLACE ECM
