Part 2

AA80E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: P0796: Pressure Control Solenoid "C" Performance (Shift Solenoid Valve SL3)

DTC P0796 - Pressure Control Solenoid "C" Performance (Shift Solenoid Valve SL3) (Continued)

TYPICAL MALFUNCTION THRESHOLDS

OFF malfunction
- When one of following conditions is met: OFF malfunction (A), (B), (C), (D) or (E)

OFF malfunction (A)

When either condition below is met: Condition (1) or (2)

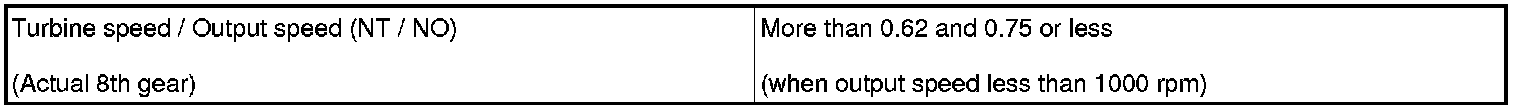

Condition (1)

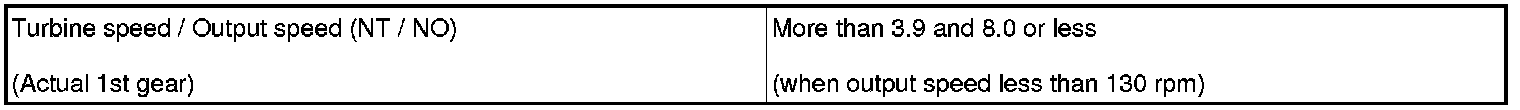

Condition (2)






ON malfunction
- When one of following conditions is met: ON malfunction (A), (B), (C), (D), (E) or (F)
2 detections are necessary per driving cycle:
1st detection: temporary flag ON
2nd detection: pending fault code ON

ON malfunction (A), (B) and (C)

When either condition below is met: Condition (1) or (2)

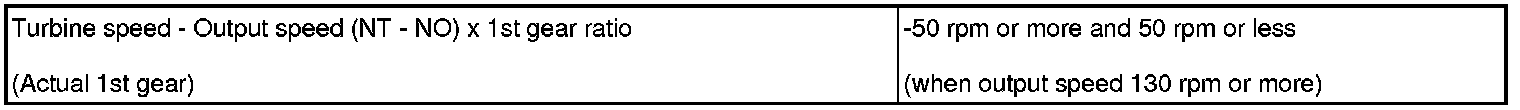

Condition (1)

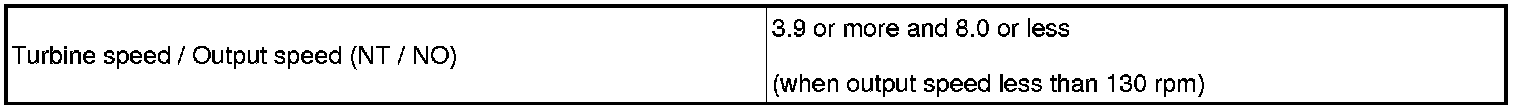

Condition (2)





Condition (1)

When one of the following conditions is met: Condition (a), (b), (c), (d), (e), (f), (g) or (h)

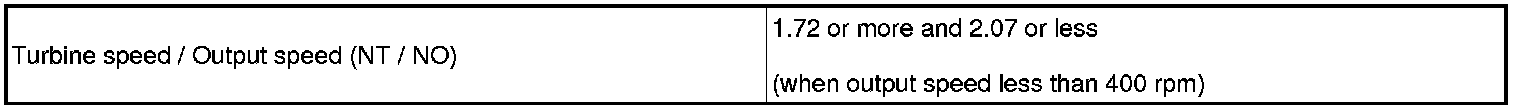

Condition (a)

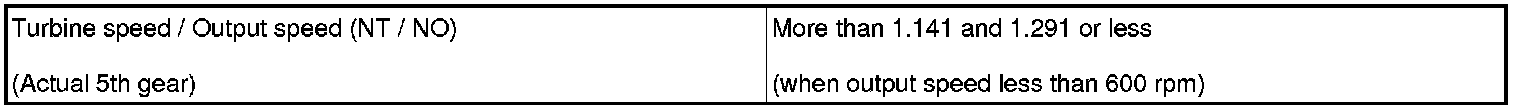

Condition (b)

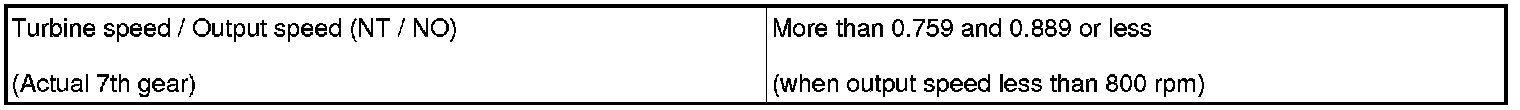

Condition (c)

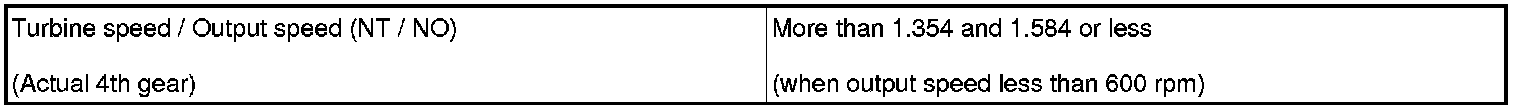

Condition (d)





Condition (e)





Condition (f)





Condition (g)





Condition (h)
