AA80E Automatic Transmission: Automatic Transmission System

AA80E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: P0560: System Voltage

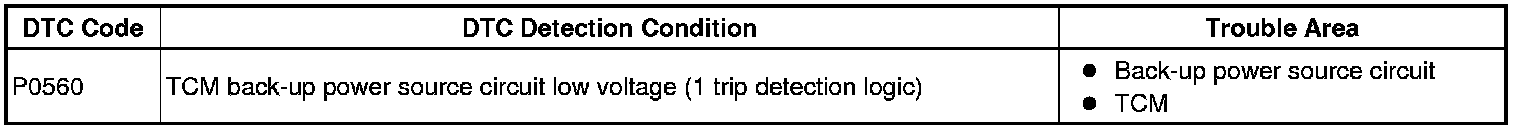

DTC P0560 - System Voltage

DESCRIPTION

The battery supplies electricity to the TCM even when the engine switch is off. This power allows the TCM to store data such as DTC history, freeze frame data and fuel trim values. If the battery voltage falls below a minimum level, the stored TCM data is cleared and the TCM determines that there is a malfunction in the power supply circuit. When the engine is next started, the TCM will illuminate the MIL and set the DTC.





HINT: If DTC P0560 is set, the TCM does not store other DTCs.

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS

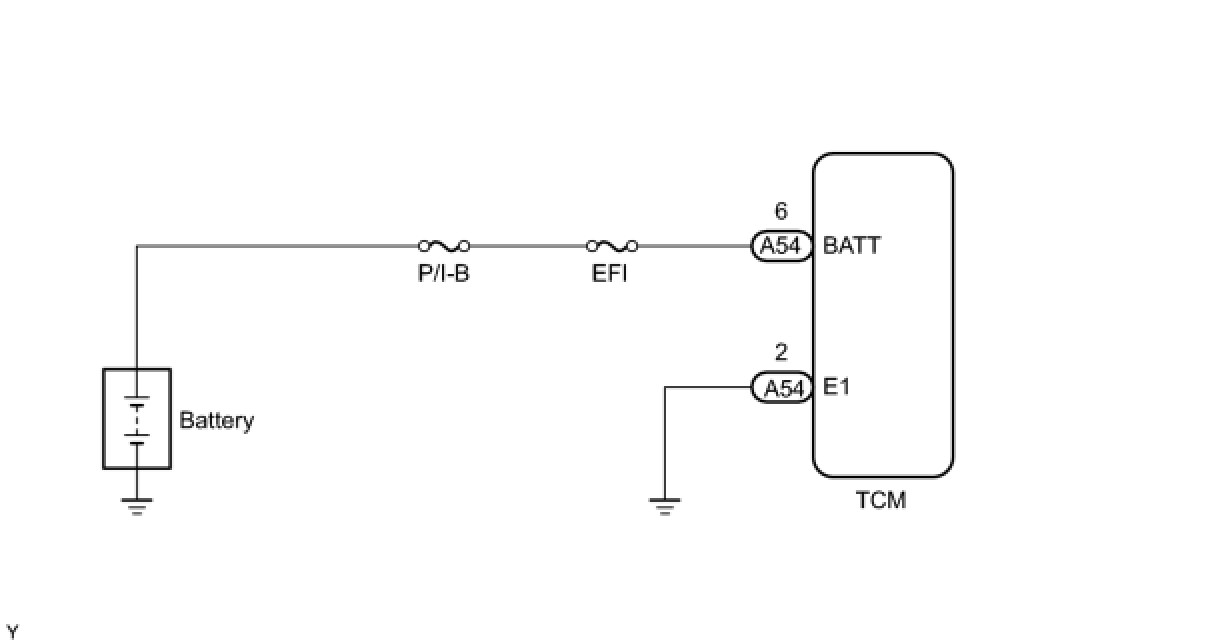

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK TCM (POWER SOURCE, GROUND)

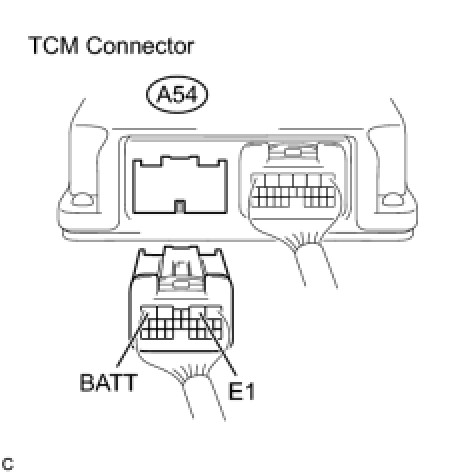

(a) Disconnect the TCM connectors.
(b) Measure the voltage of the wire harness side connectors.
Standard voltage:





(c) Measure the resistance of the wire harness side connector.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (TCM - BATTERY, BODY GROUND)
OK -- Continue to next step.

2. REPLACE TCM
(a) Replace the TCM Removal.
NEXT -- PERFORM A/T CODE REGISTRATION
