Audio and Visual System

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: 45-46: Scratched/Reversed Disc

DTC 45-46 - Scratched/Reversed Disc

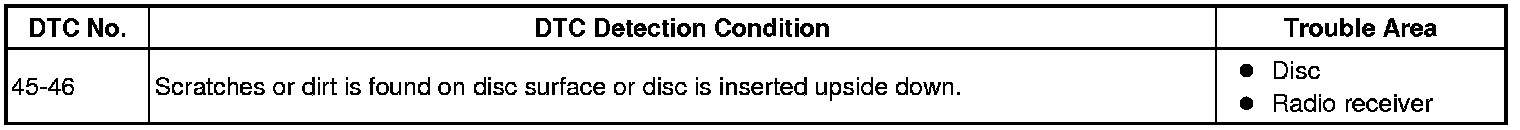

DESCRIPTION





INSPECTION PROCEDURE
HINT: After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK THAT DISC IS INSERTED PROPERLY
(a) Check whether or not the disc is inserted upside down.
OK:
Disc is properly inserted.
NG -- INSERT DISC PROPERLY
OK -- Continue to next step.

2. CHECK DISC




(a) Check that the disc is not deformed or cracked.
OK:
No deformation or cracks on the disc.
NG -- CHANGE DISC
OK -- Continue to next step.

3. DISC CLEANING




(a) Disc cleaning
(1) If dirt is on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.
NOTE:
Do not use a conventional record cleaner or antistatic preservative.

NEXT -- Continue to next step.

4. CLEAR DTC
(a) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.
NEXT -- Continue to next step.

5. RECHECK DTC
(a) Recheck DTCs and check if the same trouble occurs again.
OK:
Malfunction disappears.
OK -- END
NG -- Continue to next step.

6. REPLACE DISC WITH ANOTHER AND RECHECK
(a) Replace the disc and recheck.
(1) Replace the disc with a normal one.
(2) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
(3) Recheck for DTCs and check if the same trouble occurs again.
OK:
Malfunction disappears.
NG -- REPLACE RADIO RECEIVER
OK -- END
