Invalid Data Received from Acceleration Sensor

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C1442/44: Invalid Data Received from Acceleration Sensor

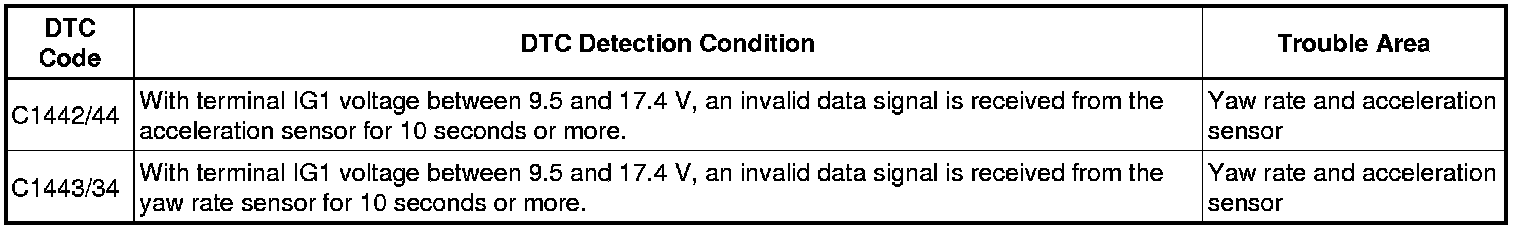

DTC C1442/44 - Invalid Data Received from Acceleration Sensor

DTC C1443/34 - Invalid Data Received from Yaw Rate Sensor

DESCRIPTION

The skid control ECU receives signals from the yaw rate and acceleration sensor via the CAN communication system.
The yaw rate sensor has a built-in acceleration sensor and detects the vehicle condition.






INSPECTION PROCEDURE
NOTE:
When replacing the yaw rate and acceleration sensor, perform zero point calibration Vehicle Stability Control System.

PROCEDURE

1. CHECK DTC
(a) Clear the DTCs Vehicle Stability Control System.
(b) Start and idle the engine for 60 seconds, and then stop the engine.
(c) Check if the same DTC is recorded Vehicle Stability Control System.

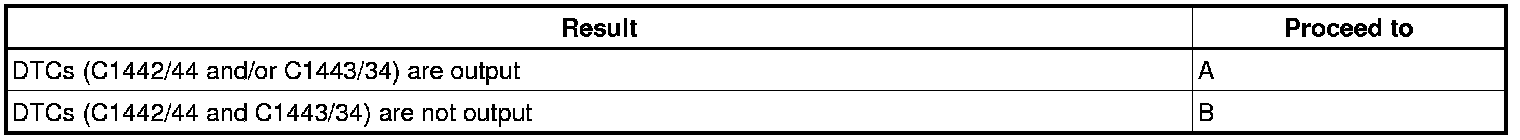

Result:






B -- CHECK FOR INTERMITTENT PROBLEMS (SYMPTOM SIMULATION)
A -- REPLACE YAW RATE AND ACCELERATION SENSOR
