A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Lexus Link System
Lexus Link System

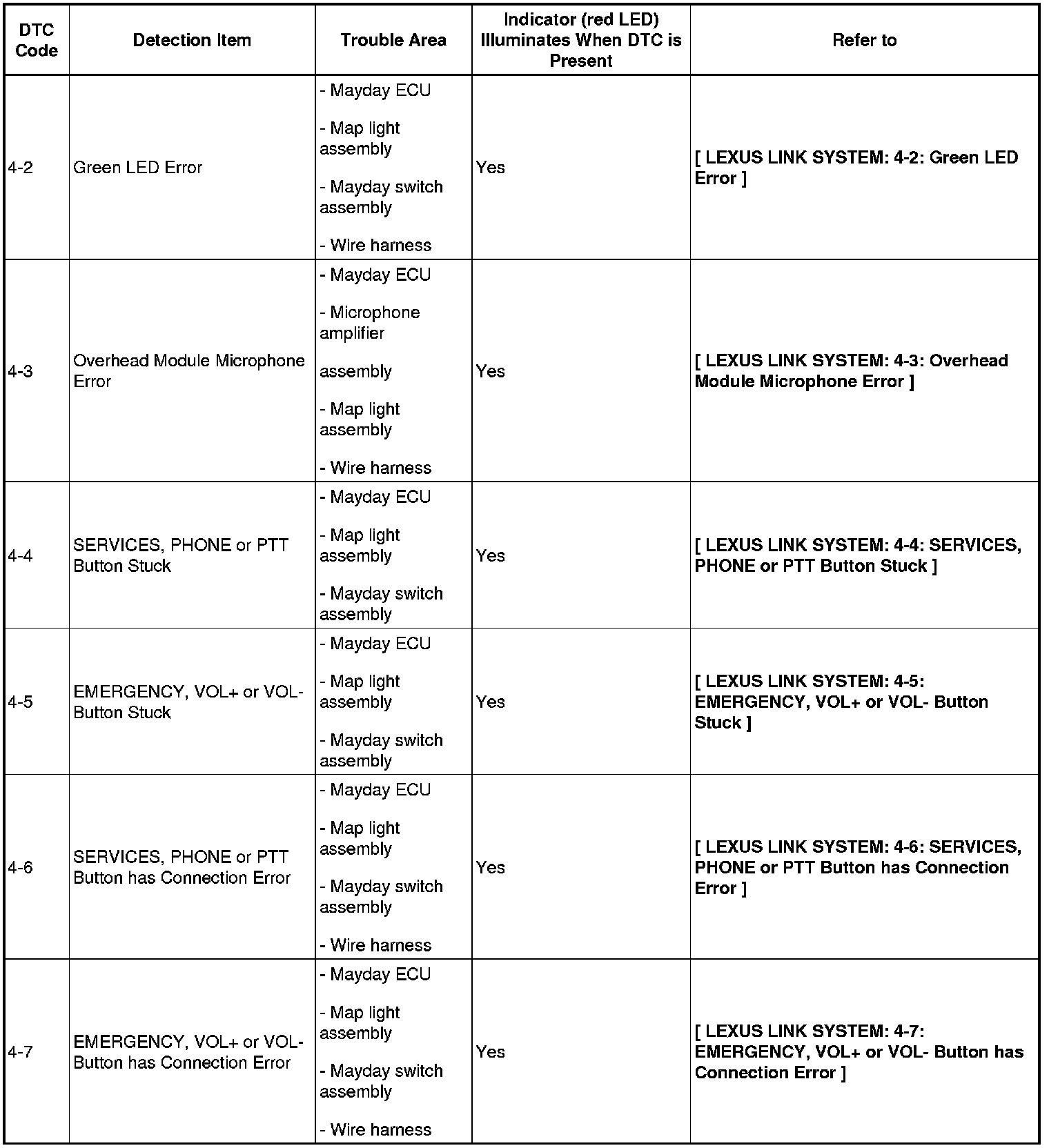

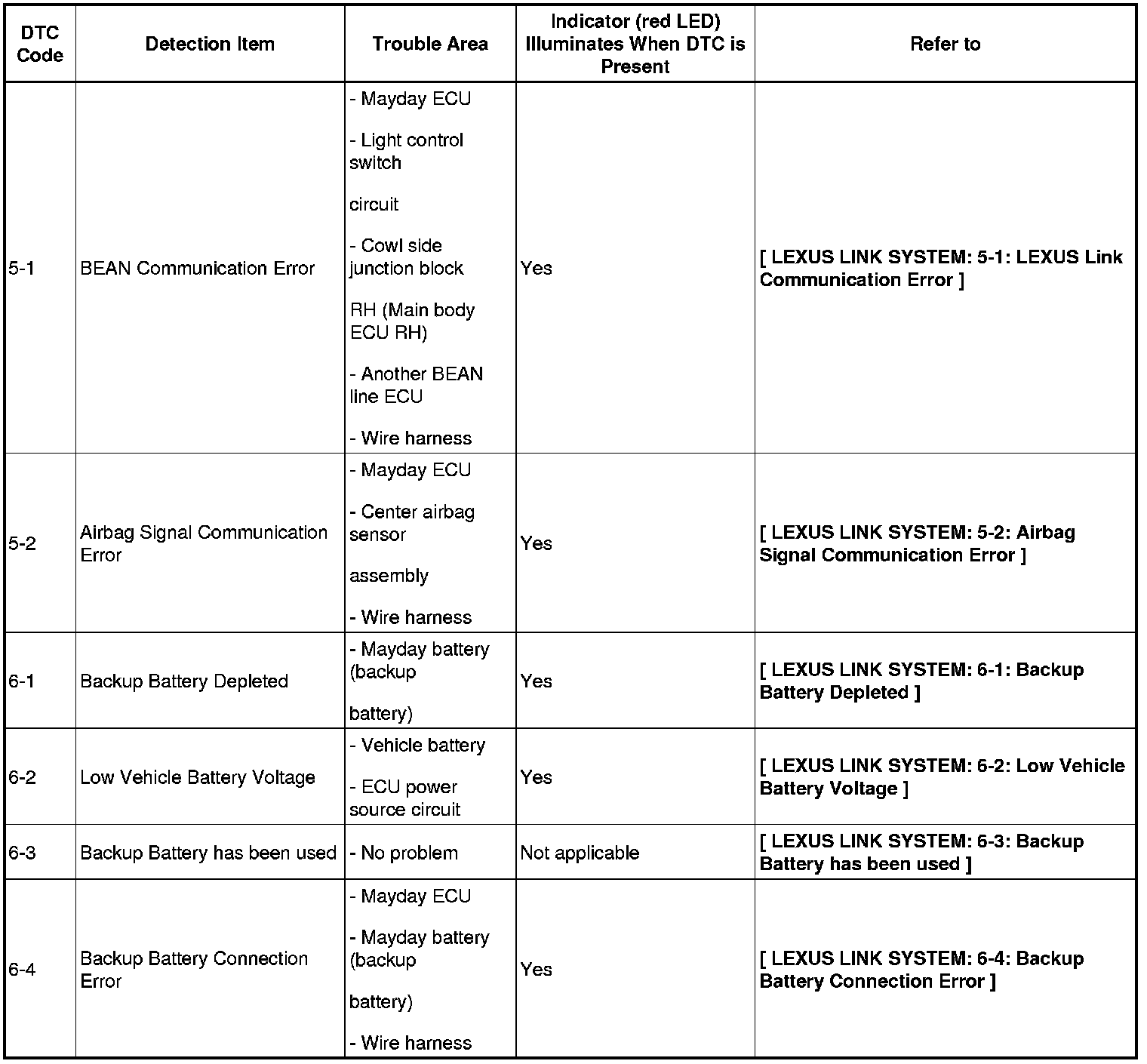

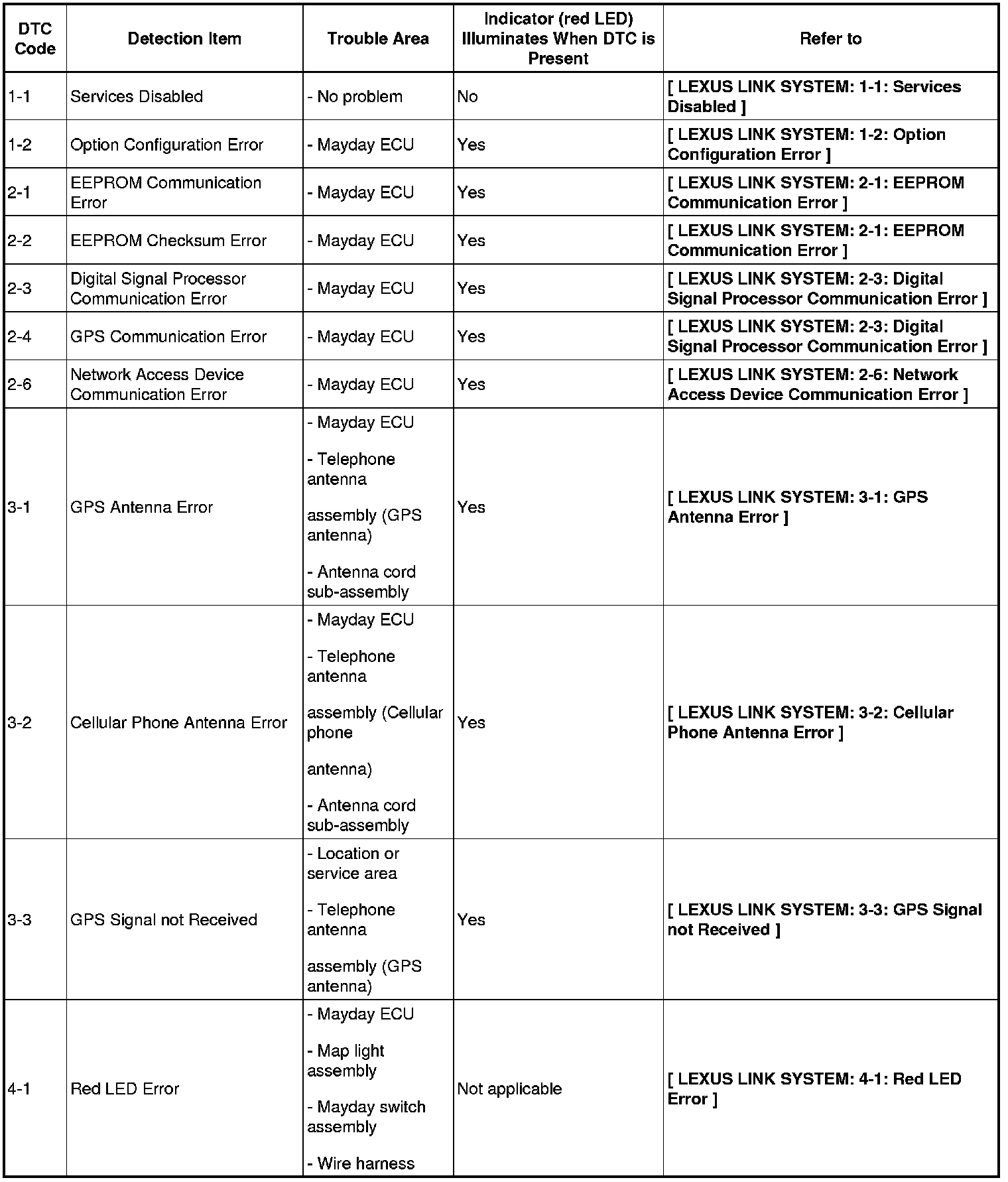

CELLULAR COMMUNICATION: LEXUS LINK SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART
Mayday ECU
DTC 1-1-4-1:
DTC 4-2-4-7:
DTC 5-1-6-4:
