Engine Immobilizer System
ENGINE IMMOBILIZER: ENGINE IMMOBILIZER SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART

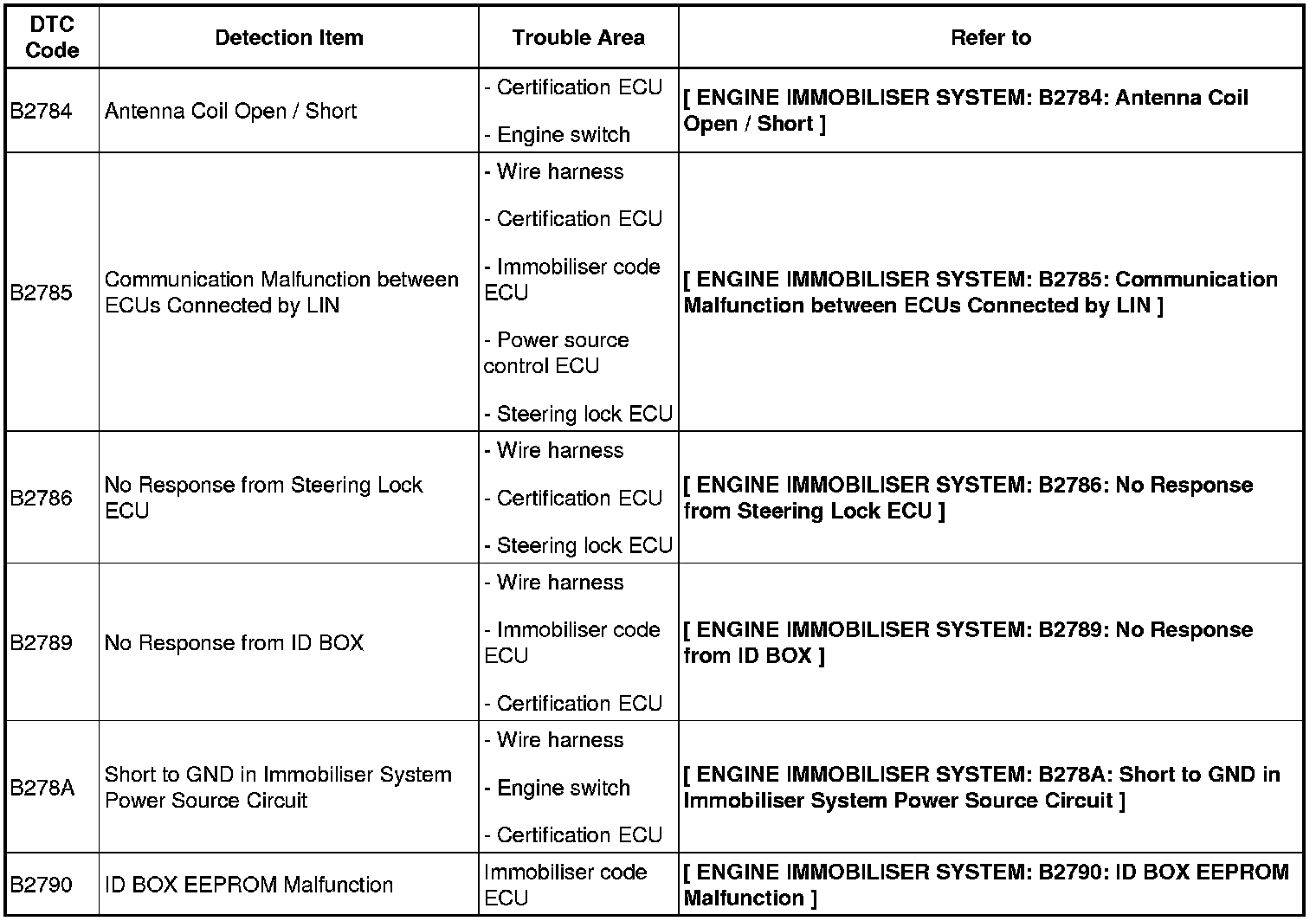

1. CERTIFICATION ECU DTC CHART
Certification ECU:
B2784-B2790:

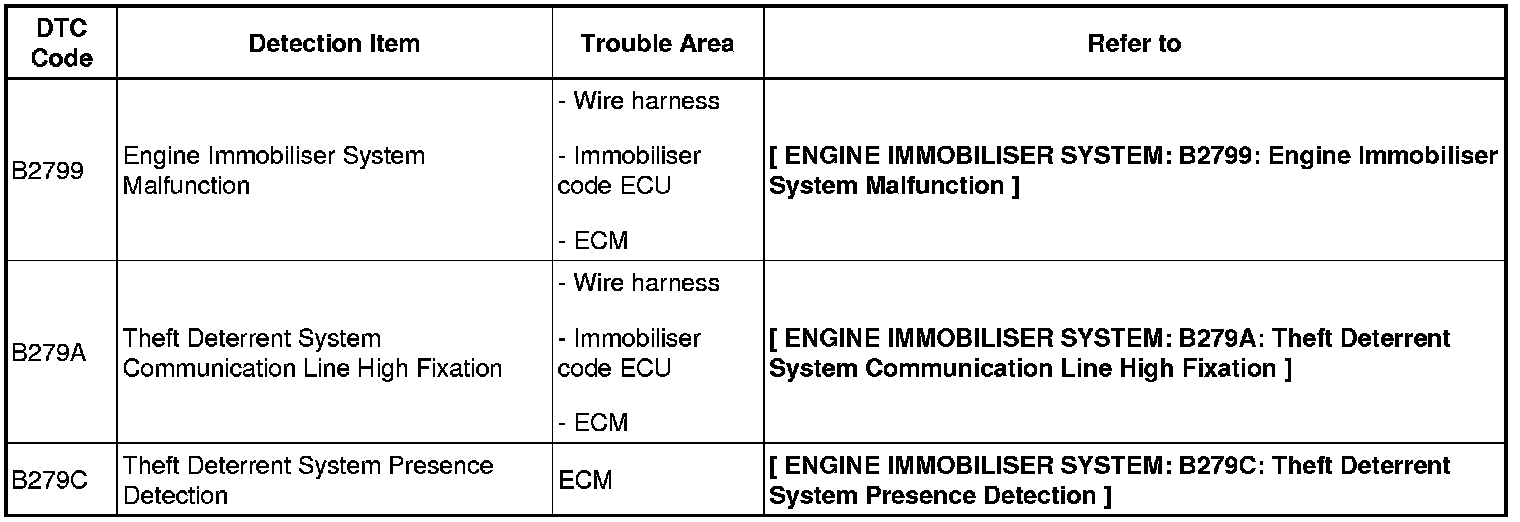

2. ECM DTC CHART
HINT: The DTCs for the immobilizer system are specified above. If other codes are output, check the DTC chart for the engine control system.
ECM:
