Electric Steering Lock
STEERING COLUMN: ELECTRIC STEERING LOCK: DIAGNOSTIC TROUBLE CODE CHART

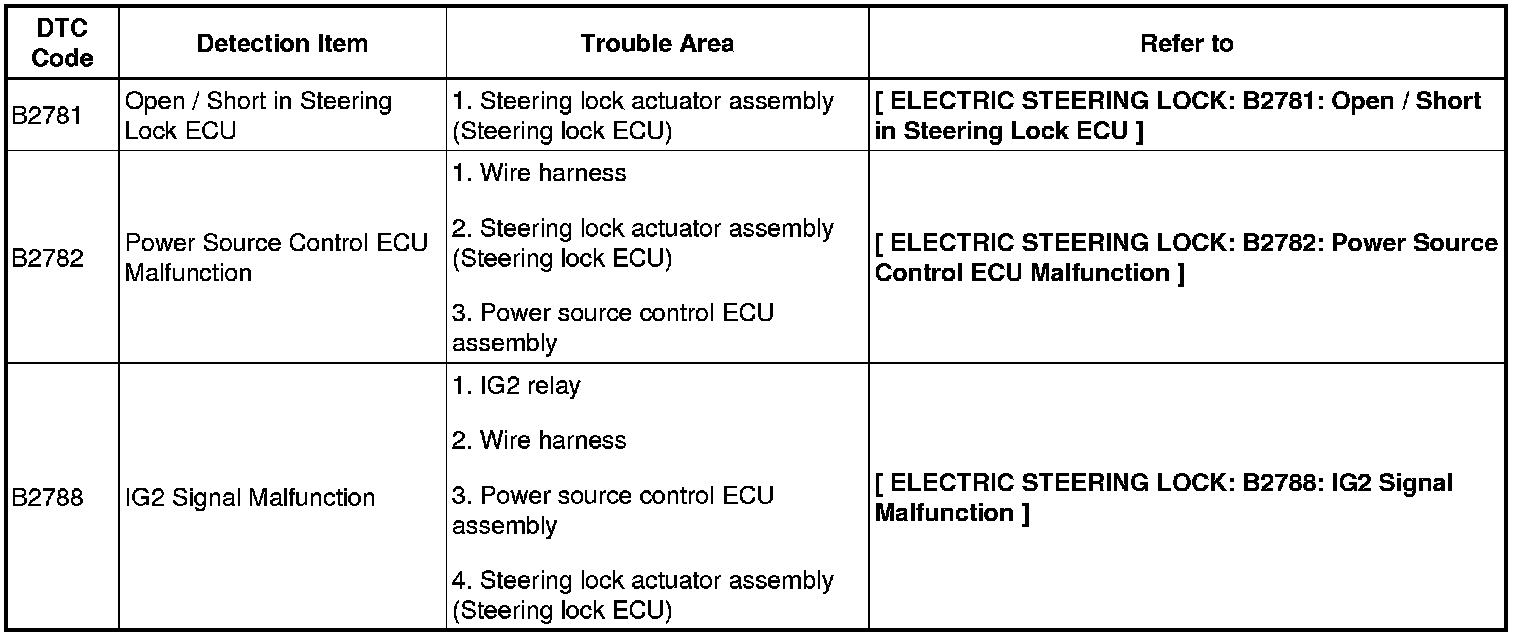

DIAGNOSTIC TROUBLE CODE CHART
If trouble code is displayed during the DTC check, check the parts listed for that code in the table below and proceed to the appropriate page.
HINT: The steering lock ECU does not store DTCs regarding the past problems.
ELECTRIC STEERING LOCK:
