Cruise Control System








CRUISE CONTROL: CRUISE CONTROL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

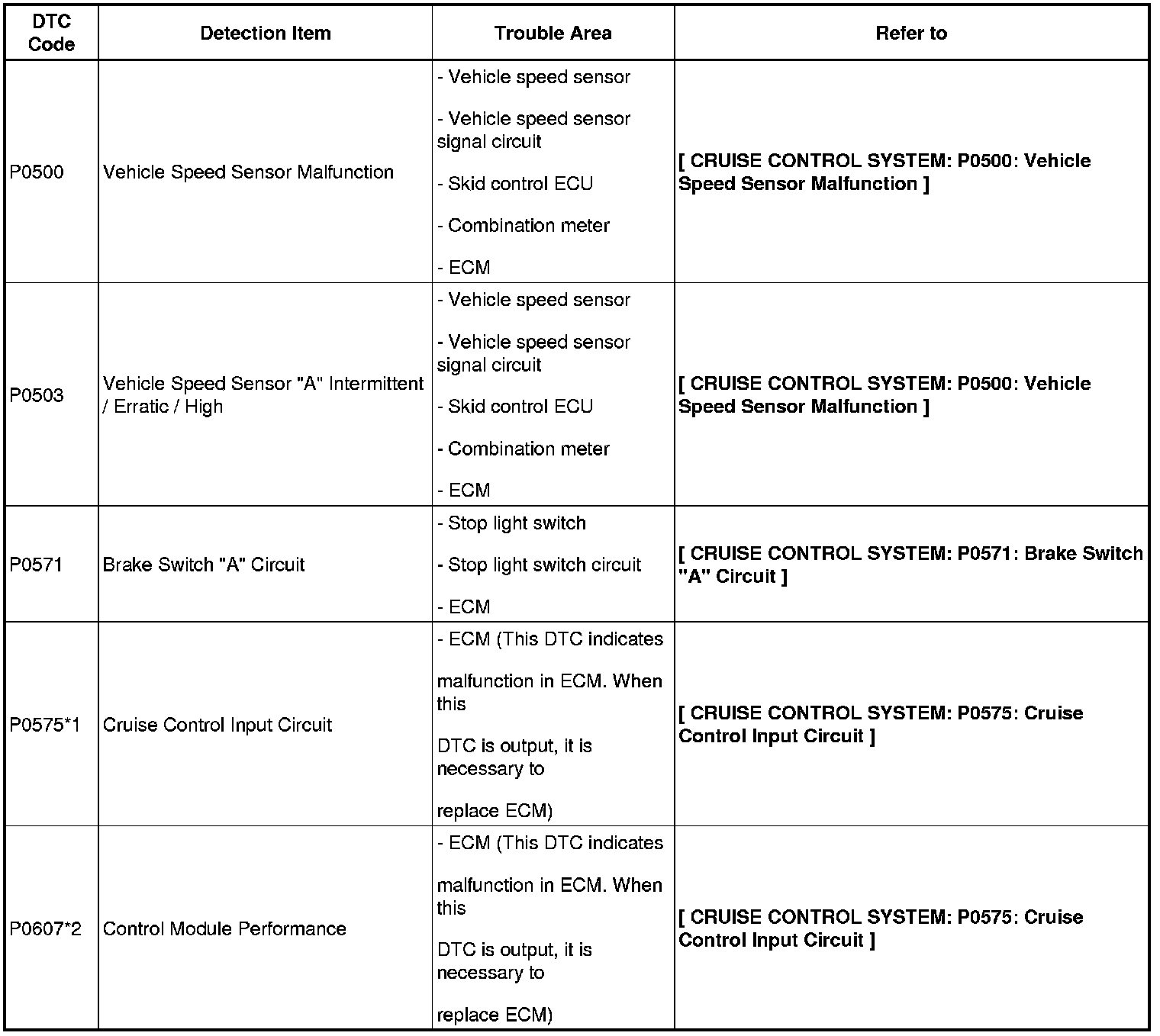

DIAGNOSTIC TROUBLE CODE CHART

If a trouble code is displayed during the DTC check, check the circuit listed for that code in the table below and proceed to the appropriate page.

Cruise Control System

P0500-P0607:





*1: for 1UR-FSE
*2: for 2GR-FSE
