AIR CONDITIONING: AIR CONDITIONING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART

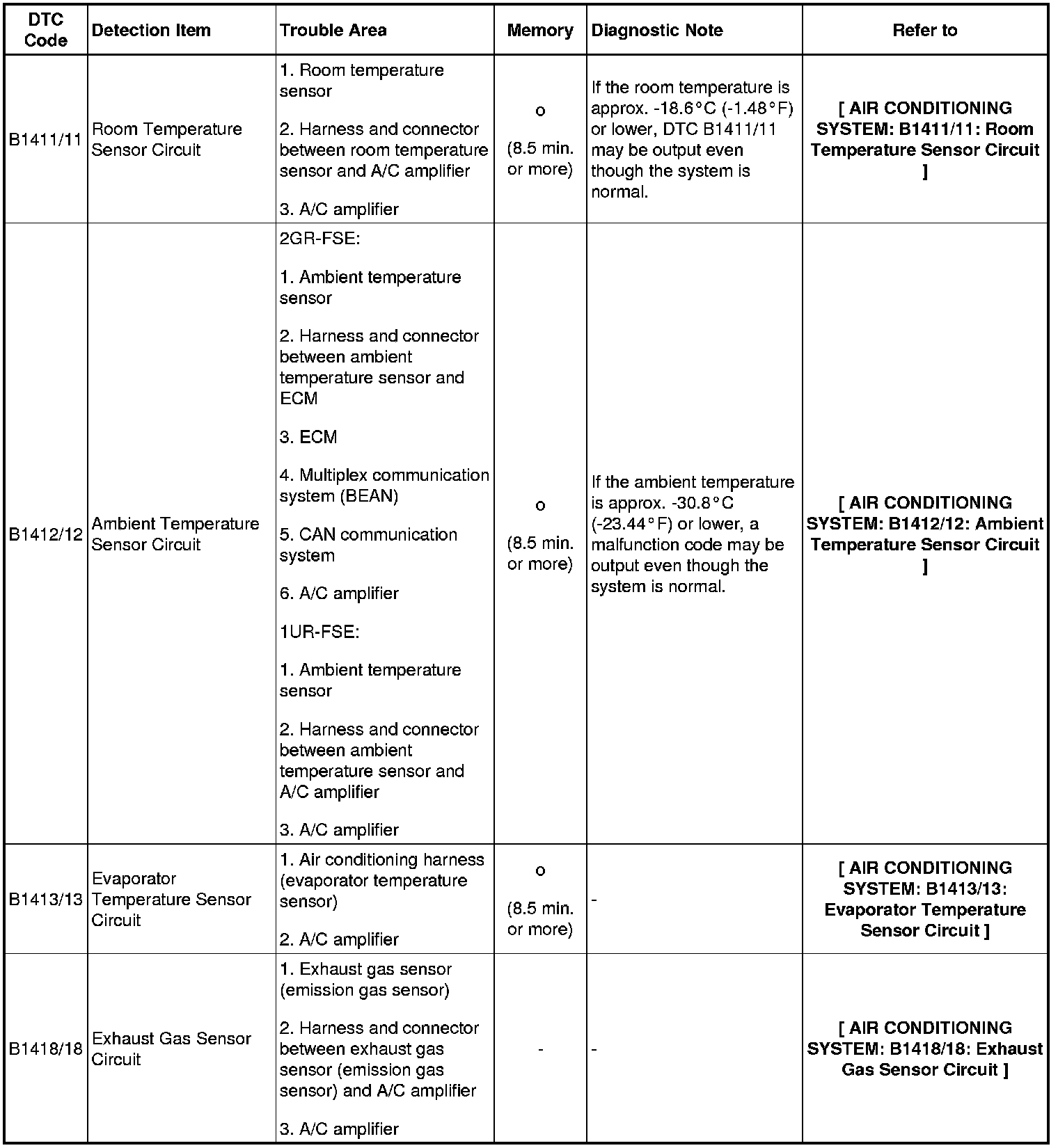

B1411/11-B1418/18:

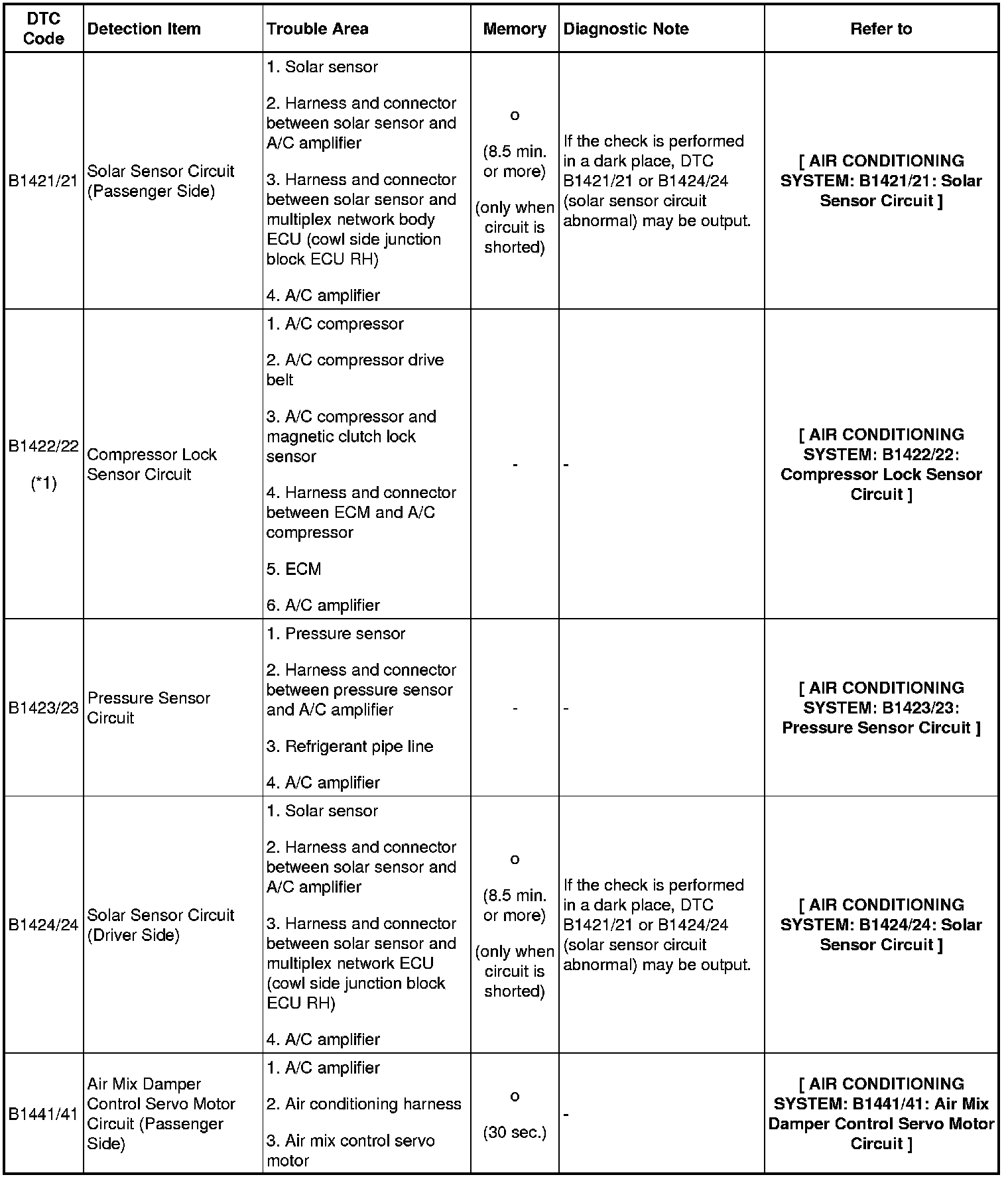

B1421/21-B1441/41:

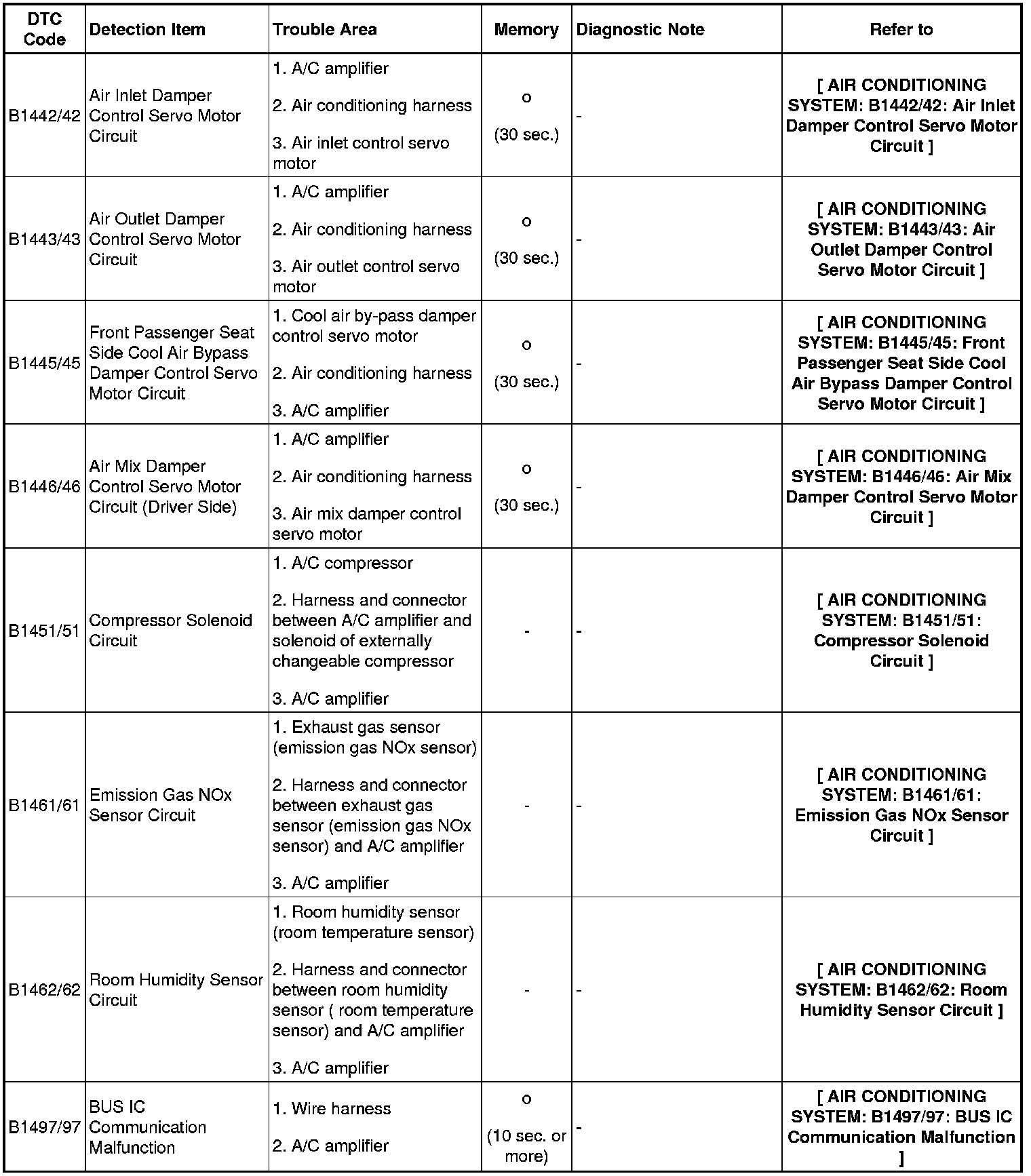

B1442/42-B1497/97:
*1: for 2GR-FSE
