Adaptive Variable Suspension System
SUSPENSION CONTROL: ADAPTIVE VARIABLE SUSPENSION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

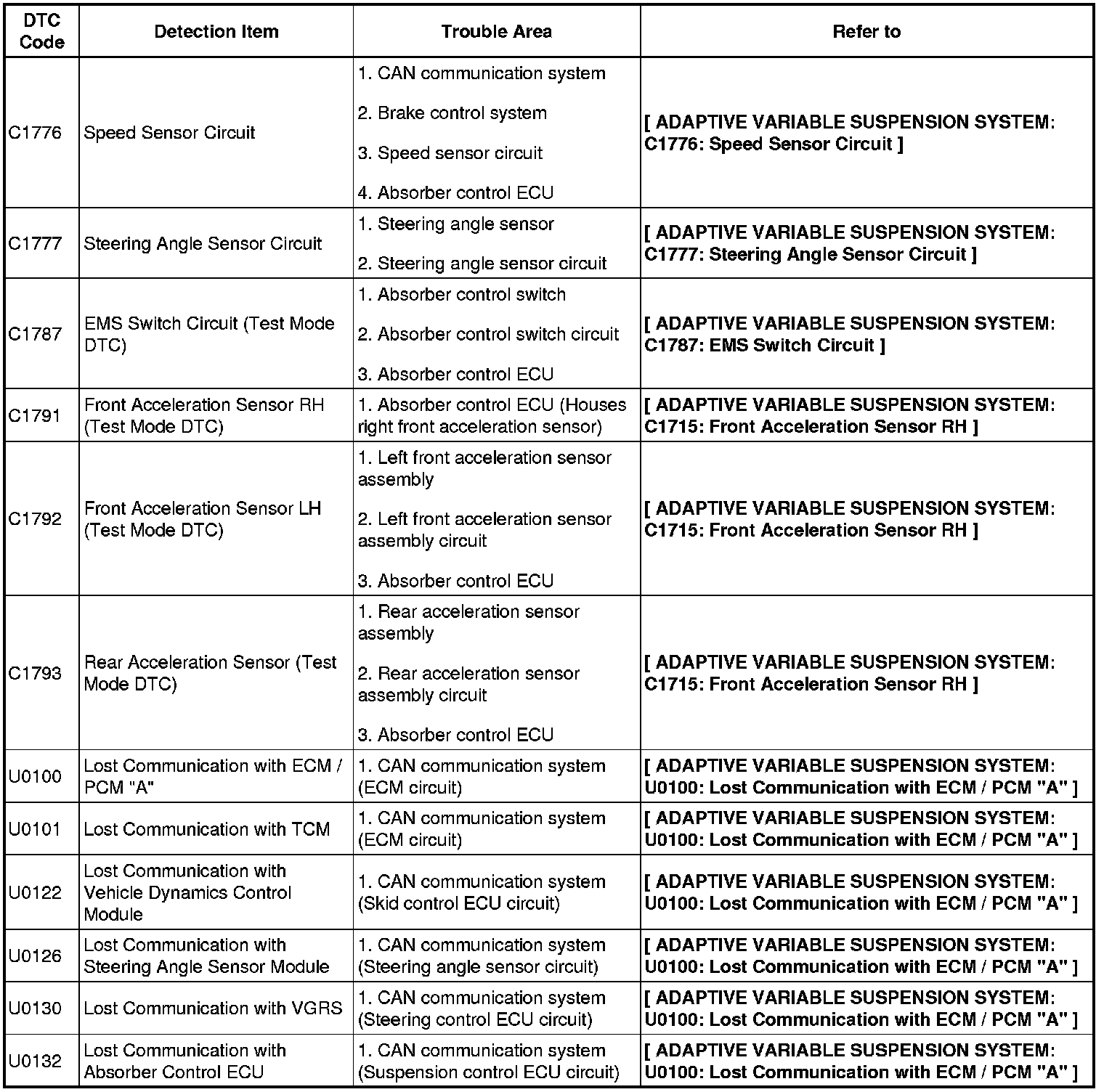

DIAGNOSTIC TROUBLE CODE CHART
HINT:
- If a trouble code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, turn to the page for the respective DTC No. in the DTC chart.
- Inspect the fuse and relay before investigating the trouble areas as shown in the table below.
ADAPTIVE VARIABLE SUSPENSION SYSTEM
