Active Stabilizer Suspension System

SUSPENSION CONTROL: ACTIVE STABILIZER SUSPENSION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a malfunction code is displayed during the DTC check, inspect the circuit relevant to that code. For details of each code, refer to the page listed under "See page" in the table below.

Active stabilizer suspension system

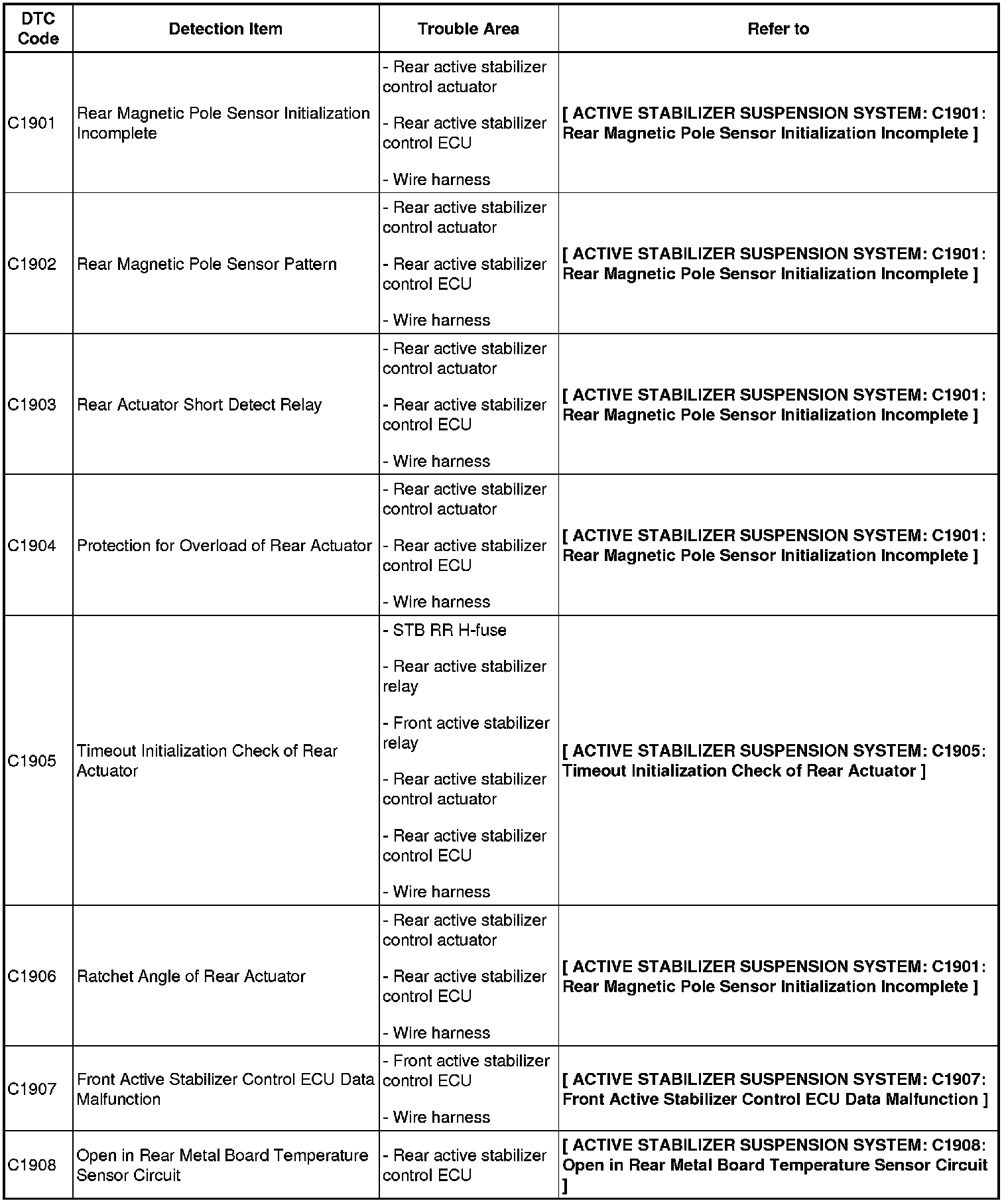

C1901-C1908:

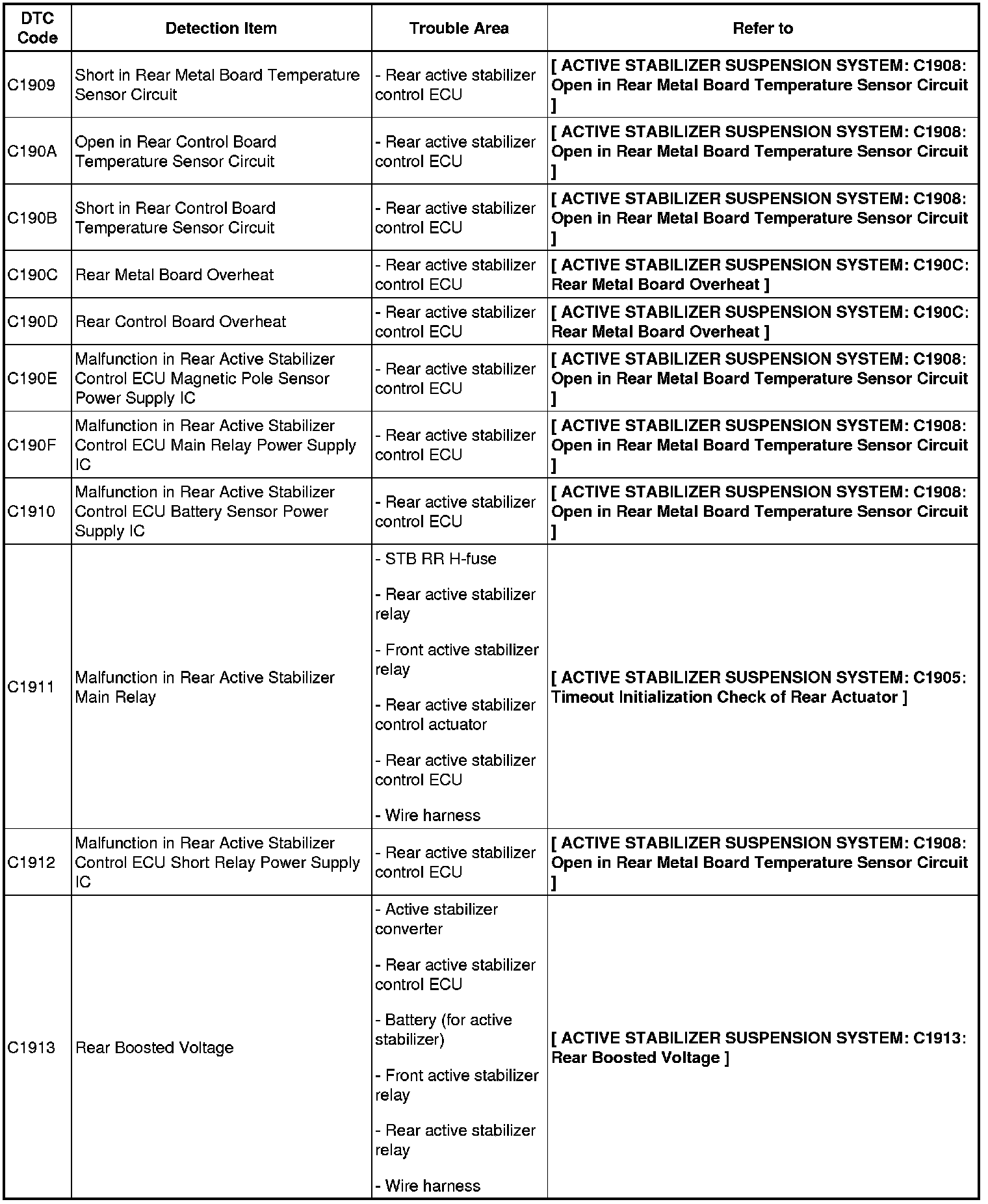

C1909-C1913:

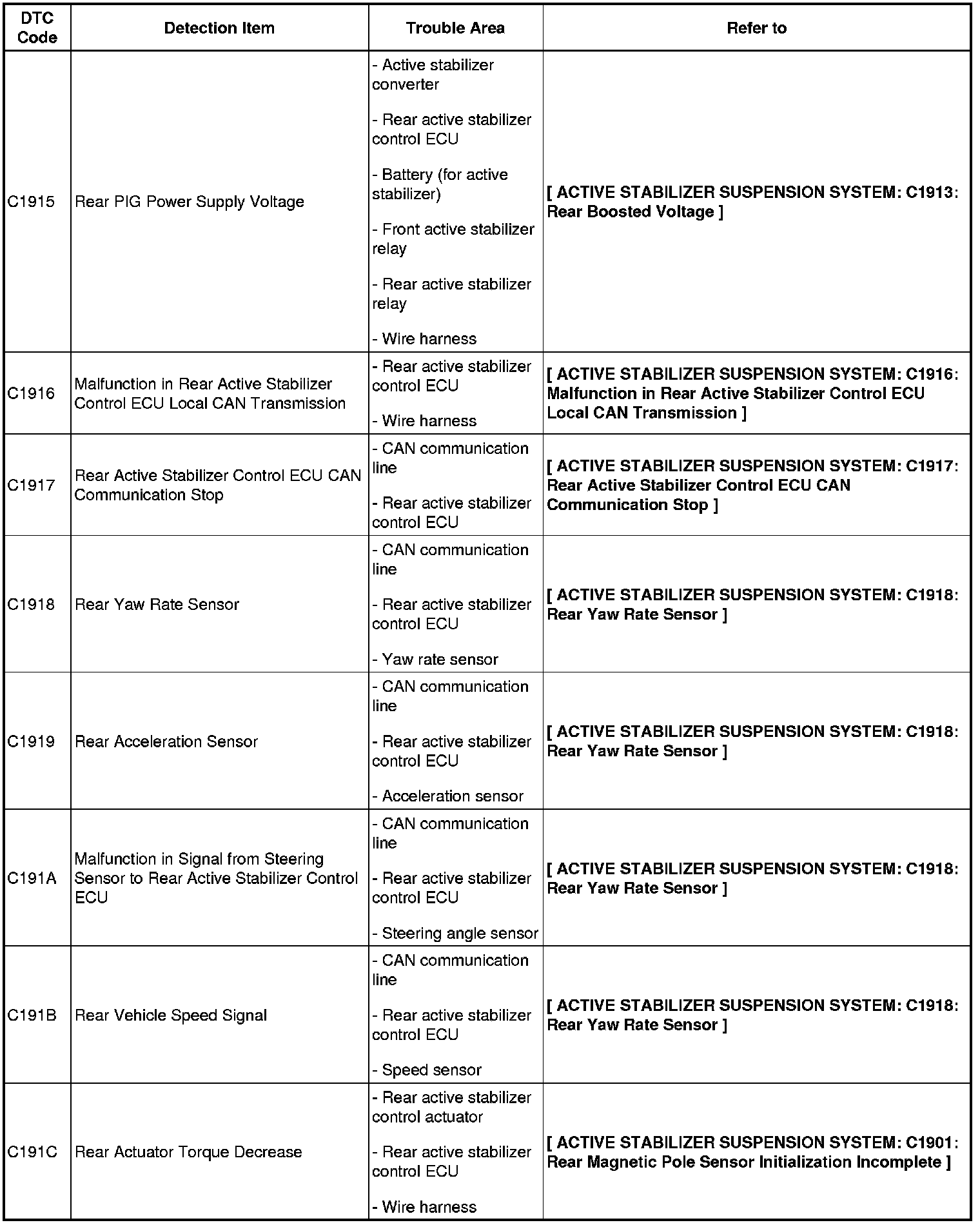

C1915-C191C:

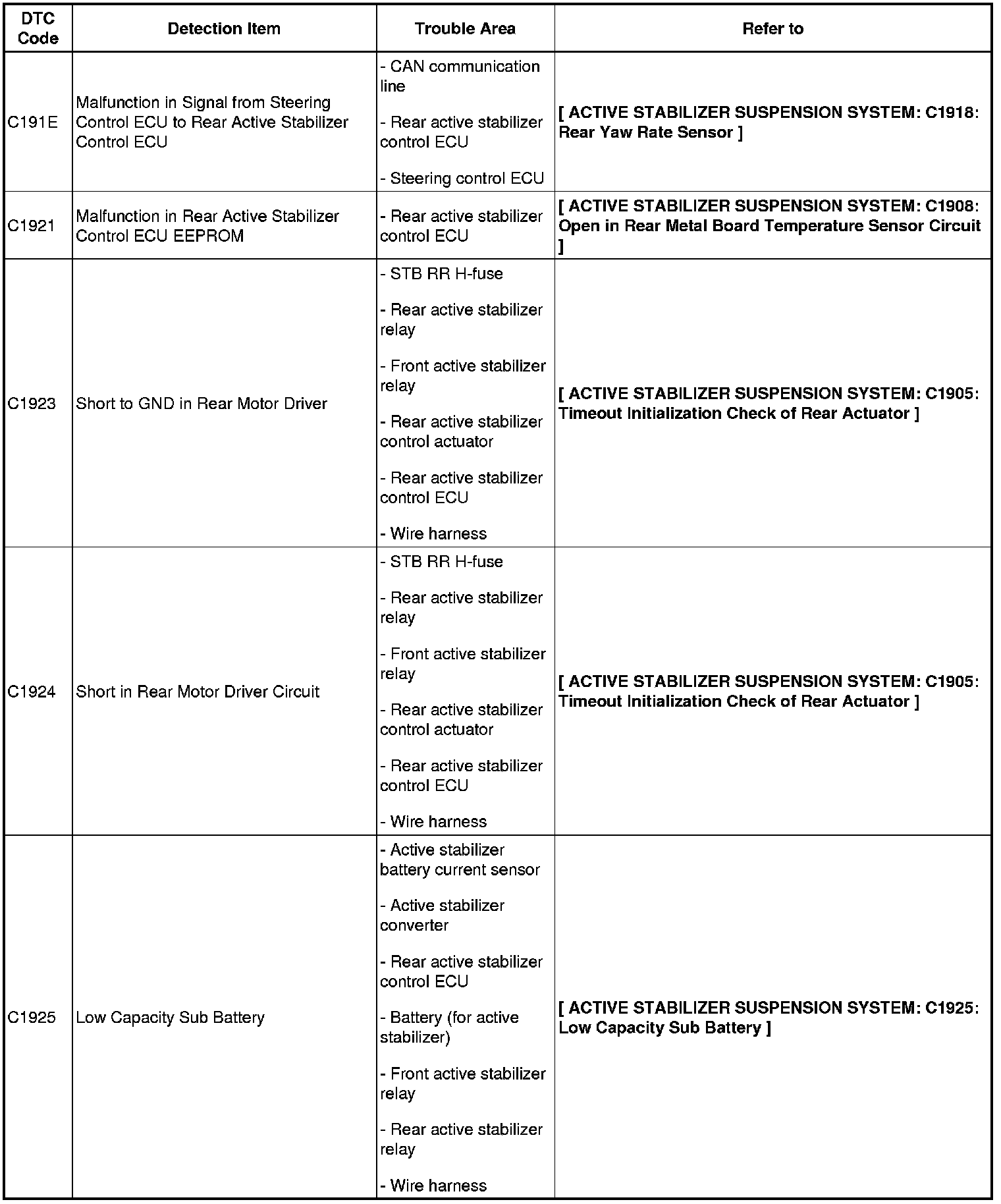

C191E-C1925:

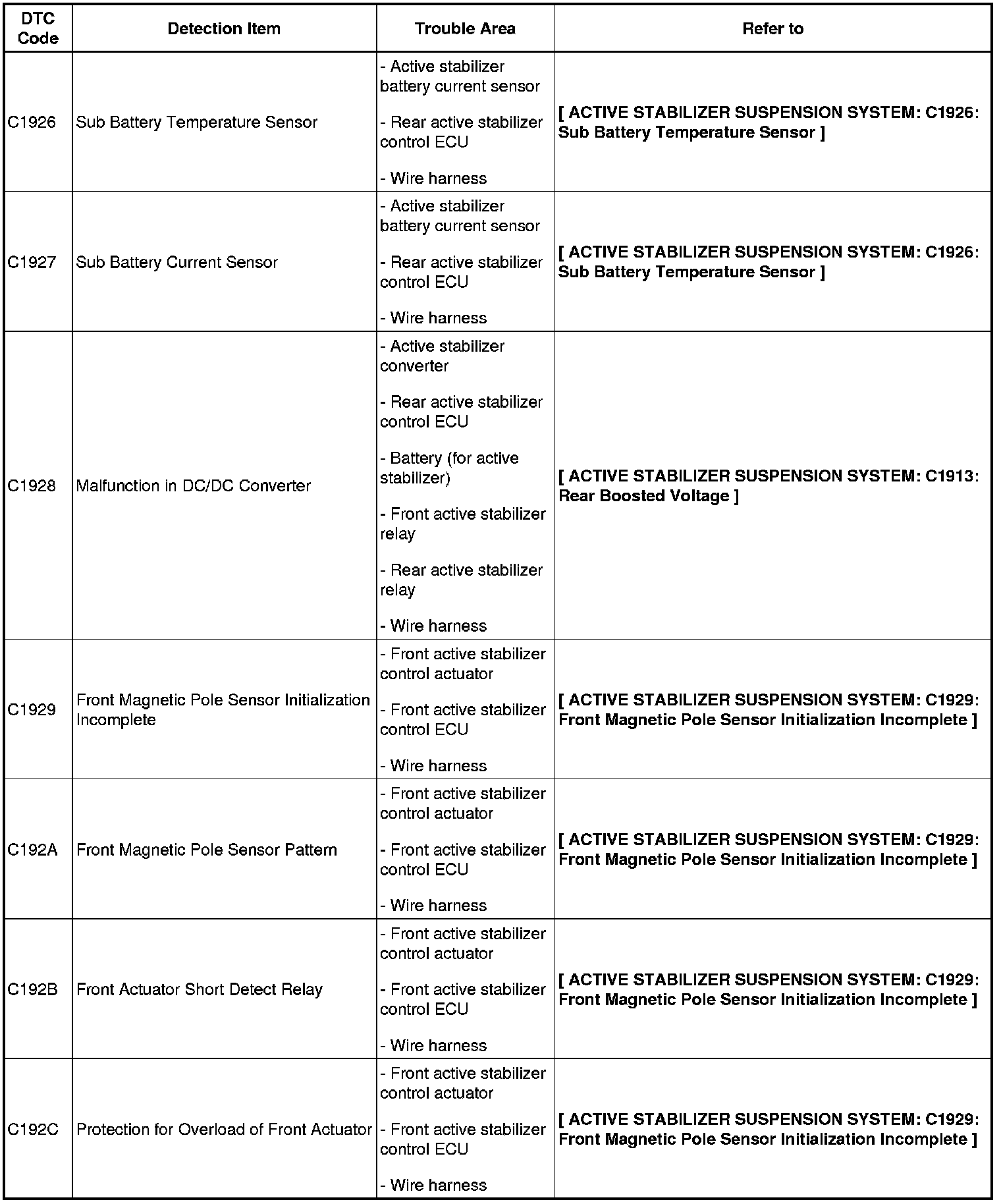

C1926-C192C:

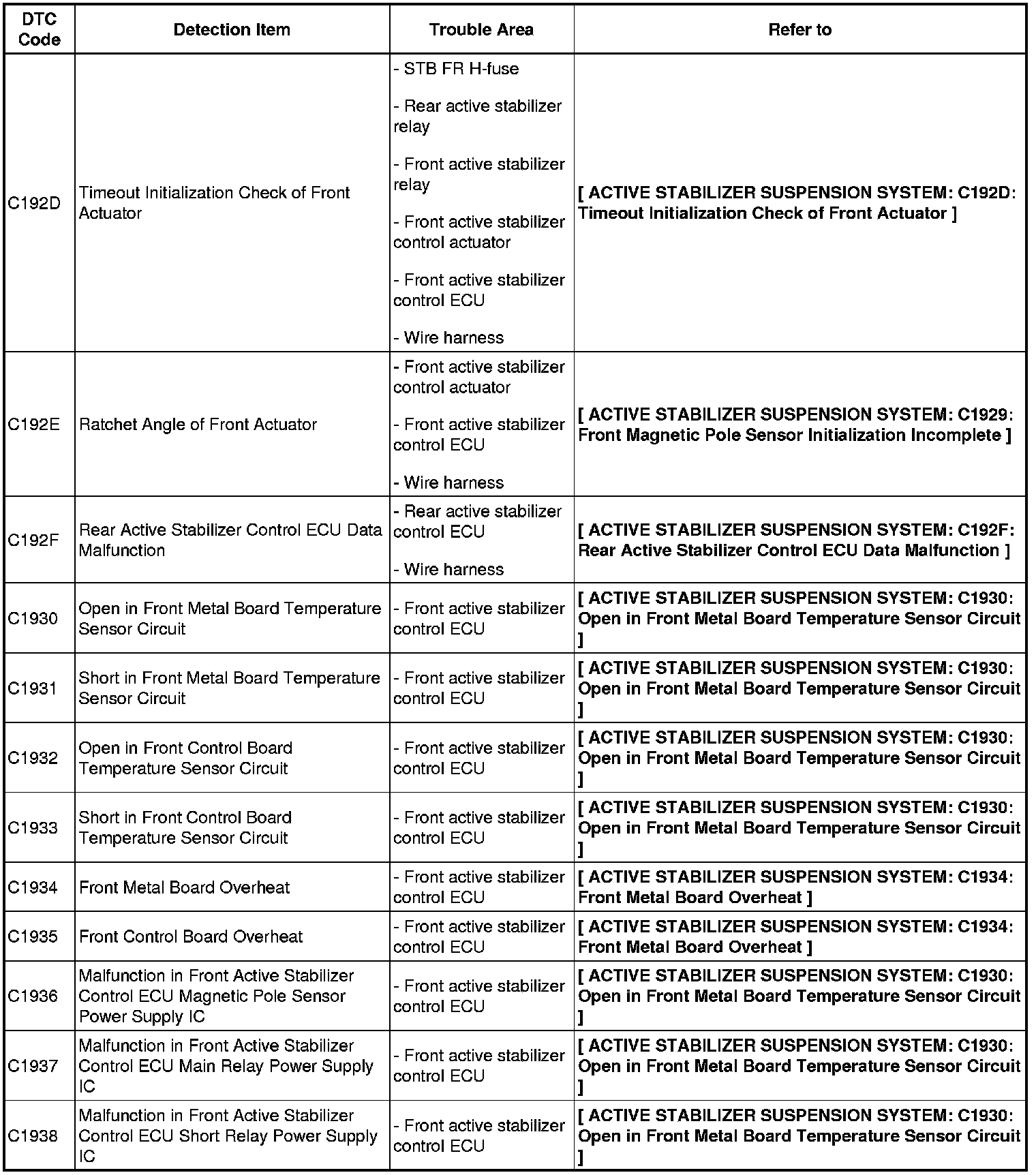

C192D-C1938:

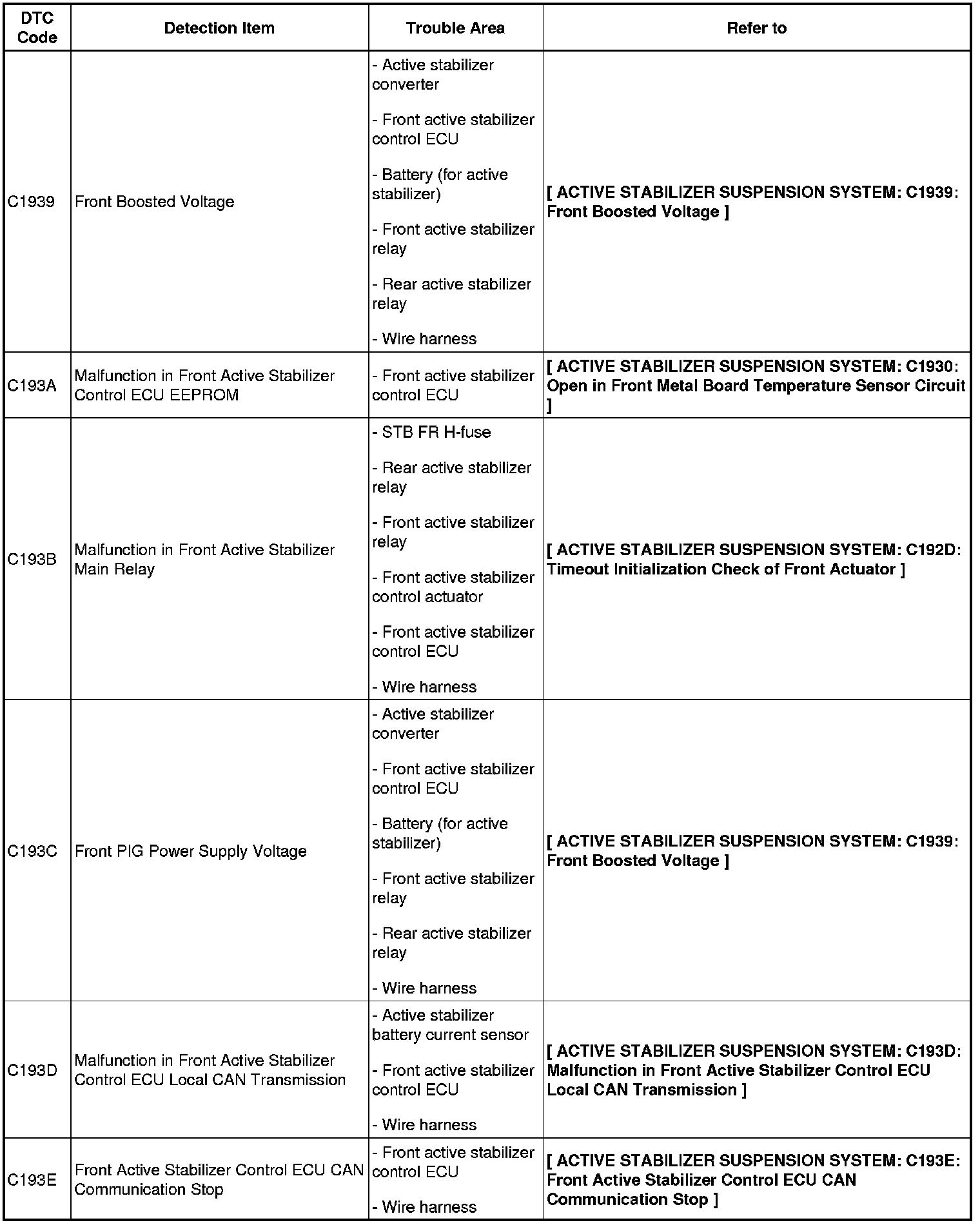

C1939-C193E:

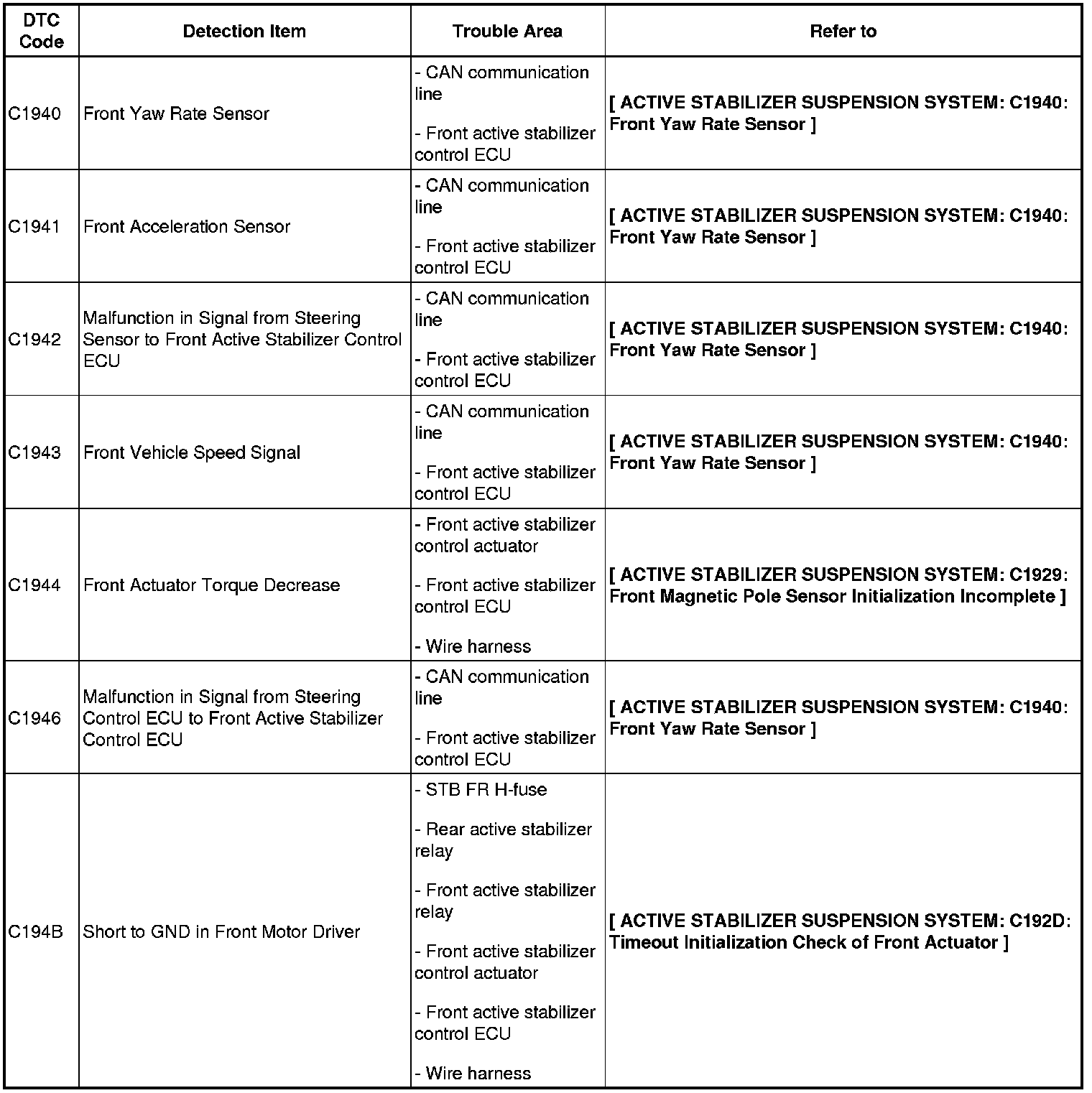

C1940-C194B:

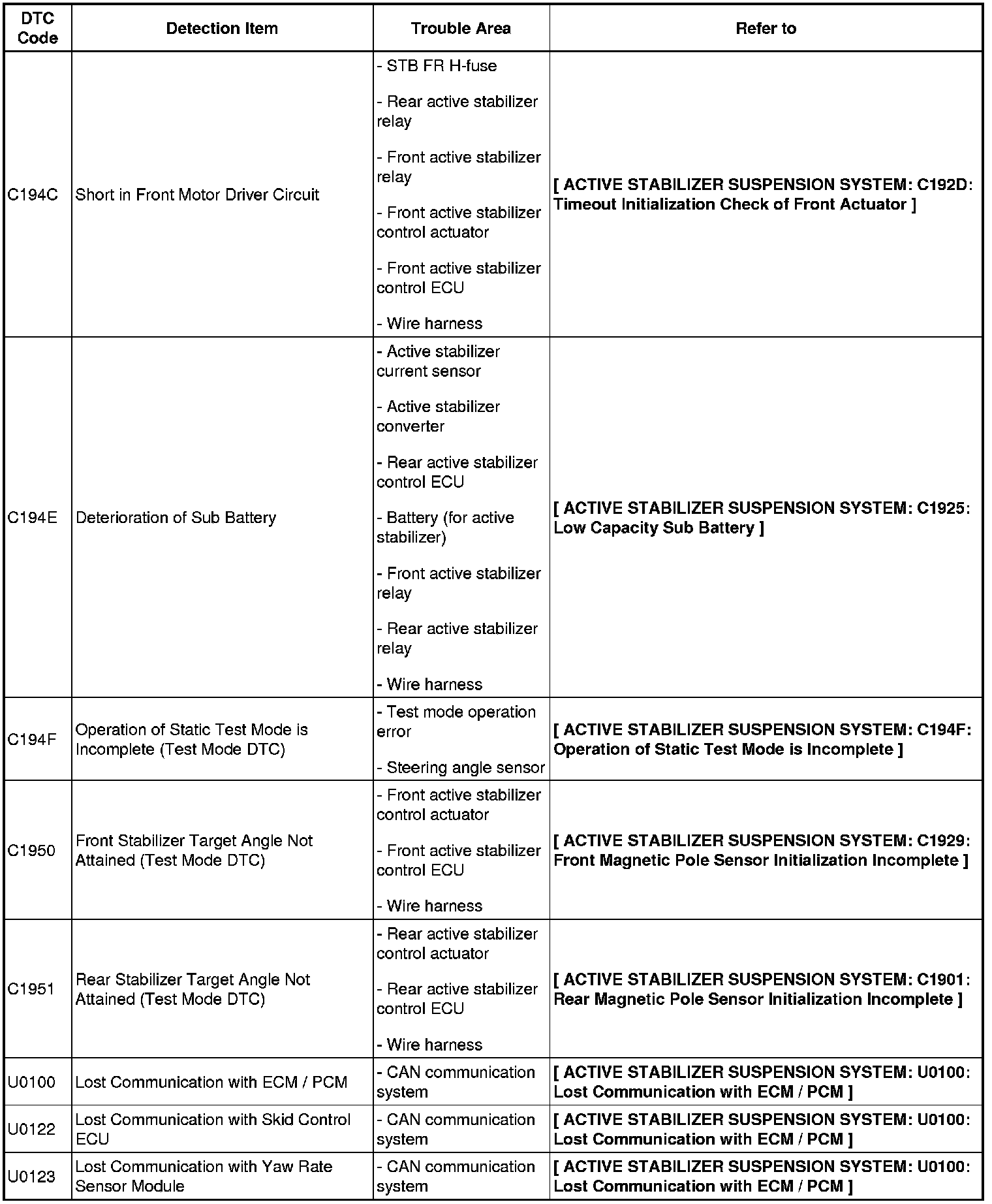

C194C-C1951 U0100-U0123:

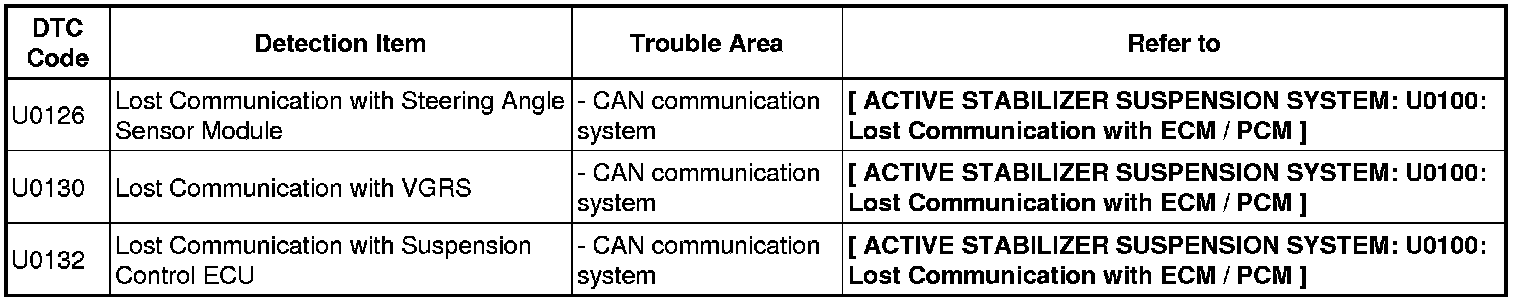

U0126-U0132:
