B2799

ENGINE IMMOBILIZER: ENGINE IMMOBILIZER SYSTEM: B2799: Engine Immobilizer System Malfunction

DTC B2799 - Engine Immobilizer System Malfunction

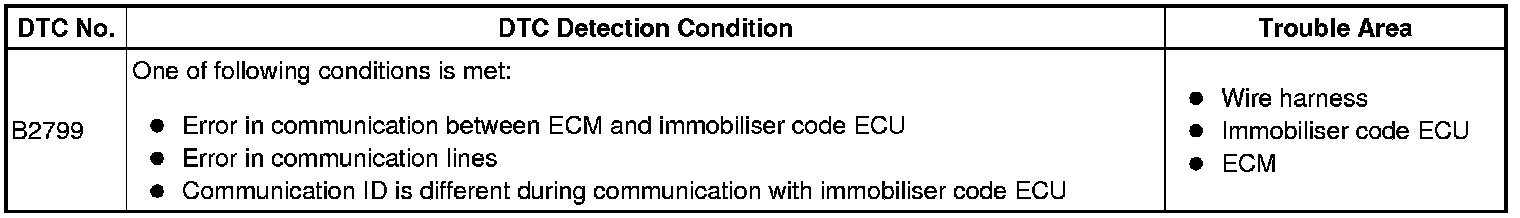

DESCRIPTION

This DTC is output when one of the following occurs: 1) the ECM detected errors in its own communications with the immobilizer code ECU; 2) the ECM detects errors in the communication lines; or 3) the ECU communication ID between the immobilizer code ECU and ECM is different and an engine start is attempted. Before troubleshooting for this DTC, make sure no certification ECU DTCs are present. If present, troubleshoot the certification ECU DTCs first.

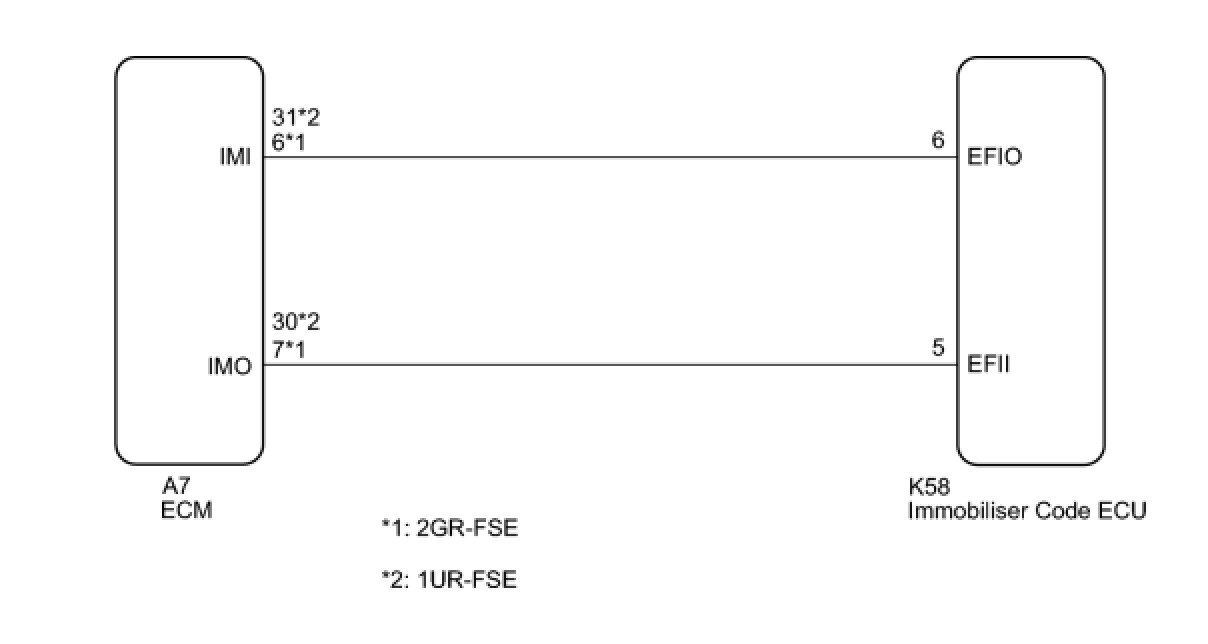

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT
(a) Delete the DTC Engine Immobilizer System.
(b) Recheck for DTC.
OK:
B2799 output does not reoccur
NG -- ECU COMMUNICATION ID REGISTRATION
OK -- USE SIMULATION METHOD TO CHECK
2. ECU COMMUNICATION ID REGISTRATION
(a) Re-register the ECU communication ID between the immobilizer code ECU and ECM Engine Immobilizer System.
NEXT -- Continue to next step.

3. CHECK DTC OUTPUT
(a) Delete the DTC Engine Immobilizer System.
(b) Recheck for DTC.
OK:
B2799 output does not reoccur
NG -- CHECK CONNECTION OF CONNECTOR
OK -- END
4. CHECK CONNECTION OF CONNECTOR
(a) Turn the engine switch off.
(b) Check that the connectors are properly connected to the ECM and the immobilizer code ECU
OK:
Connectors are properly connected.
NG -- CONNECT CONNECTORS PROPERLY
OK -- Continue to next step.

5. CHECK HARNESS AND CONNECTOR (IMMOBILIZER CODE ECU - ECM)

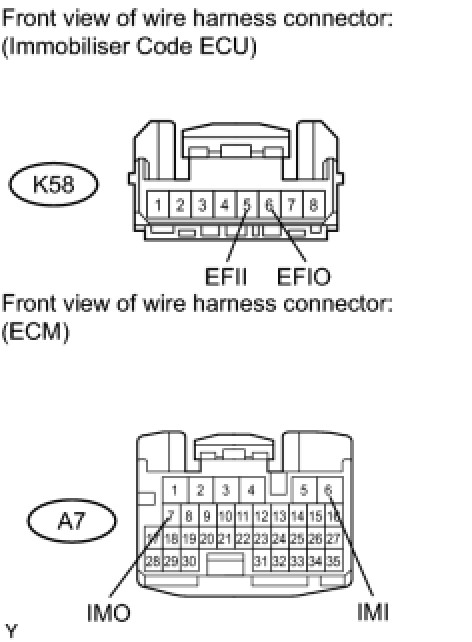

(a) for 2GR-FSE:





(1) Disconnect the K58 ECU and A7 ECM connectors.
(2) Measure the resistance according to the value(s) in the table below.

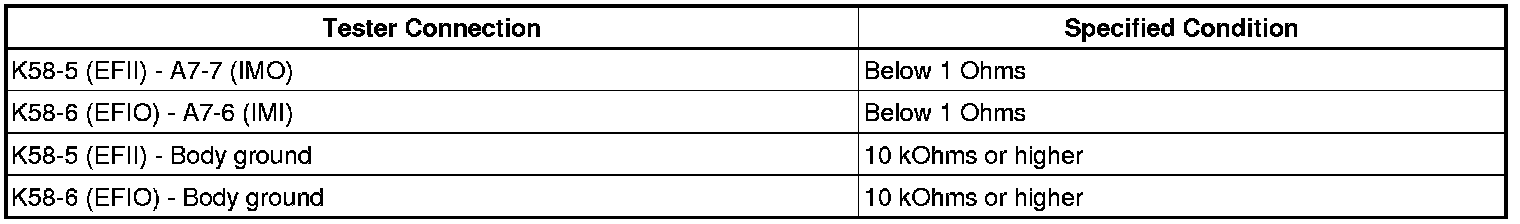

Standard resistance:

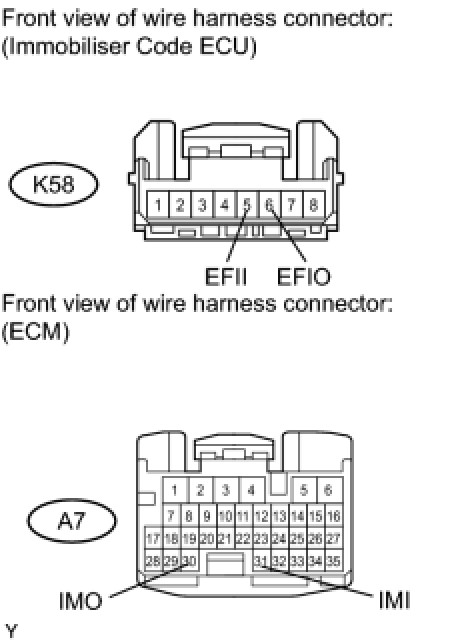

(b) for 1UR-FSE:





(1) Disconnect the K58 ECU and A7 ECM connectors.
(2) Measure the resistance according to the value(s) in the table below.

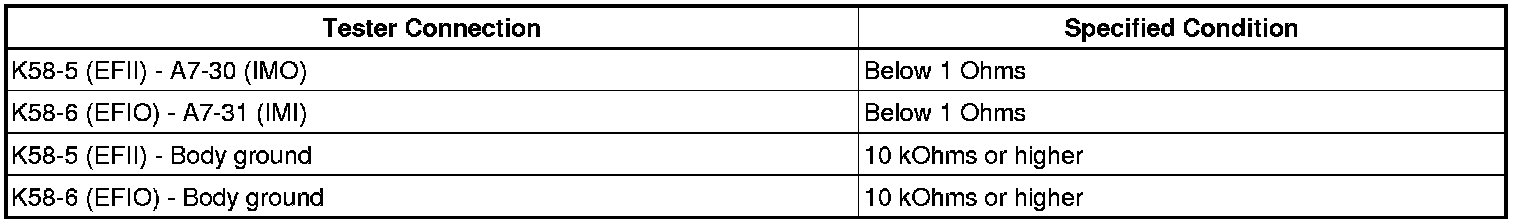

Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

6. REPLACE ECM
(a) Replace the ECM Removalfor 2GR-FSE, Removal for 1UR-FSE).
NEXT -- Continue to next step.

7. ECU COMMUNICATION ID REGISTRATION
(a) Register the ECU communication ID between the immobilizer code ECU and ECM Engine Immobilizer System.
NEXT -- Continue to next step.

8. CHECK DTC OUTPUT
(a) Delete the DTC Engine Immobilizer System.
(b) Recheck for DTC.
OK:
B2799 output does not reoccur
NG -- REPLACE IMMOBILIZER CODE ECU
OK -- END
