B2235

PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: B2235: Front Right Sensor Malfunction

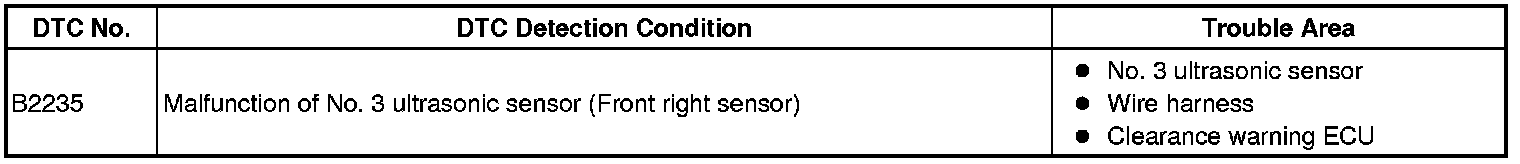

DTC B2235 - Front Right Sensor Malfunction

DESCRIPTION

The No. 3 ultrasonic sensor (front right sensor) is installed on the front bumper.
The clearance warning ECU detects obstacles based on signals received from the front right sensor. If the front right sensor's circuit has an open, short or other malfunction, it will not function normally.

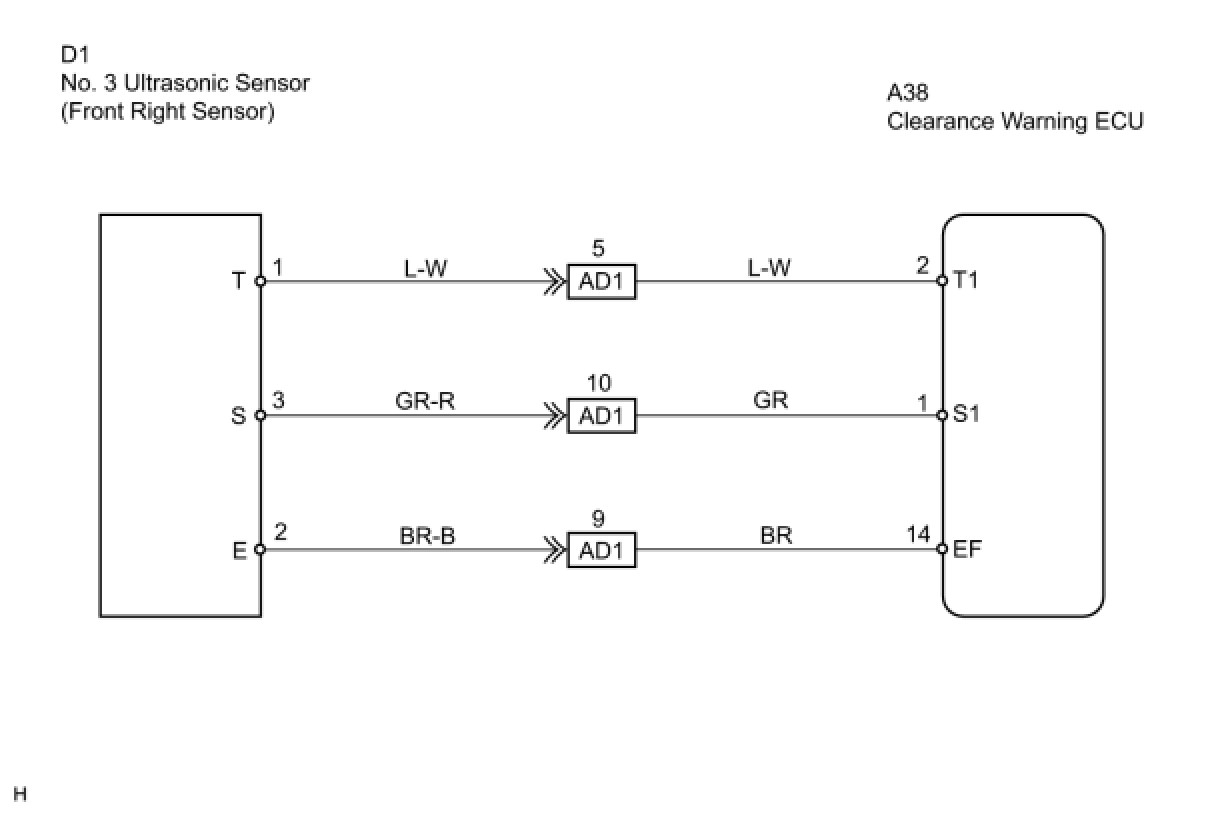

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT NO. 3 ULTRASONIC SENSOR




(a) Remove the No. 3 ultrasonic sensor.

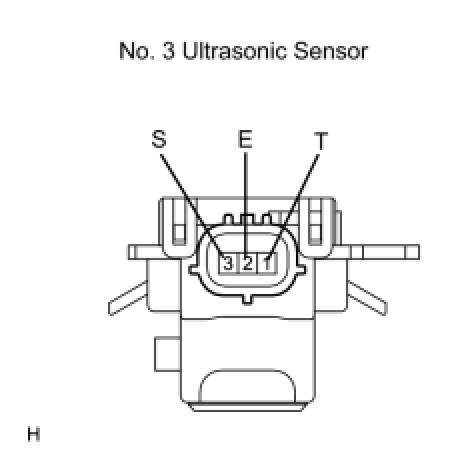

(b) Measure the resistance of the sensor.

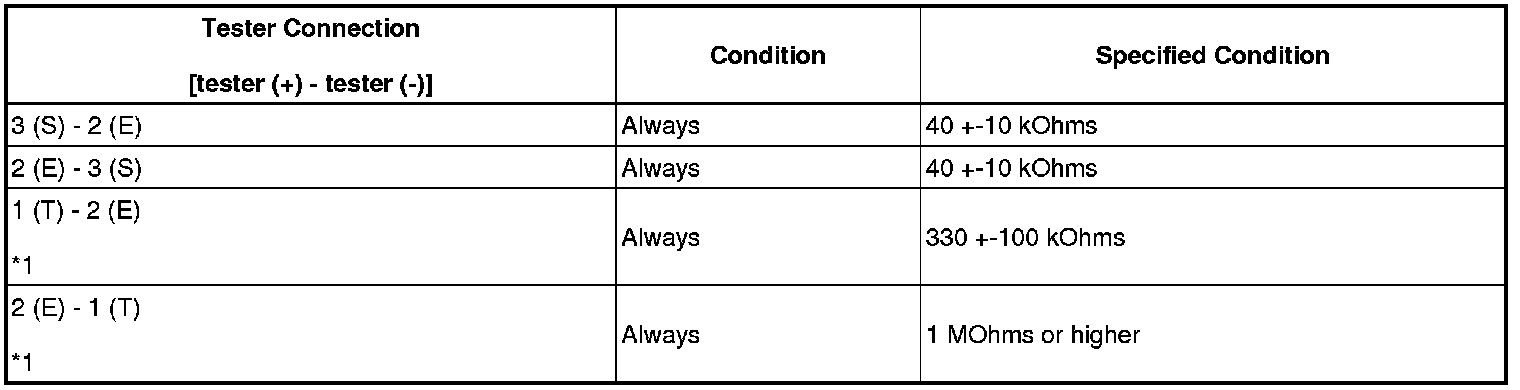

Standard resistance:





NOTICE:
- Set the tester to the 100 kOhms range before performing the measurement.
- *1: Measurement values may vary depending on the tester used. If results seem inaccurate, reverse the polarity (+-) and measure again.

NG -- REPLACE NO. 3 ULTRASONIC SENSOR (FRONT RIGHT SENSOR)
OK -- Continue to next step.

2. CHECK WIRE HARNESS (CLEARANCE WARNING ECU - NO. 3 ULTRASONIC SENSOR)
(a) Disconnect the A38 ECU connector.




(b) Disconnect the D1 sensor connector.

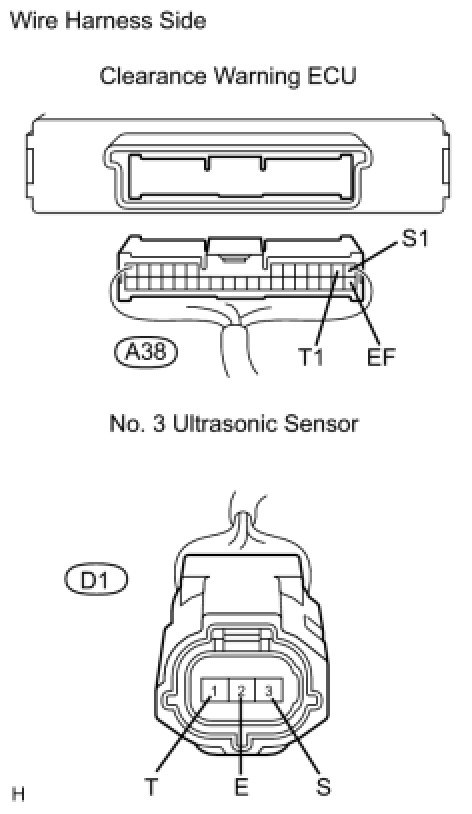

(c) Measure the resistance of the wire harness side connectors.

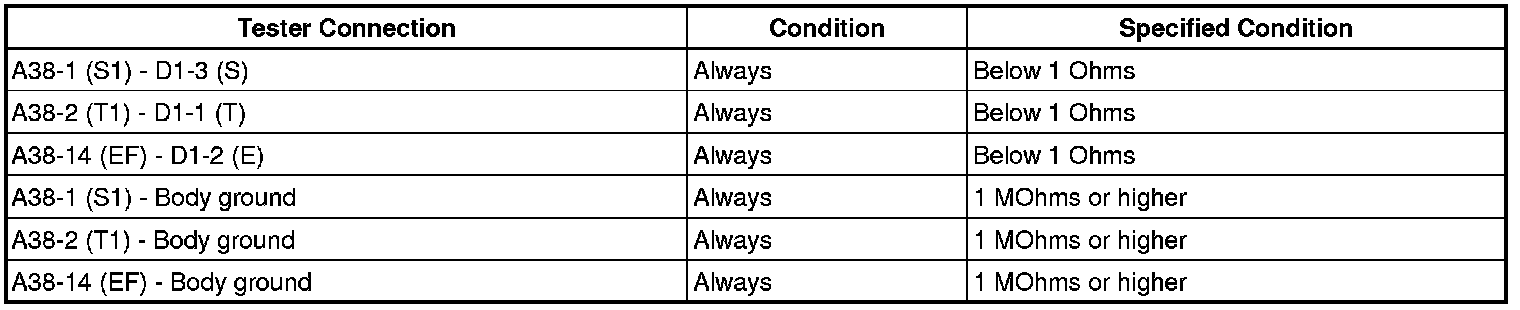

Standard resistance:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- REPLACE CLEARANCE WARNING ECU
