Propeller Shaft








SERVICE SPECIFICATIONS: PROPELLER SHAFT: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

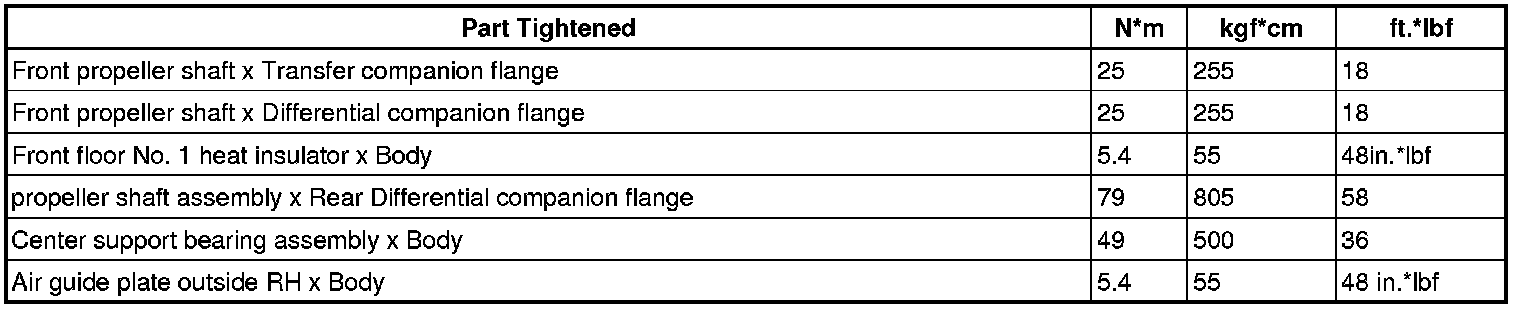

for 4WD

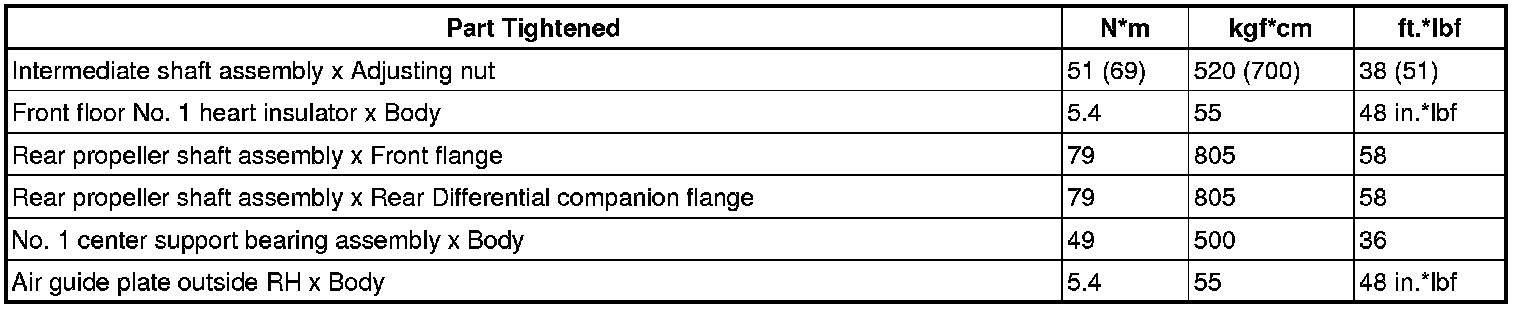

for 2WD





( ) For use without SST
