Home >> Lexus >> 2009 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Axle Shaft Assembly >> Service and Repair >> Removal and Replacement >> Front Drive Shaft Assembly >> Components

Components

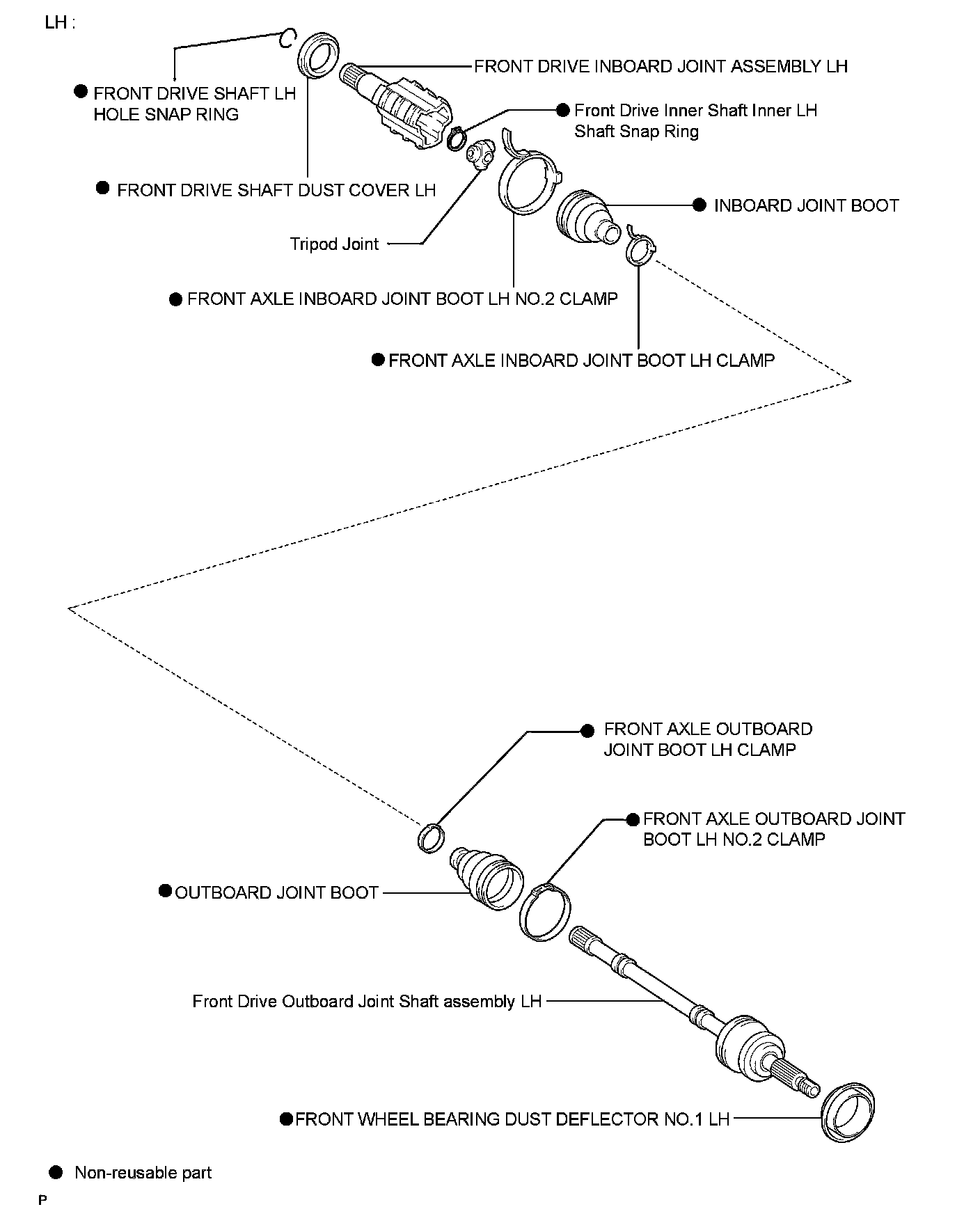

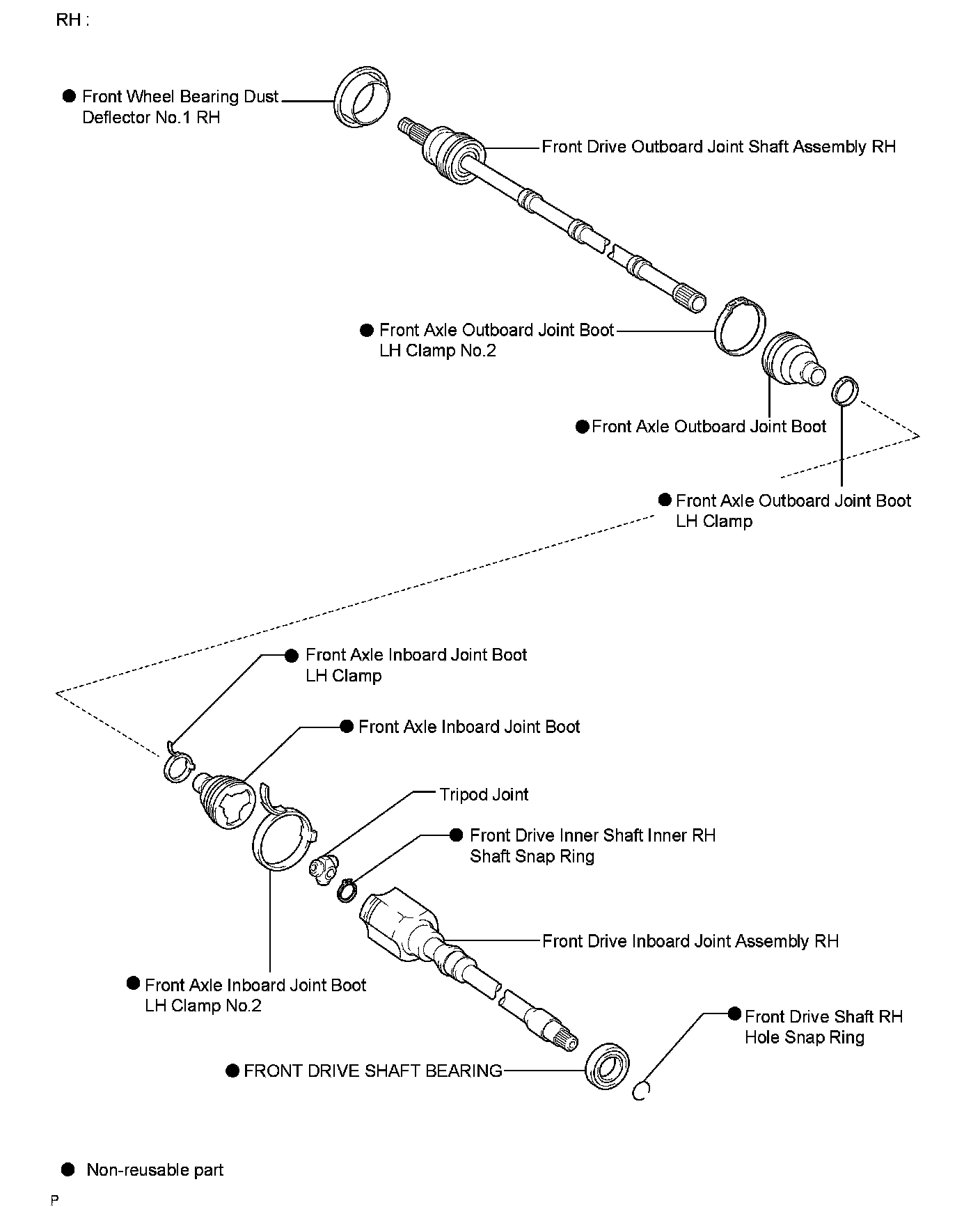

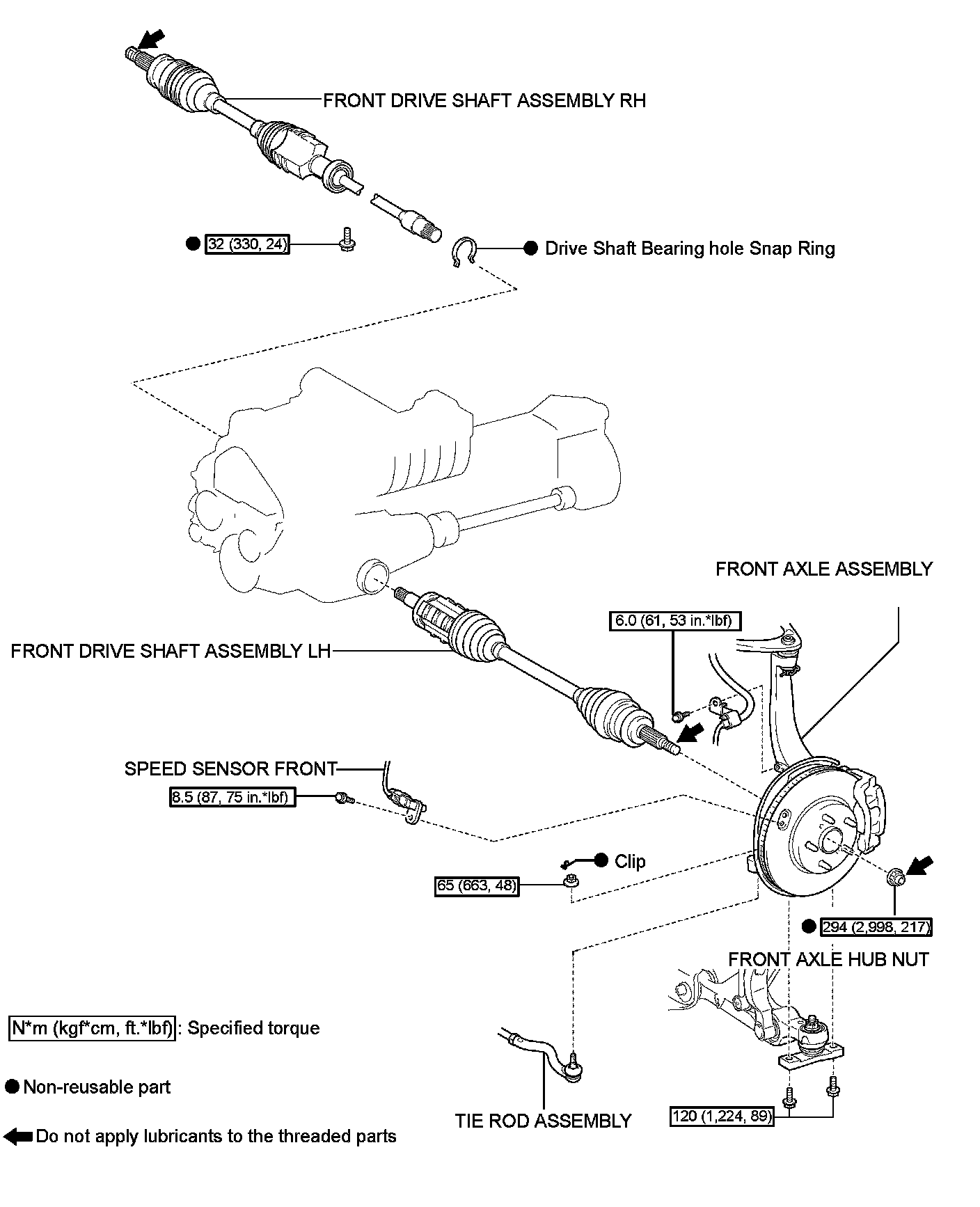

DRIVE SHAFT: FRONT DRIVE SHAFT ASSEMBLY (for 4WD): COMPONENTS

COMPONENTS

ILLUSTRATION
