Torque Specifications








SERVICE SPECIFICATIONS: DIFFERENTIAL: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

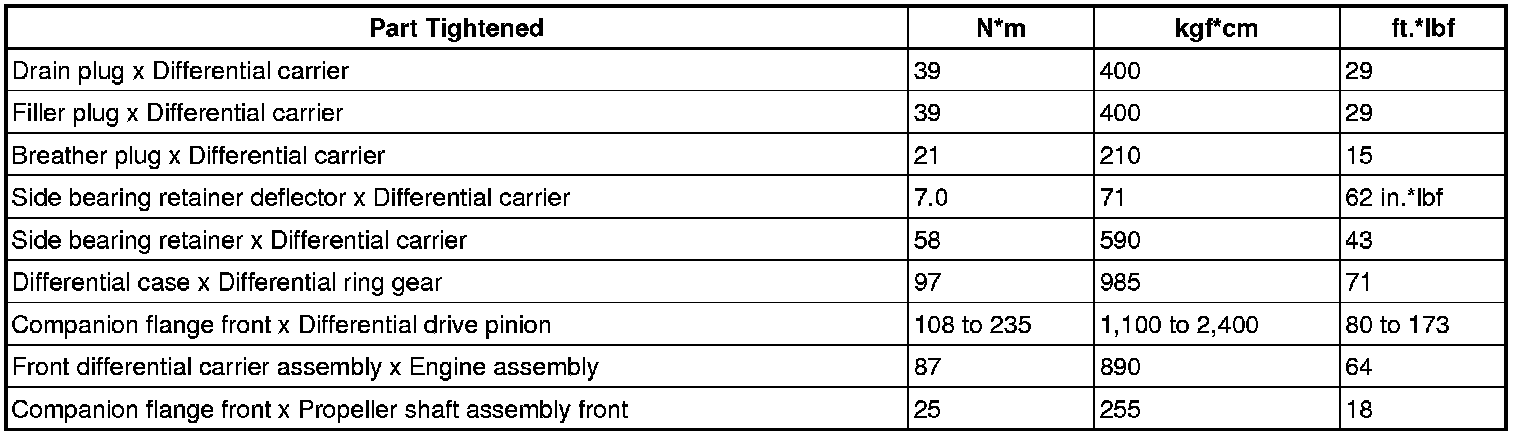

FRONT DIFFERENTIAL CARRIER ASSEMBLY (for 4WD)

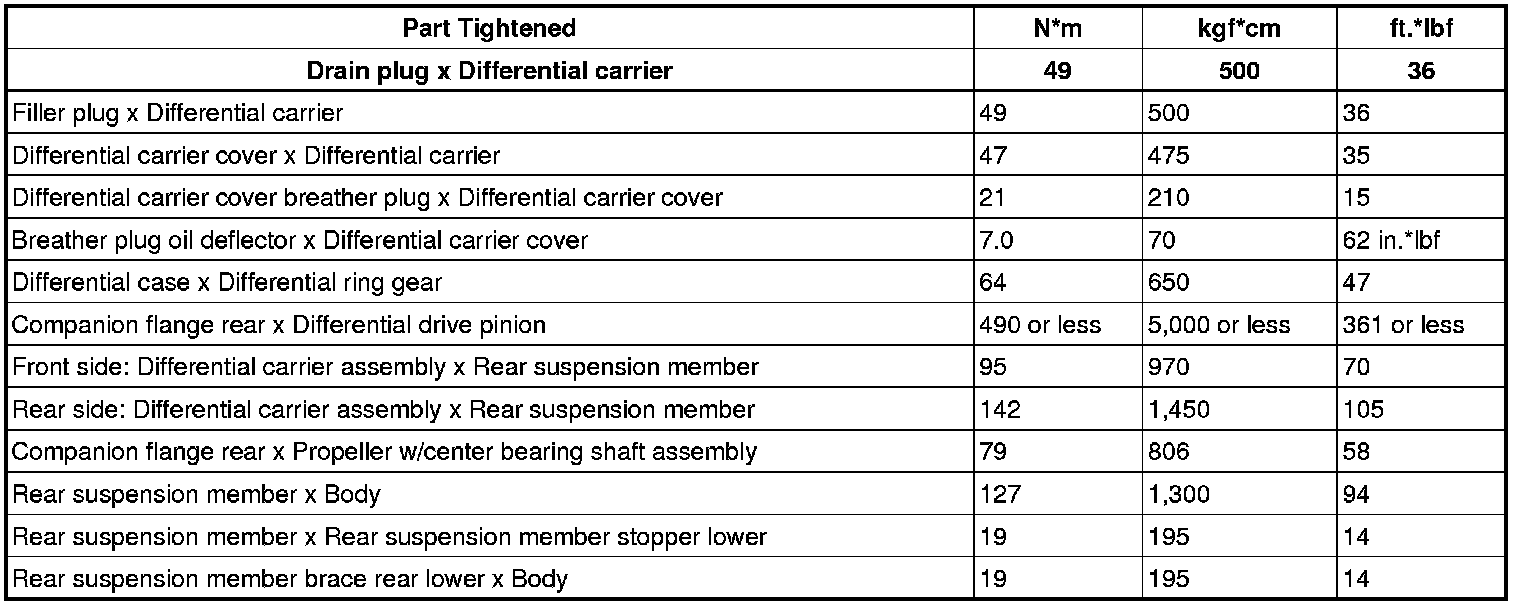

REAR DIFFERENTIAL CARRIER ASSEMBLY
