SUSPENSION: REAR NO. 1 SUSPENSION ARM: INSTALLATION

INSTALLATION

1. TEMPORARILY TIGHTEN REAR NO.1 SUSPENSION ARM

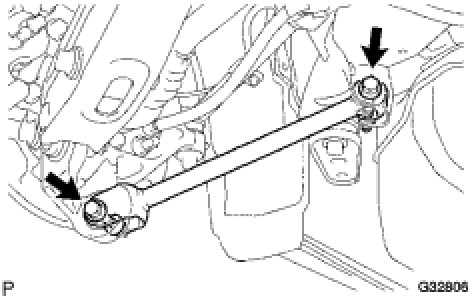

(a) Temporarily install the rear No.1 suspension arm with the 2 bolts and 2 nuts.
2. STABILIZE SUSPENSION

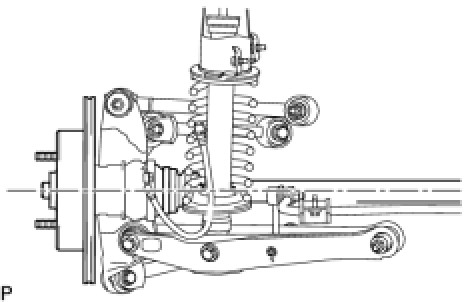

(a) Jack up the axle carrier, with a wooden block placed between the jack and axle carrier, to apply load to the rear suspension so that the rear drive shaft assembly becomes level.
3. FULLY TIGHTEN REAR NO.1 SUSPENSION ARM





(a) Fully tighten the 2 bolts.

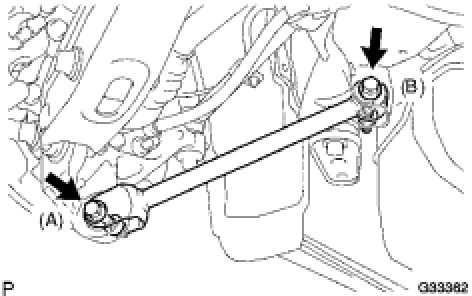

Bolt A - Torque: 95 Nm (970 kgf-cm, 70 ft-lbf)
Bolt B - Torque: 100 Nm (1,020 kgf-cm, 74 ft-lbf)
NOTE:
Turn the bolt while holding the nut.

4. INSTALL REAR FLOOR SIDE MEMBER COVER





(a) Install the rear floor side member cover LH with the 2 screws.
5. INSTALL DIFFERENTIAL NO.2 SUPPORT PROTECTOR Installation
6. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
7. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
Rear Wheel Alignment
8. VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT Adjustments
9. HEADLIGHT AIMING ADJUSTMENT (LOW BEAM) Adjustments
10. HEADLIGHT AIMING ADJUSTMENT (HIGH BEAM) Adjustments
