Symptom Related Diagnostic Procedures

STEERING COLUMN: ELECTRIC STEERING LOCK: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

Inspect the suspected areas in numerical order by referring to the corresponding pages when any of the following symptoms occurs.

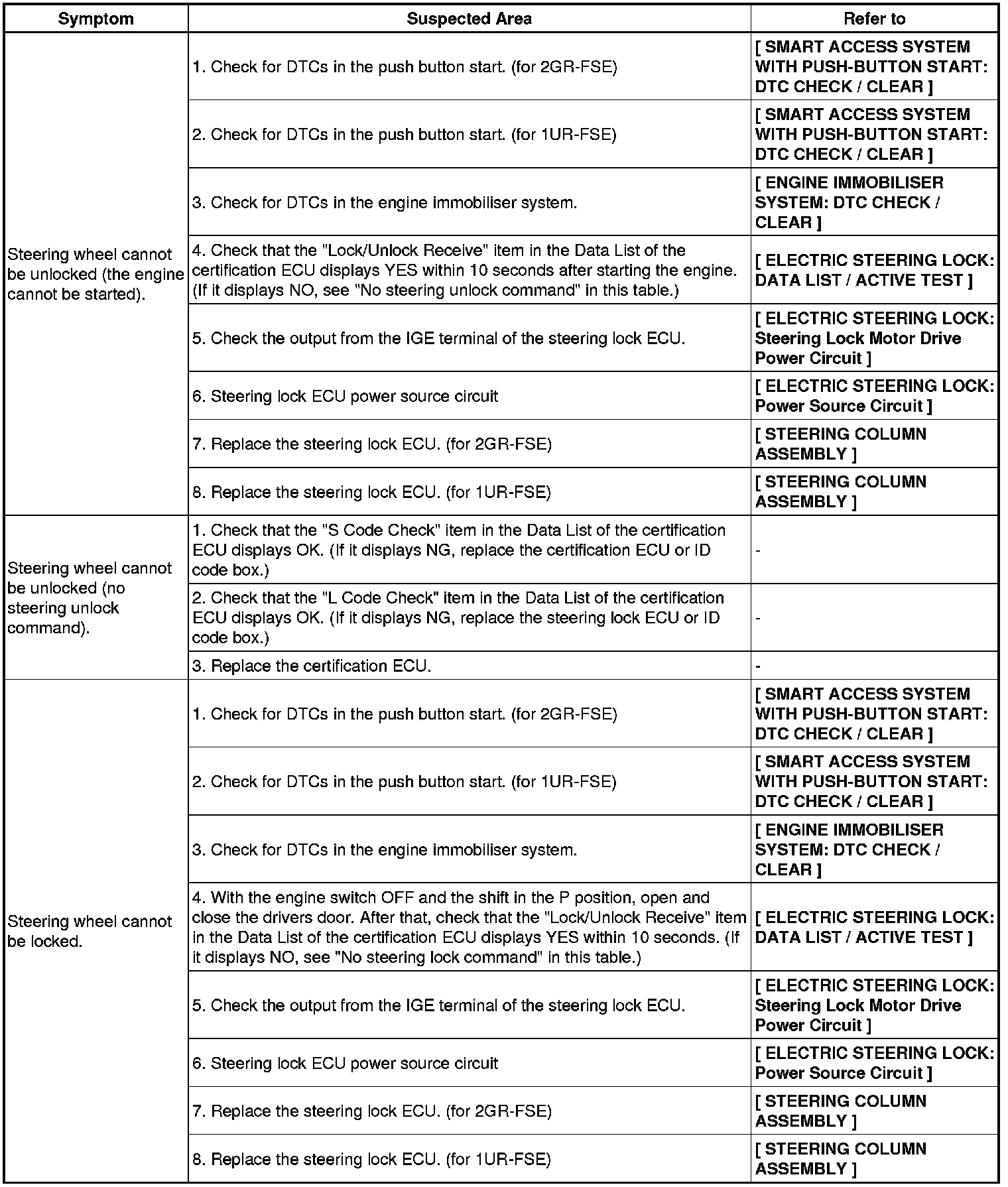

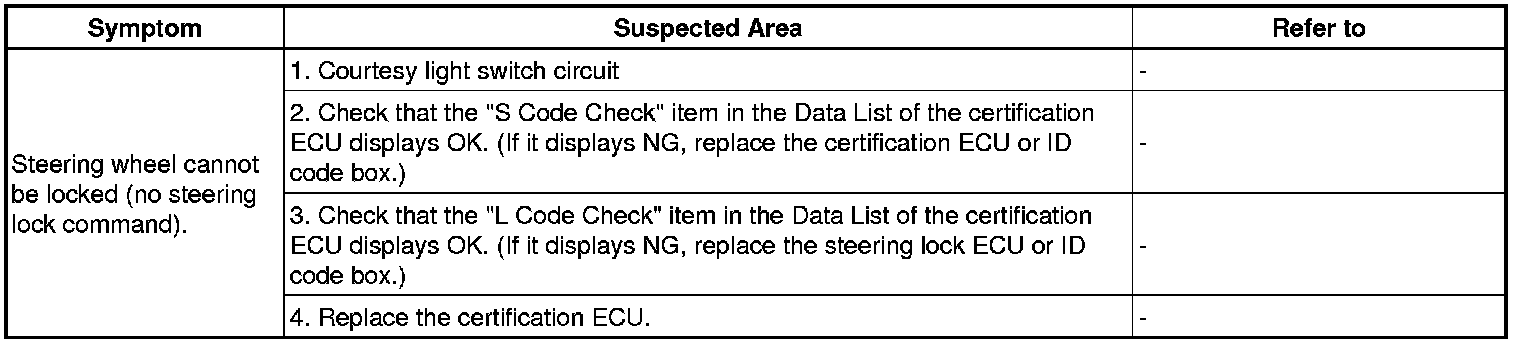

STEERING LOCK FUNCTION

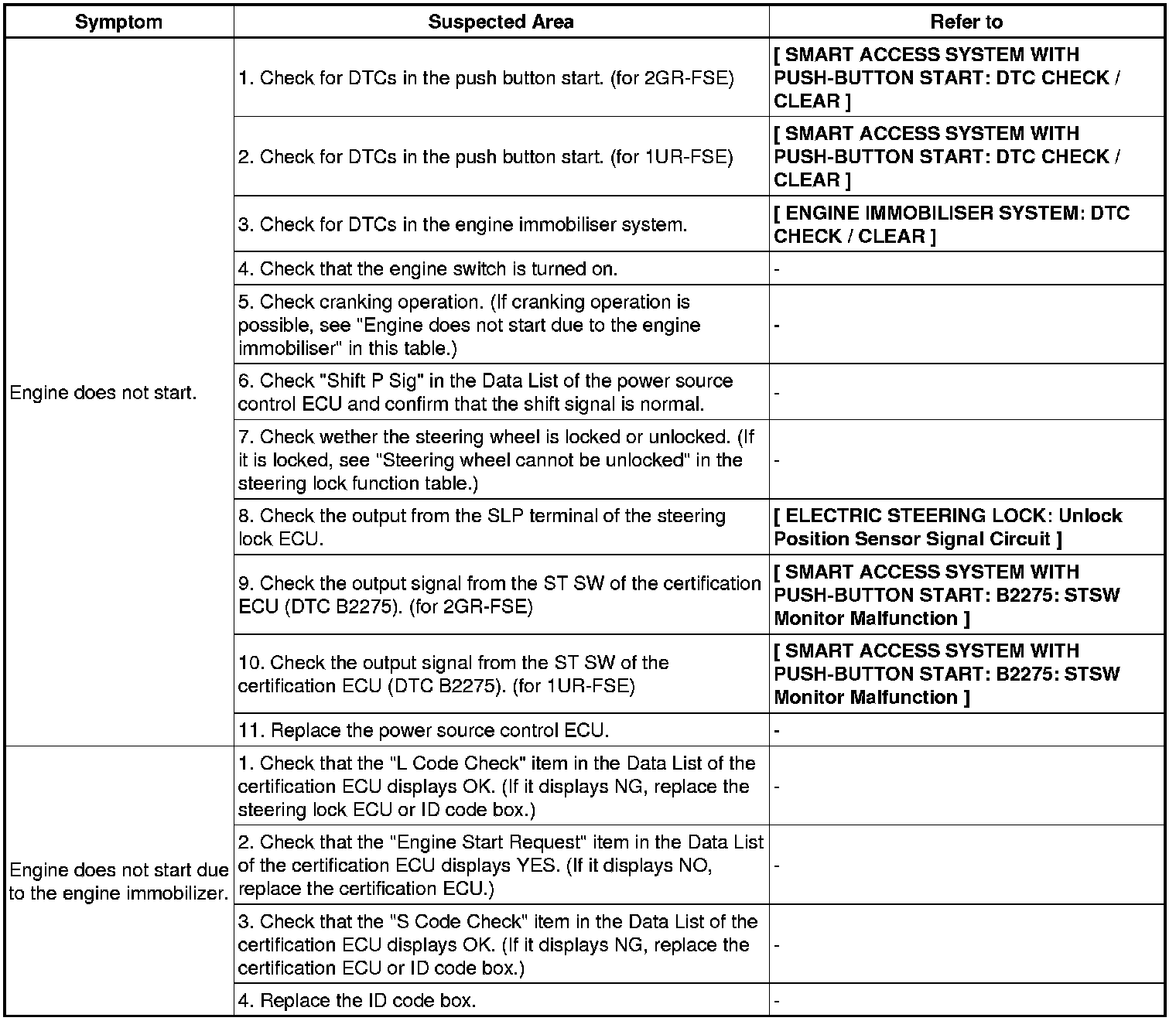

PUSH BUTTON START FUNCTION
