Suspension

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

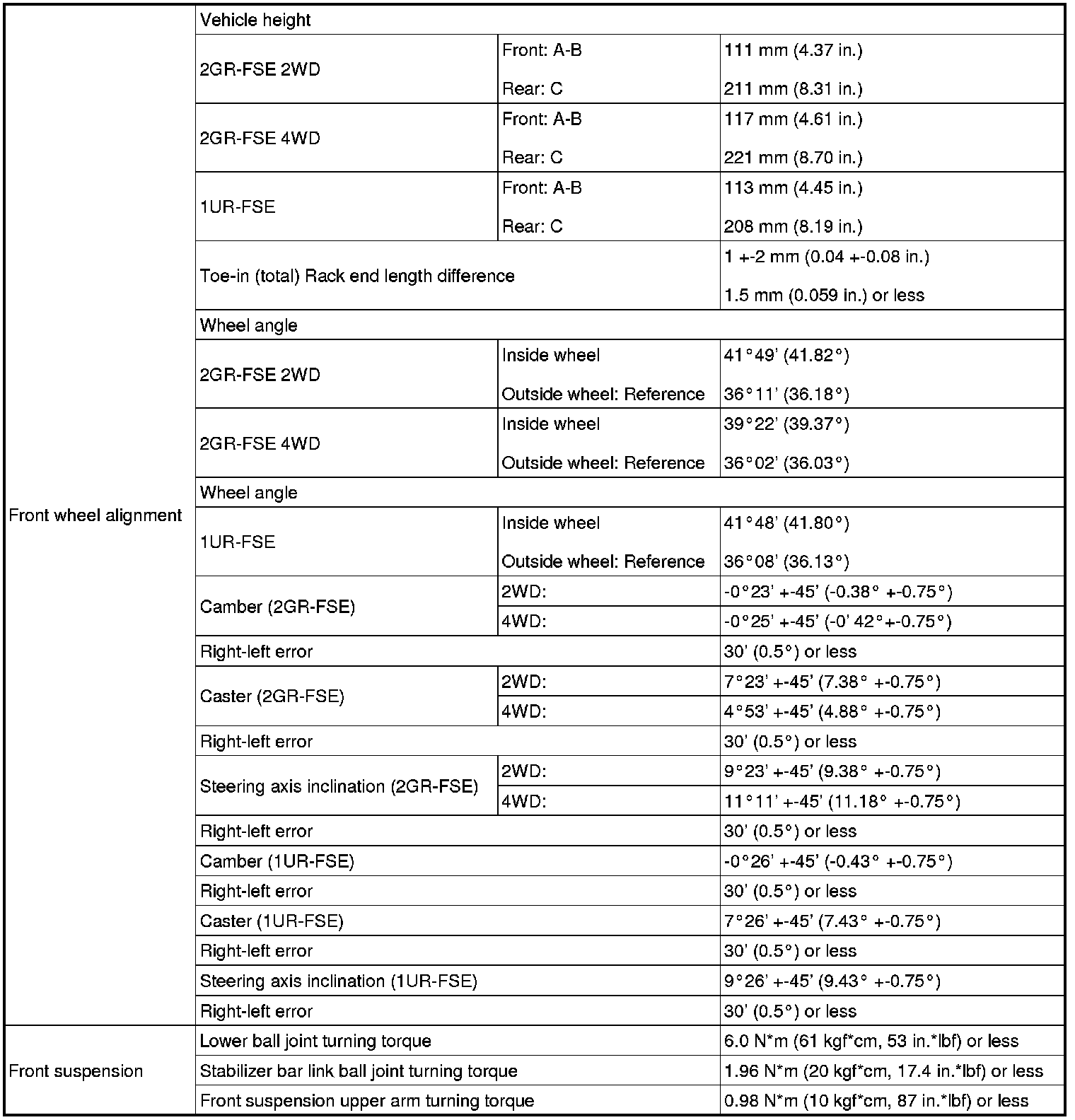

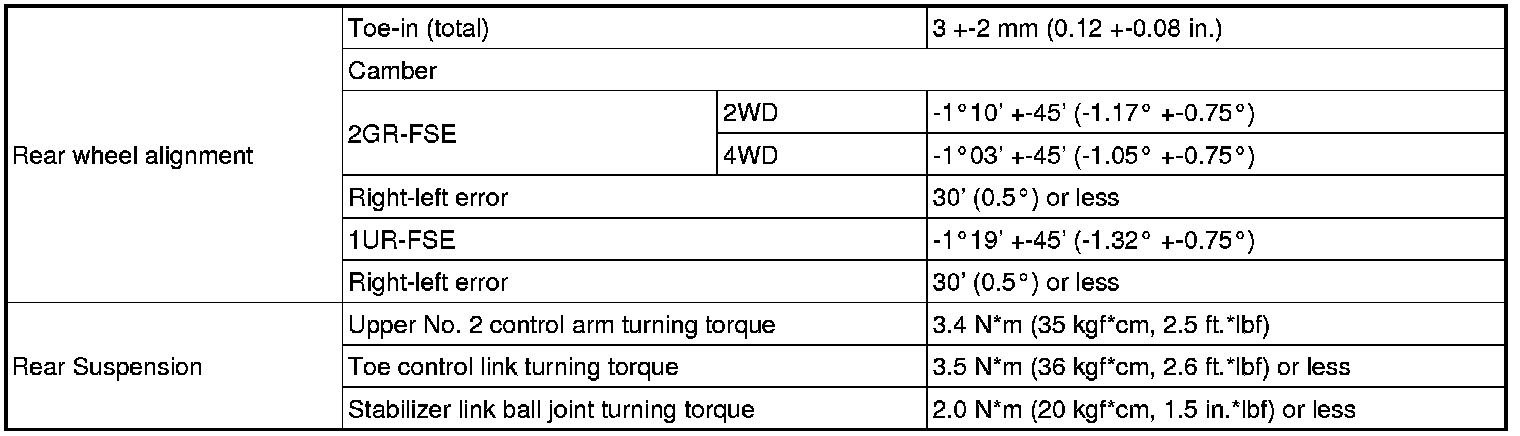

SERVICE DATA





- A: Ground clearance of front wheel center
- B: Ground clearance of front center position of front suspension lower arm front bush installation bolt head
- C: Ground clearance of rear center position of rear No.2 lower arm bush installation bolt screw thread
