Removal

BRAKE CONTROL: FRONT SPEED SENSOR (for 4WD): REMOVAL

REMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE FRONT WHEEL
2. REMOVE SPEED SENSOR FRONT LH

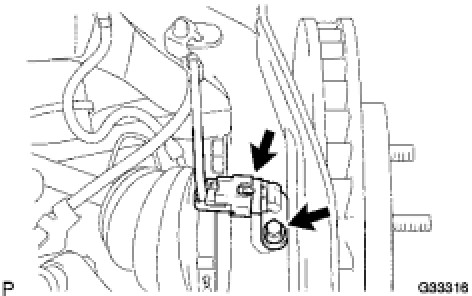

(a) Disconnect the speed sensor front LH connector.





(b) Remove the bolt and speed sensor front LH.
NOTE:
Prevent foreign matter from attaching to the sensor tip.
