Rear Seat Inner Belt Assembly

SEAT BELT: REAR SEAT INNER BELT ASSEMBLY: INSPECTION

INSPECTION





1. INSPECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
NOTE:
Do not disassemble the retractor.

(a) Before installing the seat belt, check the ELR.

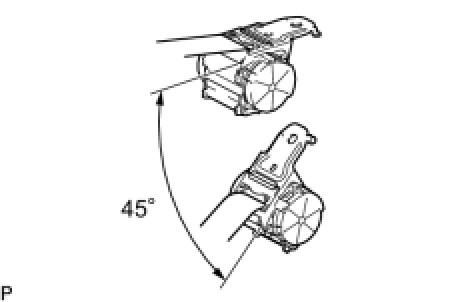

(1) When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.
If the operation is not as specified, replace the seat belt assembly.
(b) Check the fastening function of the child restraint system.
NOTE:
The check should be performed with the outer belt installed.
(1) When the belt is pulled out fully, the belt should automatically start to retract.
(2) After the belt has fully retracted, the belt should be able to be pulled out and retracted again.
If the operation is not as specified, replace the belt assembly.
